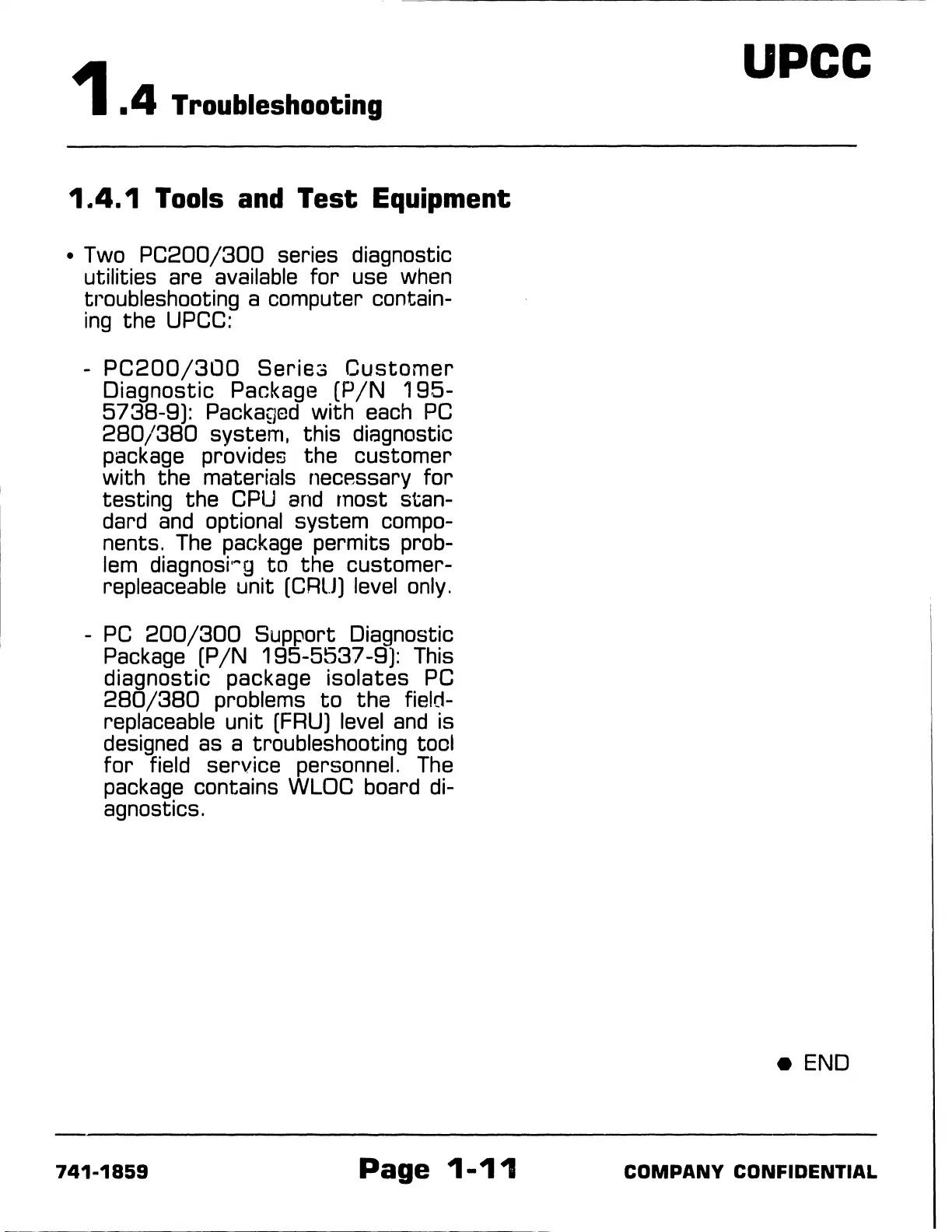

1. 4 Troubleshooting
1.4.1 Tools and Test Equipment
• Two PC200/300 series diagnostic
utilities are available for use when
troubleshooting a computer contain-
ing the UPCC:
- PC200/300 Serie3 Customer
Diagnostic Package (P /N 195-
5738-9): Packaged with each PC
280/380 system, this diagnostic
package provides the customer
with the materials necessary for
testing the CPU and most stan-
dard and optional system compo-
nents. The package permits prob-
lem diagnosi·"'g to the customer-
repleaceable unit (CRU) level only.
- PC 200/300 Support Diagnostic
Package (P /N 195-5537-9): This
diagnostic package isolates PC
280/380 problems to the field-
replaceable unit (FRU) level and is
designed as a troubleshooting tool
for field service personnel. The
package contains WLOC board di-
agnostics.
741-1859
Page 1-11
UPCC
e END
