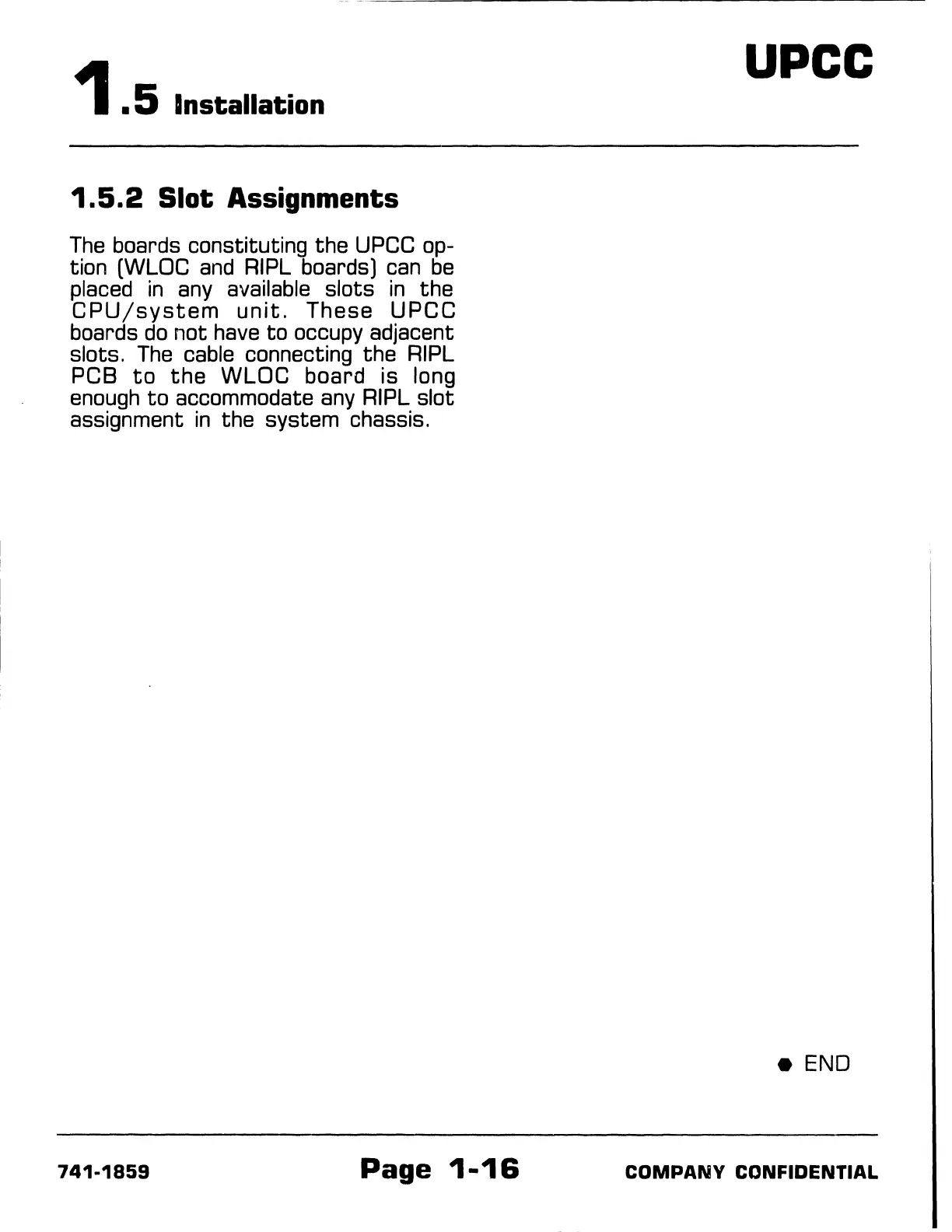

1. 5 Installation
1.5.2 Slot Assignments
The boards constituting the UPCC op-
tion (WLOC and RIPL boards) can be
placed in any available slots in the
CPU/system unit. These UPCC
boards do not have to occupy adjacent
slots. The cable connecting the RIPL
PCB to the WLOC board is long
enough to accommodate any RIPL slot
assignment in the system chassis.
741-1859 Page 1-16
UPCC
e END
