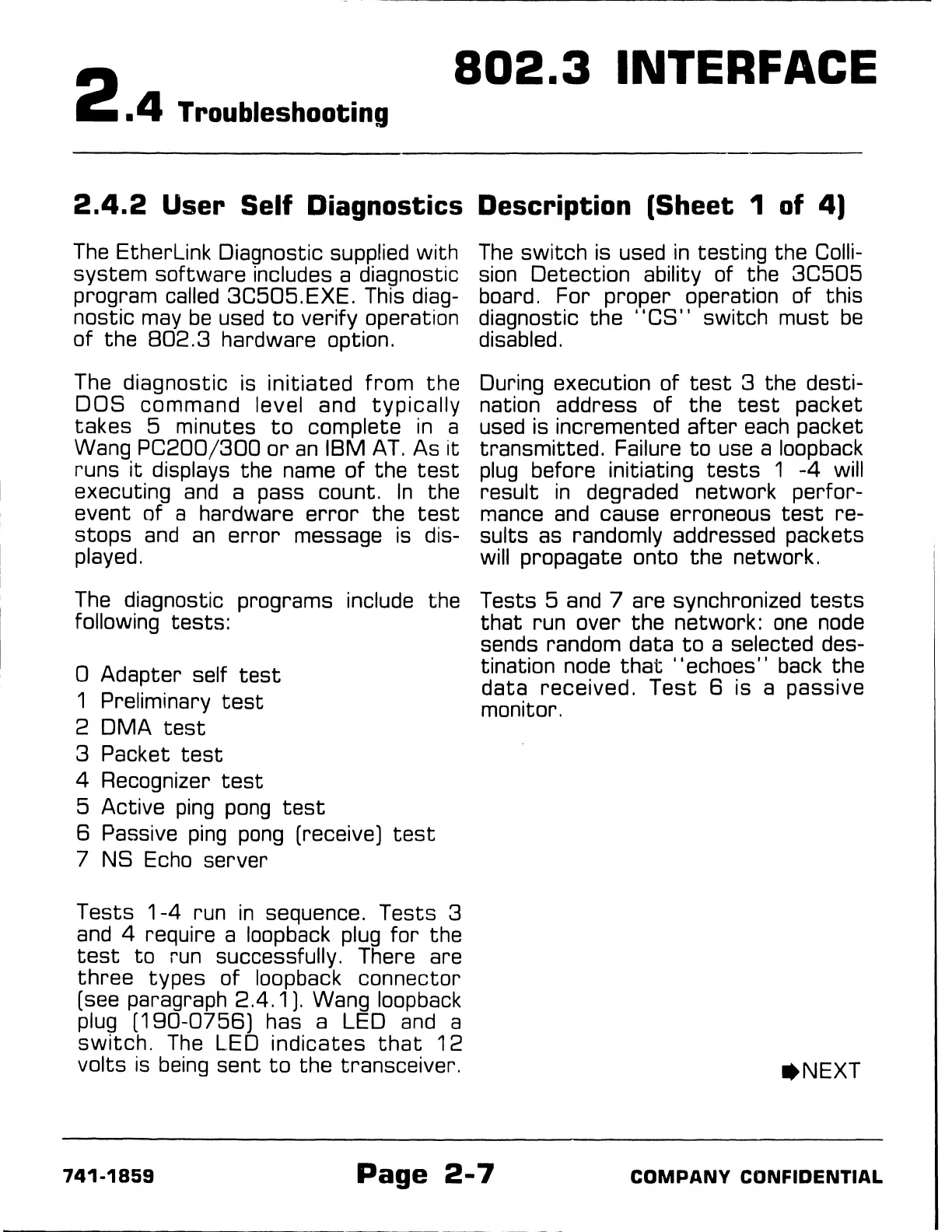

2
.4
Troubleshooting
802.3
INTERFACE
2.4.2
User Self Diagnostics Description (Sheet 1
of
4)
The
Etherlink
Diagnostic supplied with
system
software
includes a diagnostic
program called 3C505.EXE. This diag-
nostic may
be
used
to
verify operation
of
the
802.
3 hardware option.
The diagnostic is
initiated
from
the
DOS
command level and
typically
takes
5 minutes
to
complete
in
a
Wang
PC200/300
or
an
IBM
AT.
As
it
runs
it
displays the name
of
the
test
executing
and
a pass count.
In
the
event
of
a hardware
error
the
test
stops
and
an
error
message
is
dis-
played.
The
diagnostic programs include the
following
tests:
0 Adapter self
test
1 Preliminary
test
2 OMA
test
3 Packet
test
4 Recognizer
test
5 Active
ping
pong
test
6 Passive
ping
pong
(receive)
test
7 NS Echo server
Tests
1-4
run
in
sequence. Tests 3
and
4 require a loopback plug
for
the
test
to
run successfully. There are
three
types
of
loopback connector
(see paragraph 2.4.1). Wang loopback
plug
(190-0756)
has a LED
and
a
switch.
The
LED
indicates
that
12
volts
is
being
sent
to
the transceiver.
The
switch
is used
in
testing the Colli-
sion Detection ability of the
3C505
board. For proper operation
of
this
diagnostic
the
''CS''
switch
must
be
disabled.
During execution
of
test
3 the desti-
nation address of the
test
packet
used is incremented
after
each
packet
transmitted. Failure
to
use a loopback
plug
before initiating
tests
1
-4
will
result
in
degraded network
perfor-
mance
and
cause erroneous
test
re-
sults as randomly addressed packets
will propagate onto the network.
Tests 5
and
7 are synchronized
tests
that
run over the network:
one
node
sends random data
to
a selected des-
tination node
that
''echoes'' back
the
data
received.
Test
6 is a passive
monitor.
741-1859
Page
2-7
COMPANY
CONFIDENTIAL
