2 . 5 Installation
802.3 INTERFACE

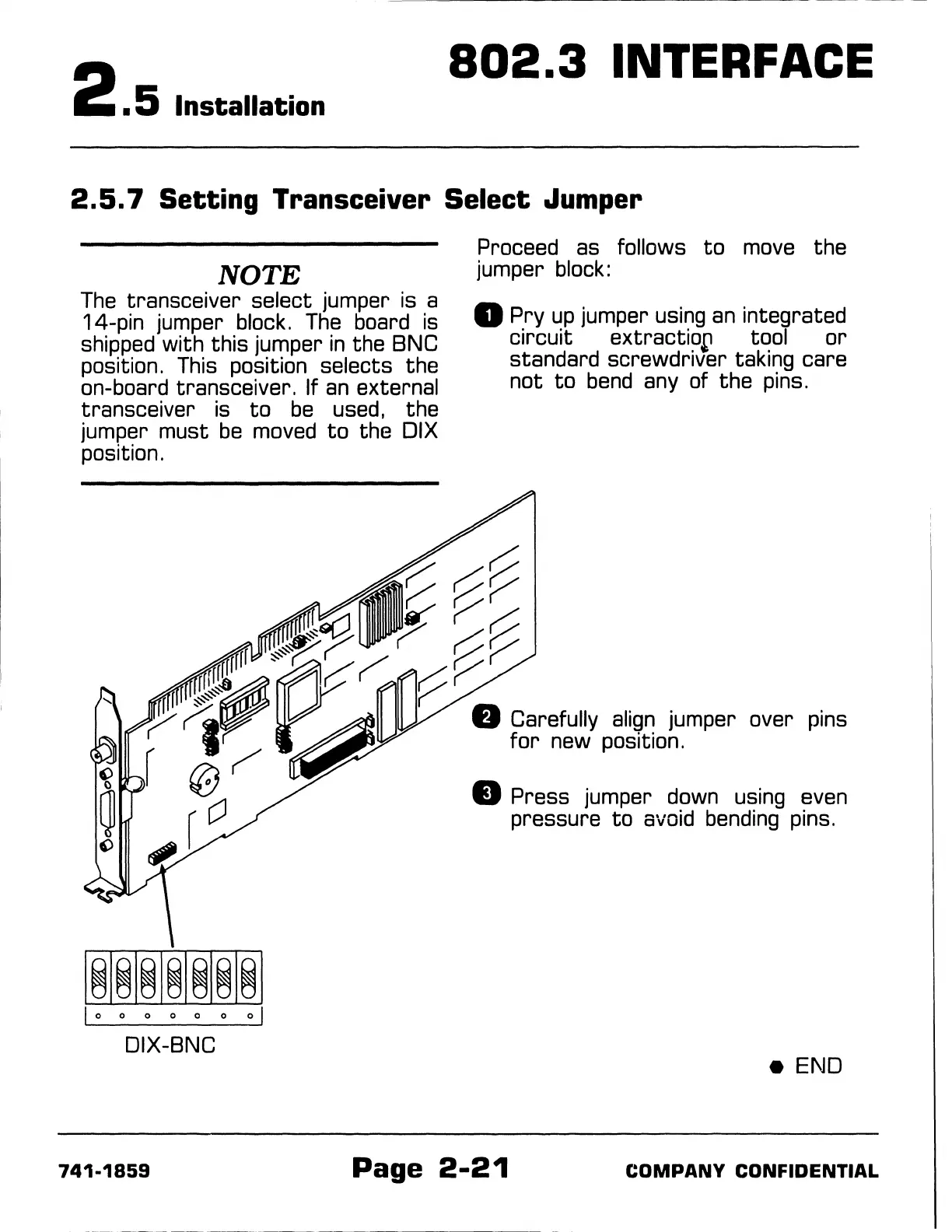

2.5. 7 Setting Transceiver Select Jumper
NOTE
The transceiver select jumper is a
14-pin jumper block. The board is
shipped with this jumper in the BNC
position. This position selects the
on-board transceiver. If an external
transceiver is to be used, the
jumper must be moved to the DIX
position.
l~l~l~l~l~l~l~I
fo o o o o o ol
DIX-BNC
Proceed as follows to move the
jumper block:
D Pry up jumper using an integrated
circuit extractio., tool or
standard screwdriver taking care
not to bend any of the pins.
over pins
II Press jumper down using even
pressure to avoid bending pins.
e END
741-1859
Page 2-21
