Wang 200 Series - Remote Initial Program Load (RIPL) Board

1. 2 Settings
UPCC

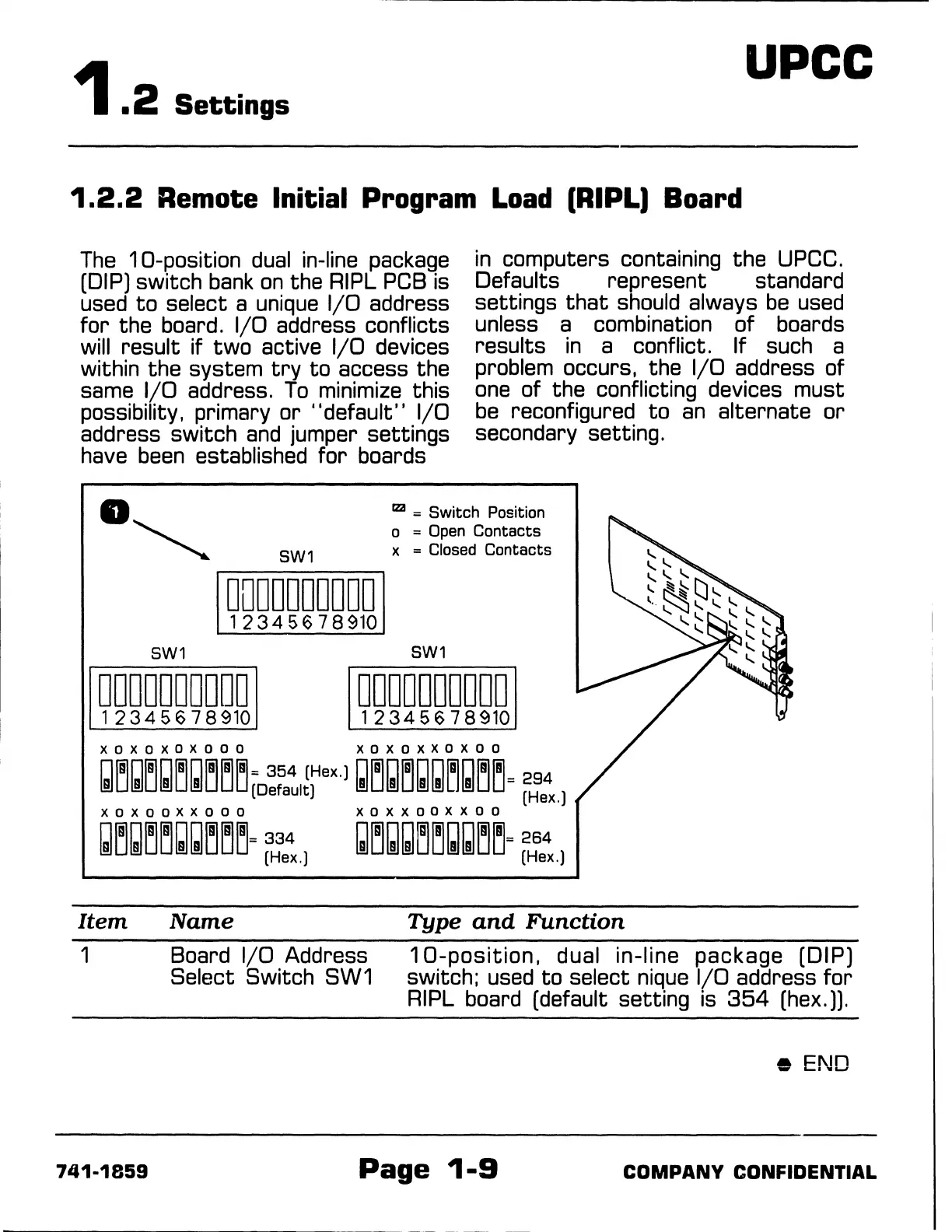

1.2.2 Remote Initial Program Load (RIPL) Board
The 1 0-position dual in-line package
(DIP) switch bank on the RIPL PCB is
used to select a unique 1/0 address
for the board. 1/0 address conflicts
will result if two active 1/0 devices
within the system try to access the
same 1/0 address. To minimize this
possibility, primary or "default" 1/0
address switch and jumper settings
have been established for boards
in computers containing the UPCC.
Defaults represent standard
settings that should always be used
unless a combination of boards
results in a conflict. If such a
problem occurs, the 1/0 address of
one of the conflicting devices must
be reconfigured to an alternate or
secondary setting.
SW1
m = Switch Position
o = Open Contacts
x = Closed Contacts
DDDDDDDDDD
123 4 5 6 7 8 910
SW1
SW1
DDDDDDDDDD DODD DODD DD
12345678910 1 2 3 4 5 6 7 8 910
xoxoxoxooo xoxoxxoxoo
Q~~~~~~~~~=[D;;a~l~)Hex.) Q~Q~QQ~Q~~= 294
[Hex.)
xoxooxxooo xoxxooxxoo
~~~~~~Q~~~= ~~e~.) Q~Q~~~QQ~~= ~e~.)
Item Name Type and Function
1 Board 1/0 Address 10-position, dual in-line package (DIP)
741-1859
Select Switch SW1 switch: used to select nique 1/0 address for
RIPL board (default setting is 354 (hex.)).
e END
Page 1-9
COMPANY CONFIDENTIAL
