1 . 5 Installation
UPCC

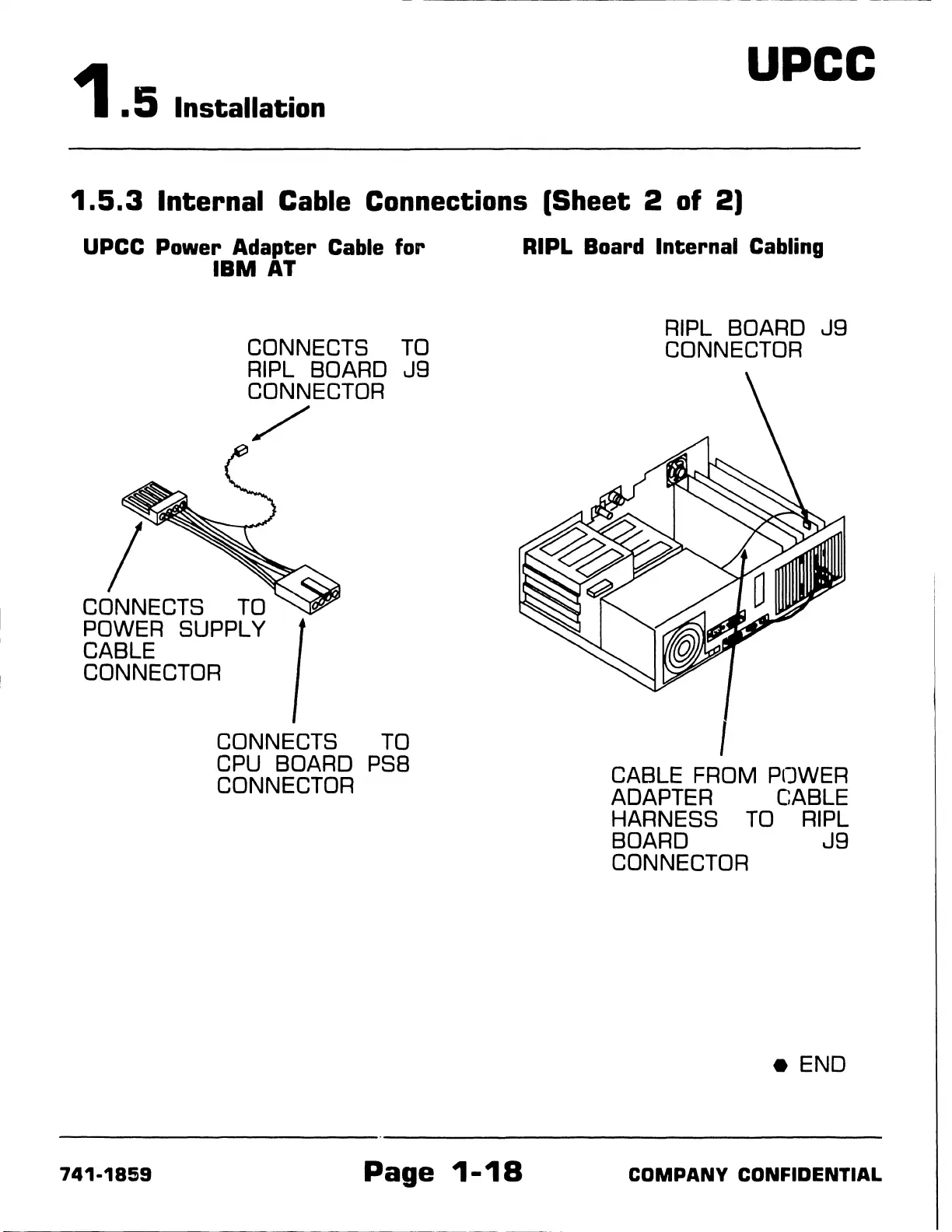

1.5.3 Internal Cable Connections (Sheet 2 of 2)
UPCC Power Adapter Cable for
IBM AT
CONNECTS TD
RIPL BOARD JS
CONNECTOR
/
CONNECTS TO
POWER SUPPLY
CABLE
CONNECTOR
741-1859
CONNECTS TO
CPU BOARD PSS
CONNECTOR
Page 1-18
RIPL Board Internal Cabling
RIPL BOARD JS
CONNECTOR
I
CABLE FROM POWER
ADAPTER CABLE
HARNESS TO RIPL
BOARD JS
CONNECTOR
e END
