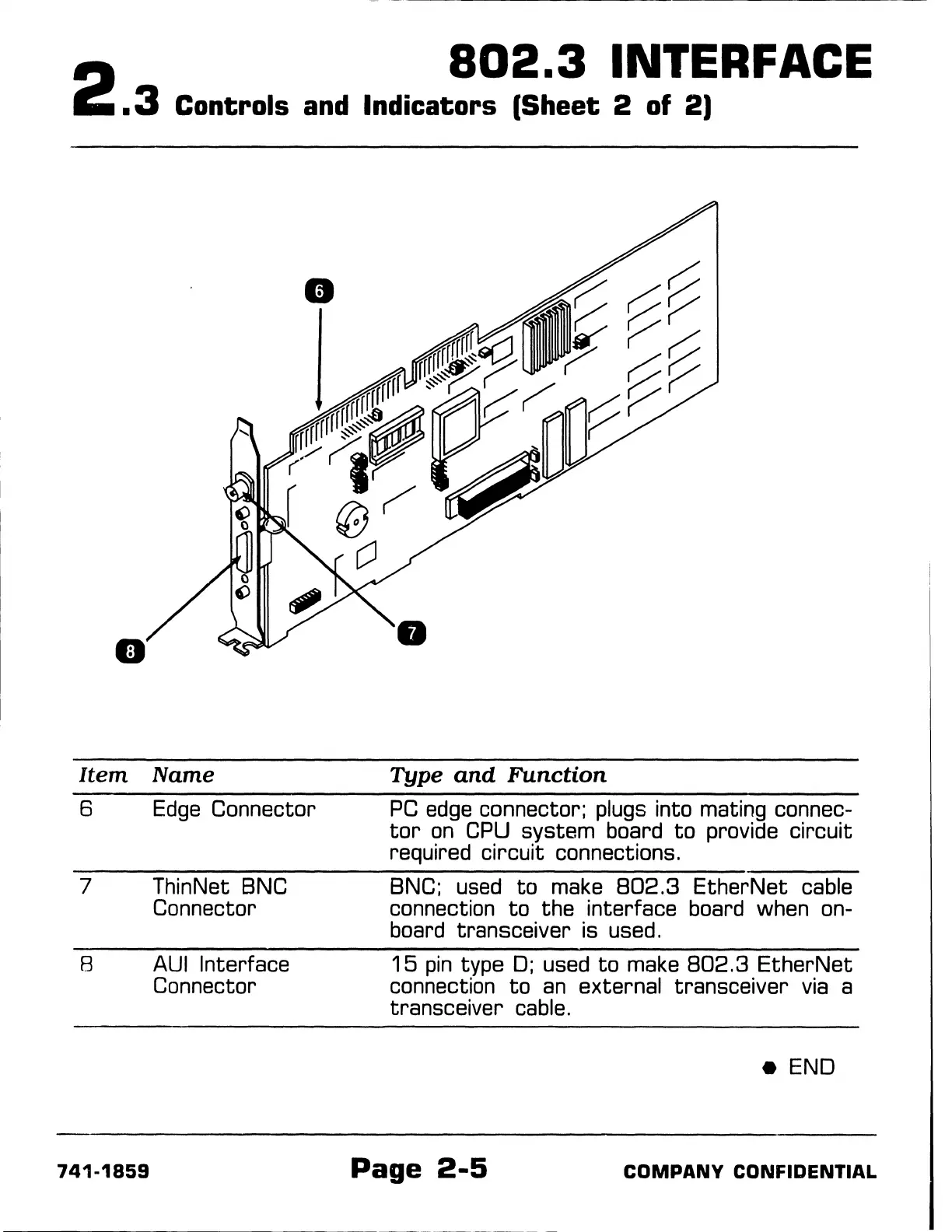

802.3 INTERFACE
. 3 Controls and Indicators (Sheet 2 of 2)
Item Name
6 Edge Connector
7 ThinNet BNC
Connector
8
741-1859
AUi Interface
Connector
Type and Function
PC edge connector: plugs into mating connec-
tor on CPU system board to provide circuit
required circuit connections.
BNC: used to make 802.3 EtherNet cable
connection to the interface board when on-
board transceiver is used.
15 pin type D: used to make 802.3 EtherNet
connection to an external transceiver via a
transceiver cable.
