2.4
802.3 INTERFACE
l'roubleshooting

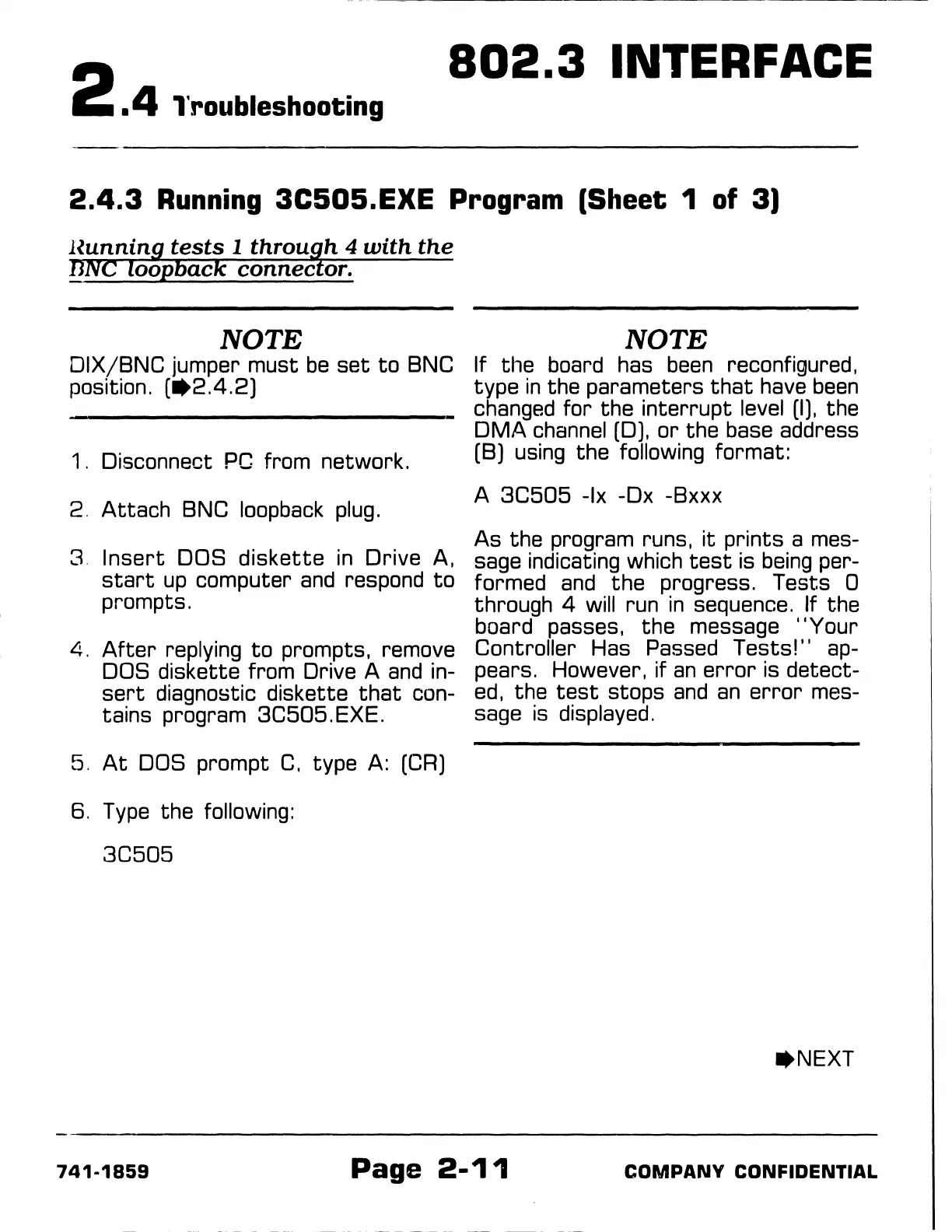

2.4.3 Running 3C505.EXE Program (Sheet 1 of 3)
Hunning tests 1 throu~h 4 with the
DNC loopback connec or.
NOTE NOTE
DIX/BNC jumper must be set to BNC If the board has been reconfigured,
position. (•2.4.2) type in the parameters that have been
-------------- changed for the interrupt level (I), the
1 . Disconnect PC from network.
2. Attach BNC loopback plug.
3. Insert DOS diskette in Drive A,
start up computer and respond to
prompts.
4. After replying to prompts, remove
DOS diskette from Drive A and in-
sert diagnostic diskette that con-
tains program 3C505. EXE.
5. At DOS prompt C, type A: (CR)
6. Type the following:
3C505
OMA channel (DJ, or the base address
(8) using the following format:
A 3C505 -Ix -Ox -Bxxx
As the program runs, it prints a mes-
sage indicating which test is being per-
formed and the progress. Tests 0
through 4 will run in sequence. If the
board passes, the message "Your
Controller Has Passed Tests!" ap-
pears. However, if an error is detect-
ed, the test stops and an error mes-
sage is displayed.
