2Installation
1

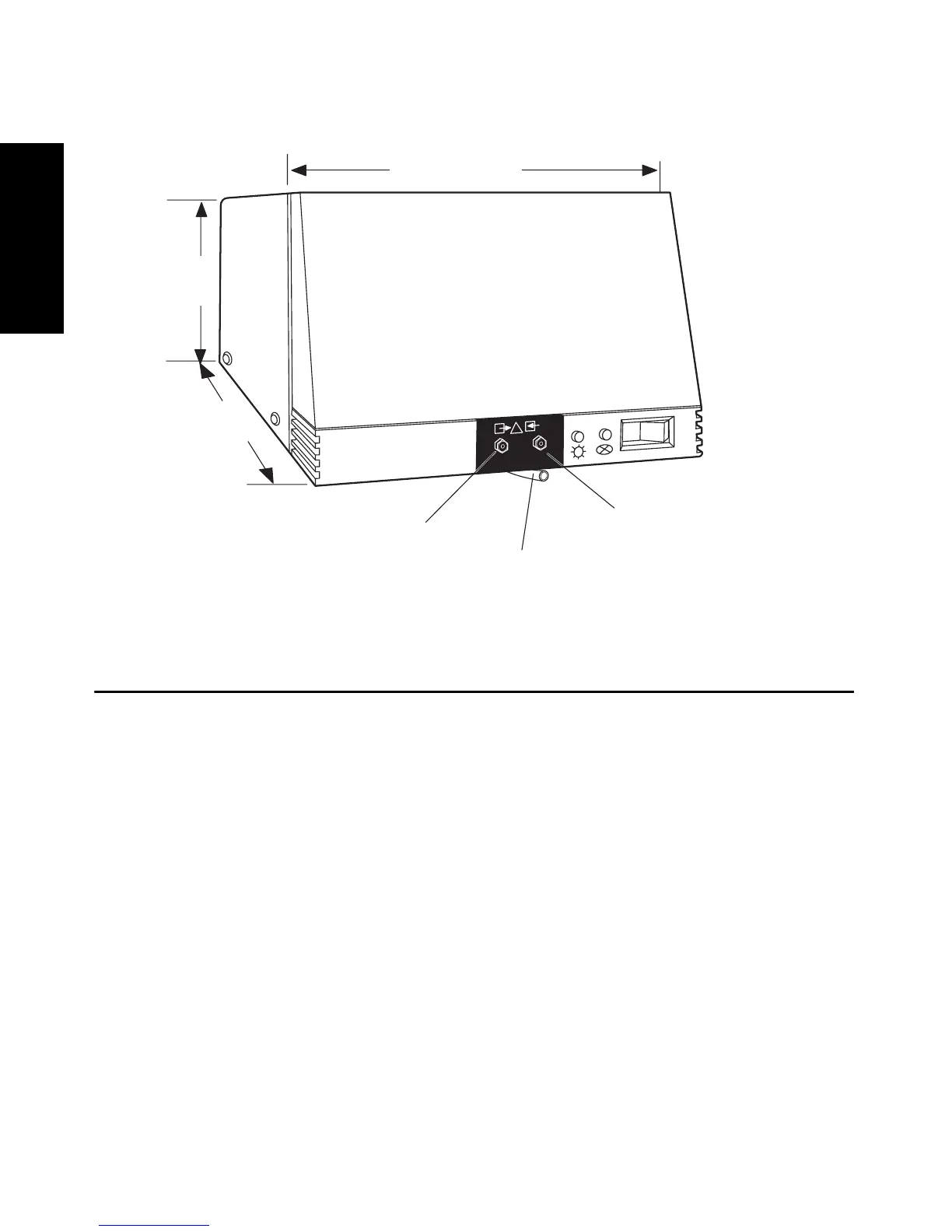

Figure 1-1 Waters 2996 PDA Detector Dimensions
1.2 Power Connections
Ensure that power connections for the 2996 PDA Detector are made according to the
procedures that follow.
Operating Voltage
The 2996 PDA Detector has a universal input power supply that requires no voltage
adjustment. The electrical power requirements for the Waters 2996 PDA Detector are:
• Voltage range: 100 to 240 Vac
• Total power: 100 VA
• Frequency range: 50 to 60 Hz
Fuses
The 2996 PDA Detector is shipped with fuses rated for North American operation. If you
operate the 2996 PDA Detector in another location, install the IEC-rated fuses (supplied in
LAMP
WATERS 996
Photodiode Array
11.5 in. (29 cm)
8.5 in.
(22 cm)
24 in.
(61 cm)
Sample Outlet
Drain Line
Sample Inlet
To Next Page
