Flow Cell Maintenance 23
3
• HPLC-grade methanol
• Belleville spring washer
• Flow cell gasket
• Powder-free gloves
Procedure
To disassemble and clean the flow cell (and lenses):
1. Use the TORX T10 screwdriver to remove the three screws that secure one of the
lens holder assemblies (Figure 3-3).

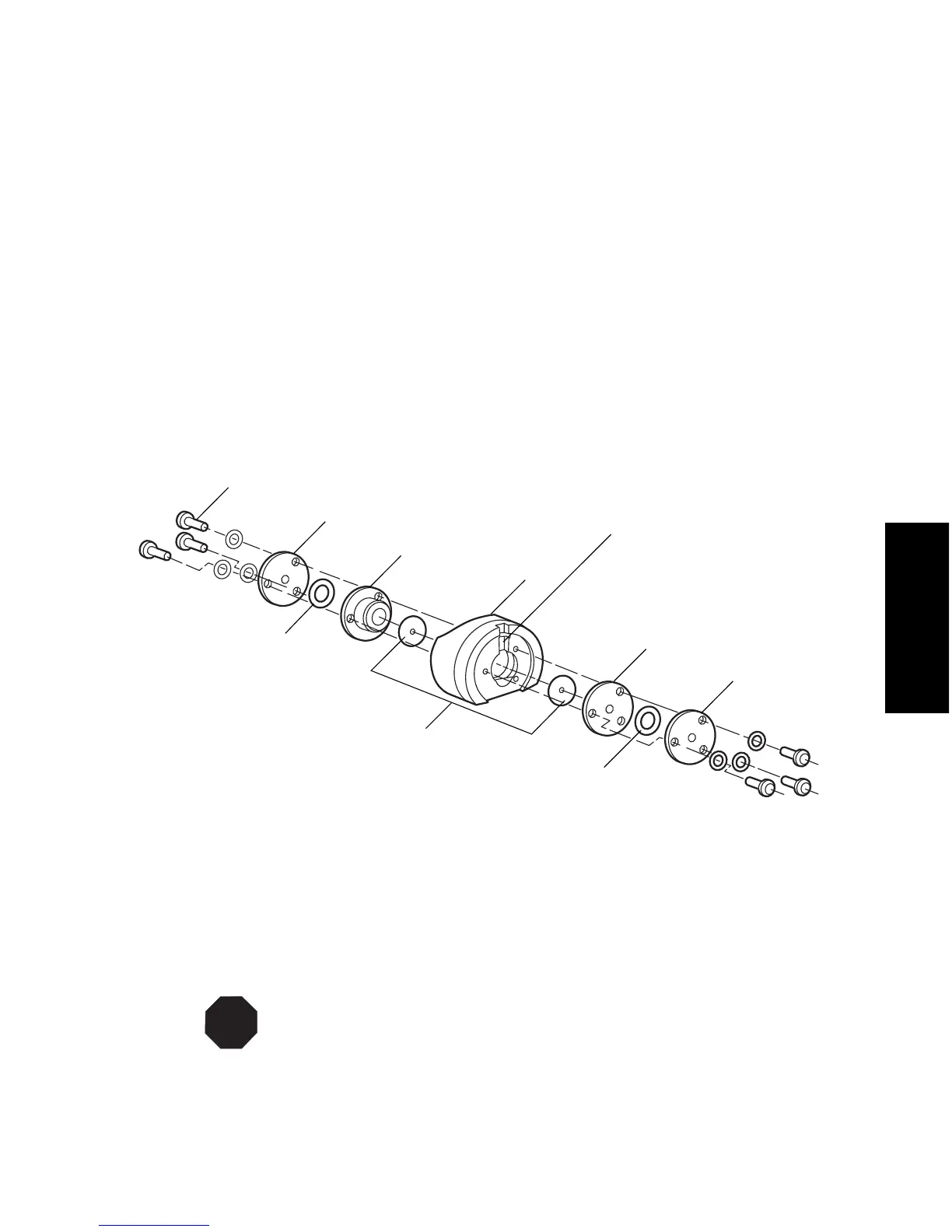

Figure 3-3 Disassembling the Flow Cell
2. Use the small, flat-blade screwdriver to gently pry the lens assembly from the flow
cell body at the slots.
3. Use a lens tissue or a nonparticulating swab to wipe the lens with methanol.
STOP
Attention: Solvents other than methanol may damage a disassembled flow
cell. In normal use, the gasket protects the lens holder from solvents.
TP01464
Gasket
Flow Cell Disk
Lens Assembly
Flow Cell Disk
Belleville
Spring
Washer
Lens Assembly
Flow Cell
Body
Spring
Washer
Slot for
Removing
Lens
Assembly
Screws
To Next Page
