Waters 2996 - Disassembling and Cleaning the Flow Cell; Flow Cell and Fluidic Connections Assemblies

22 Maintenance
3

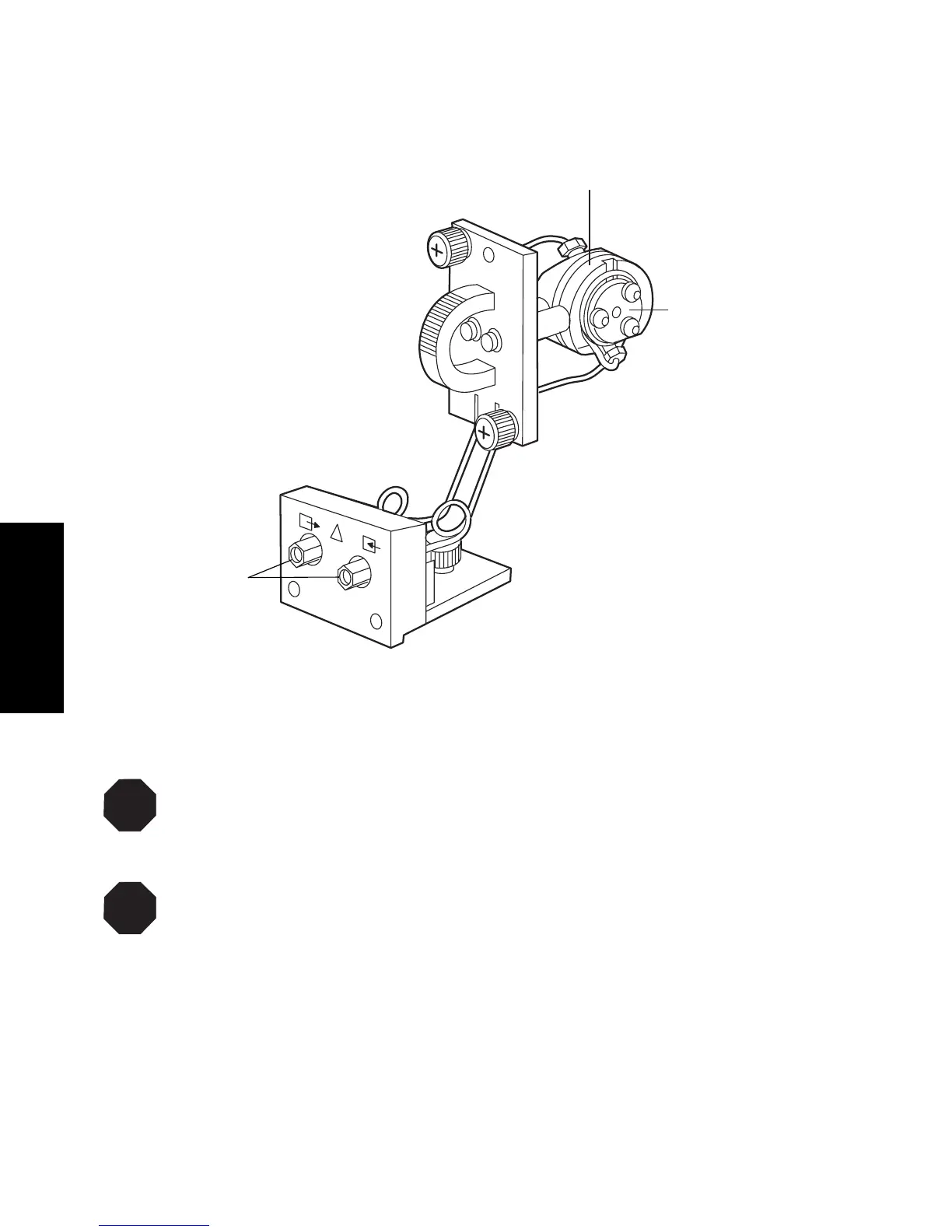

Figure 3-2 Flow Cell and Fluidic Connections Assemblies
3.1.3 Disassembling and Cleaning the Flow Cell
Required Materials
• TORX™ T10 screwdriver
• Small, flat-blade screwdriver
• Lens tissue or nonparticulating swab
STOP
Attention: The lens surface finish and the alignment of the lenses are critical to the
performance of the 2996 Detector. Be careful not to touch or damage the lenses and the
lens holders.
STOP
Attention: To prevent lens contamination, use powder-free gloves when disassembling,
inspecting, cleaning, or replacing parts within the flow cell or when removing or replacing
the flow cell within its assembly.
TP01463
Flow Cell Body
Lens Holder
Assembly
Fluidic
Connections
Bracket
