3-6 Using the Waters 515 Pump
Menu items area
The menu items area provides access to all pump operating parameters. The
figure below shows a menu tree for all 515 pump parameters accessible in this
area of the display. Use the Up, Down, Edit/Enter, and Menu keys, as
necessary, to navigate through the parameters (see table titled “Keypad functions”
on page 3-4 for keypad functions). Functions and details for all pump parameters
are provided in the table titled “515 pump operating parameters” on page 3-7.

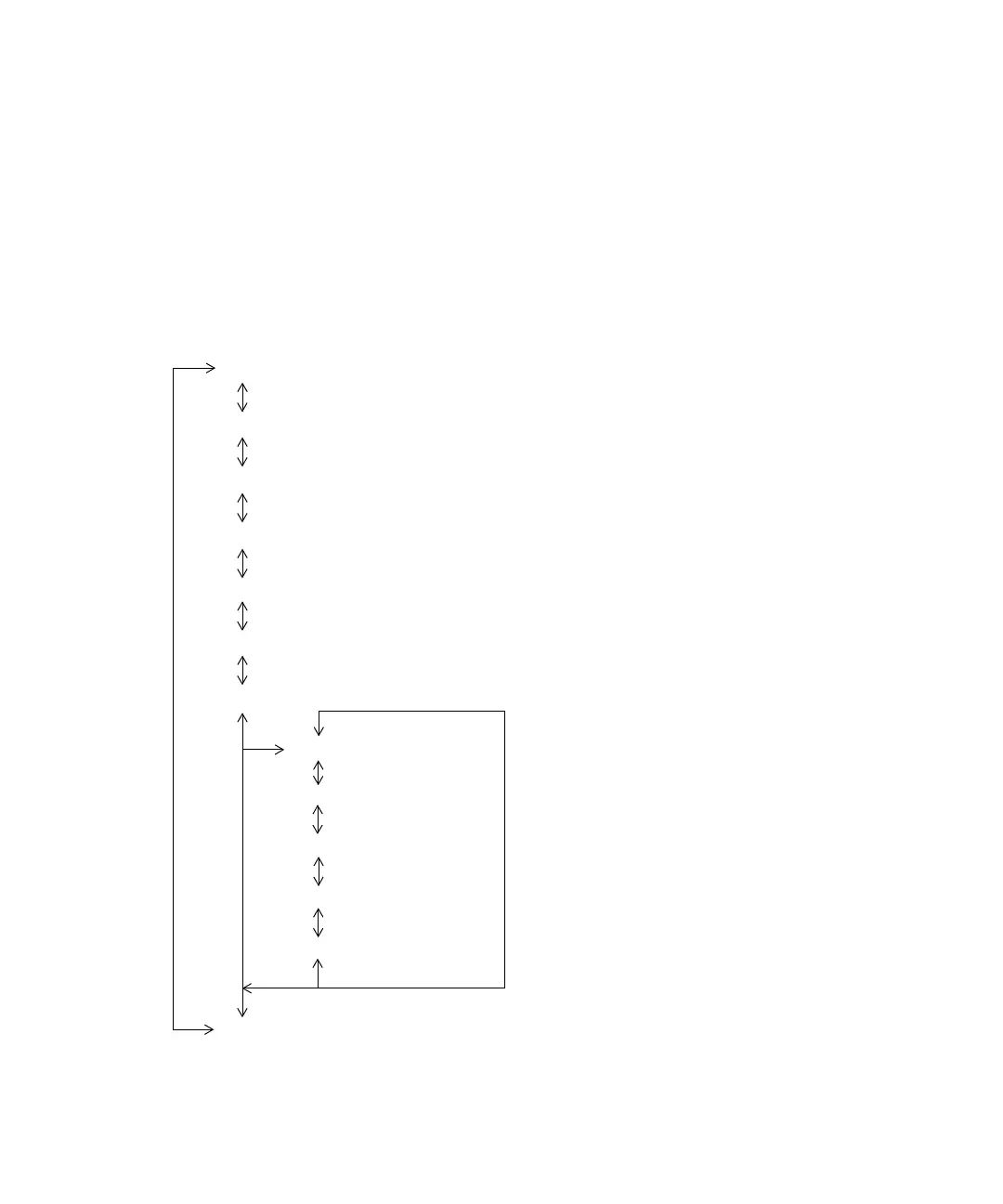

515 pump operating parameters menu tree
Flow (first parameter to appear when pump is powered on)
Purge
HPL
(high-pressure limit)
LPL (low-pressure limit)
Mode (local or remote)
Comp (compressibility factor)
Calibrate
0 Pressure
Head Size
Flow Rate Calibration
Strokes on Unit
Strokes on Seals
Unit
To Next Page
