Waters ACQUITY UPLC I-Class IVD - Page 79

Connecting to the electricity source
July 7, 2014, 715003736IVD Rev. C 79

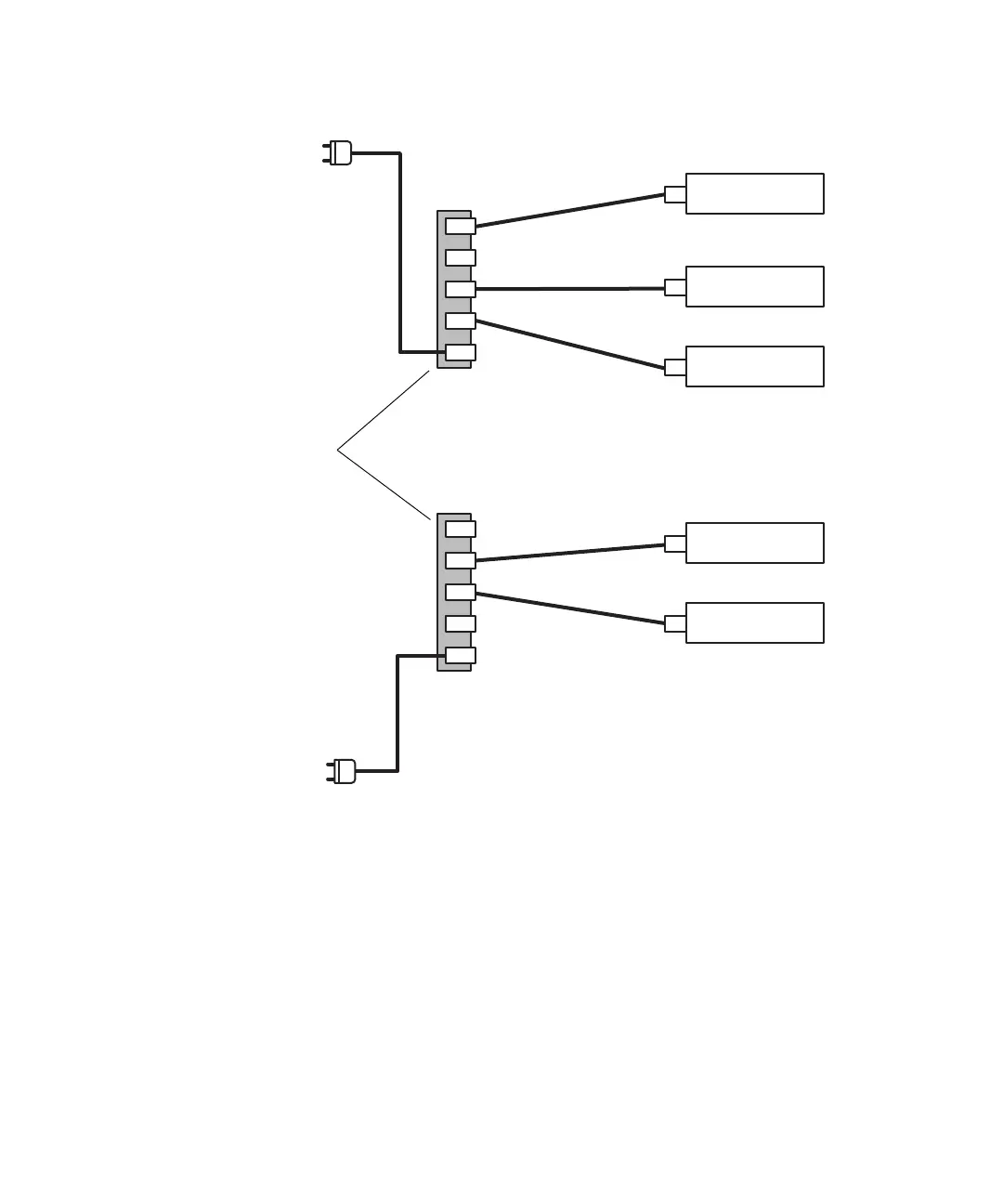

FlexCart power connections (optional):
TP02578
To c ir c ui t A
To c ir c ui t B
AC line
AC line
Network switch
(if needed)
Sample manager
Binary solvent
manager
LCD/monitor
Computer
workstation
FlexCart
power strips
All cord lengths are 1 meter long except the LCD/
monitor cord, which is 2 meters long.
