EFlexCart Assembly
92 July 7, 2014, 715003736IVD Rev. C

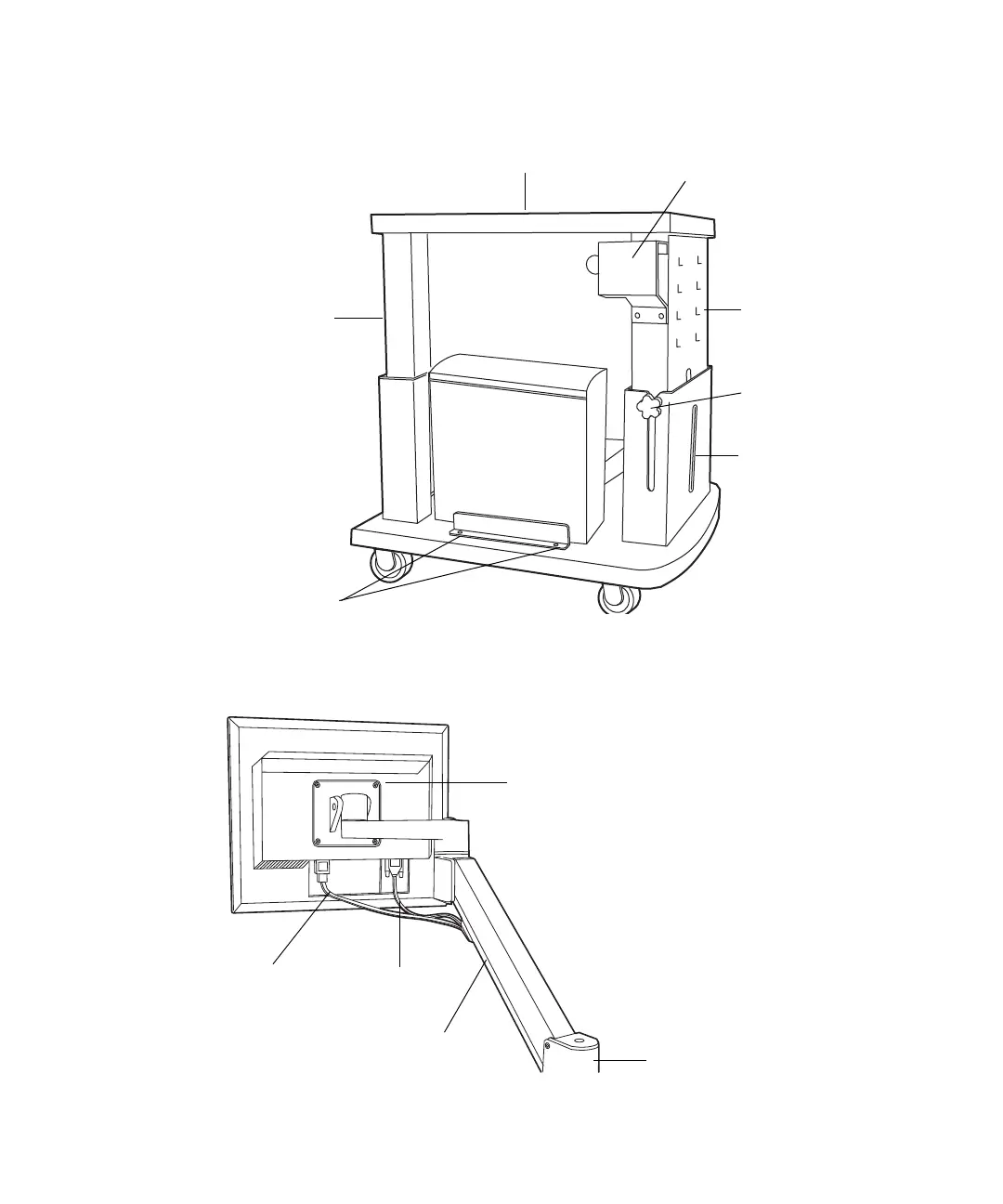

FlexCart components:
2. Remove the 4 Phillips screws from the support plate at the rear of the
monitor, and mount the monitor onto the movable arm assembly. Refer
to the IBM instruction book, if necessary.
Top tr a y
Power
connectors (2)
Monitor mounting
bracket
Shelf mounting
holes
Lock knobs (2)
Height adjusting
screw
TORX screws
Movable arm
bracket
Screws (4)
Line cord
Video cable
Plastic channel
