Limit Controller • 14 • Chapter 2 Install and Wire

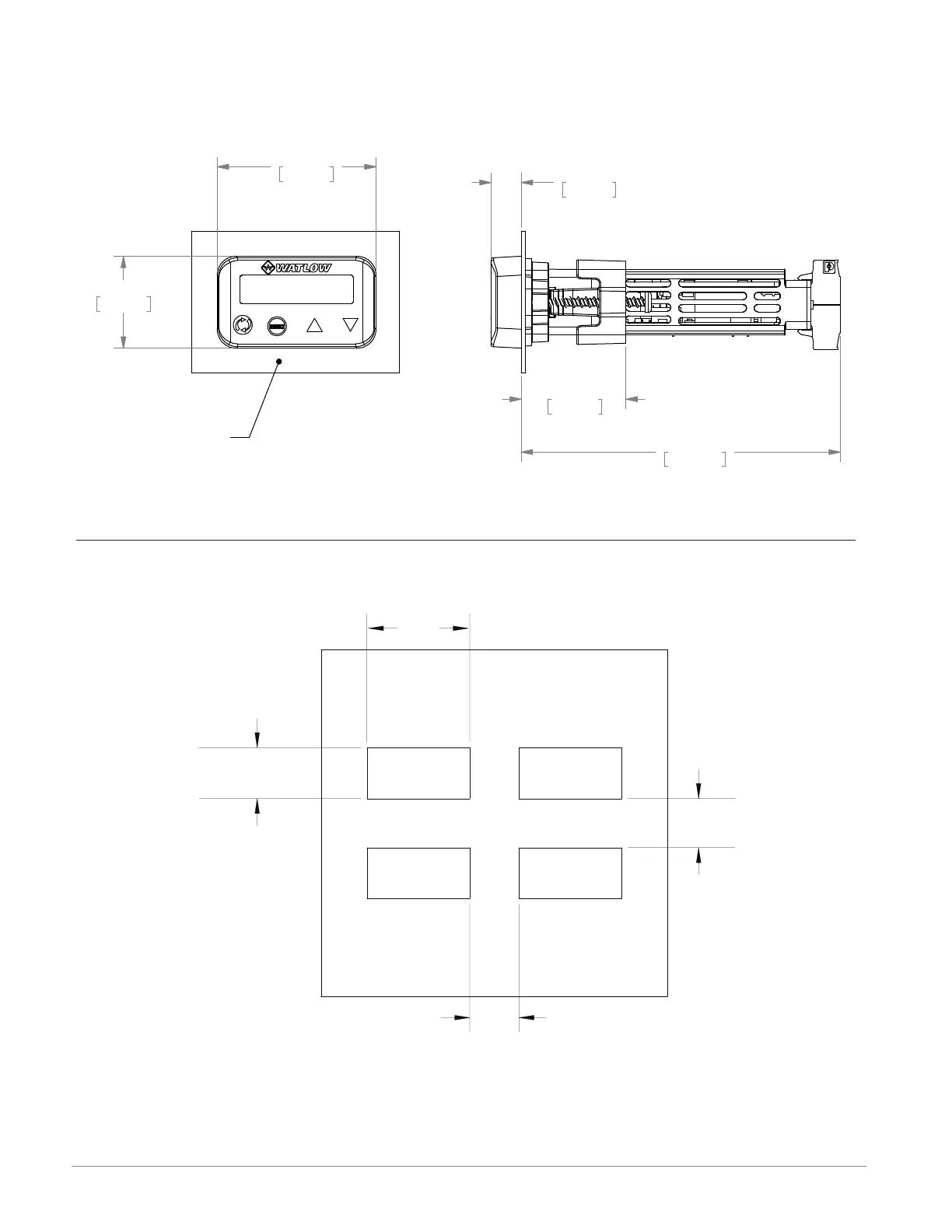

Dimensions
1/32 DIN (PM3)
107.2mm
4.22in
10.2mm
0.40in
1.38in
35.2mm
Mounting Panel
2.10in
53.3mm
1.22in
30.9mm
1/32 DIN (PM3) Recommended Panel Spacing
21.6 mm
(0.85 in)
Minimum
44.96 to 45.47 mm
(1.77 to 1.79 inches)
Recommended panel spacing
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375)
21.6 mm
(0.85 in)
Minimum
22.2 to 22.5 mm
(0.87 to0.89 inches)
