Watson-Marlow 505LA - Page 12

12 PB0379:m-505atex-en-04

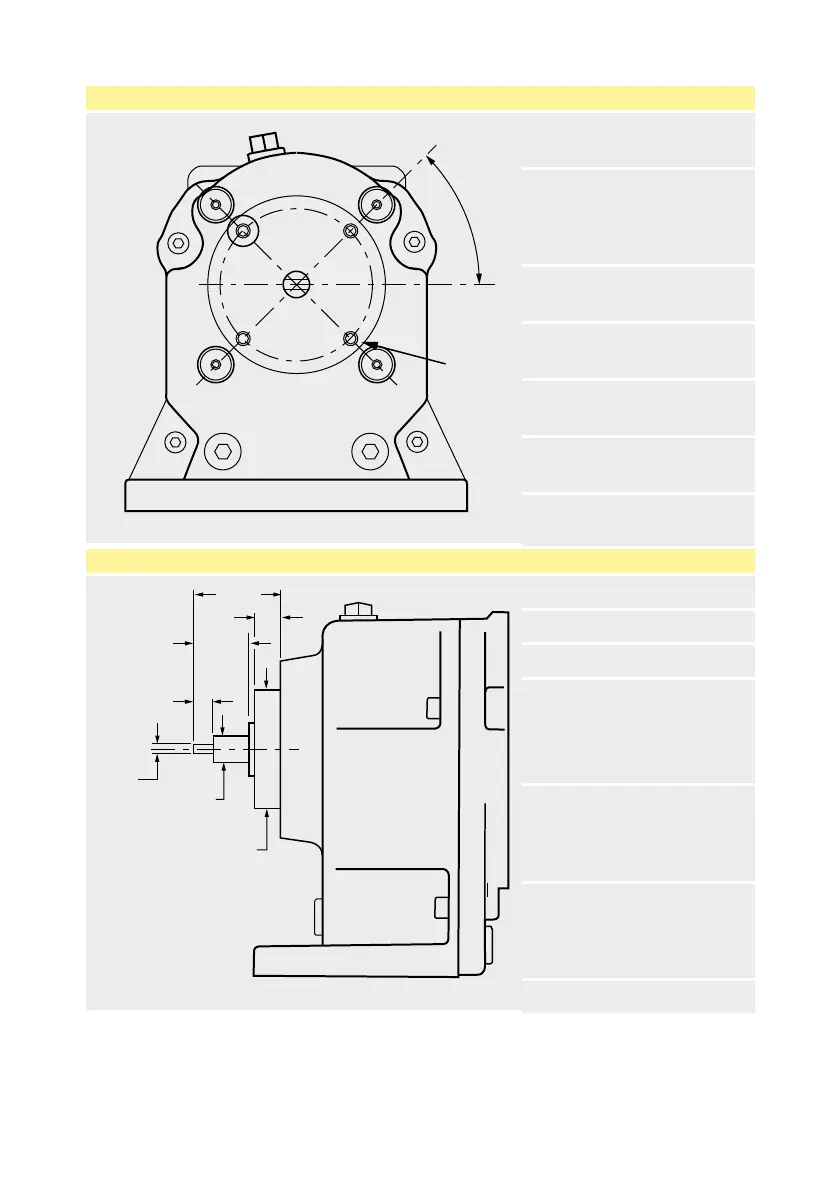

Drive Flange Mounting Dimensions
A
B
A 45°
B
4 holes M5 X 11mm
(0.43") deep equispaced
on a 58mm(2.28″) PCD
asshown
- -
- -
- -
- -
- -
Drive Flange & Drive Shaft Dimensions
C
G
A
B
D
E
F
A 33mm (1.30″)
B 10mm (0.39″)
C 21mm (0.83″)
D
3.4mm (0.13″)
[Width tolerance range
max/min = 3.45mm to
3.35mm]
E
Ø10mm ( 0.39") k6 [ISO
Transition (push) fit, dia.
tolerance range max/min
mm = 10.010 to 10.001]
F
Ø 45mm (1.77") h6 [ISO
Clearance (location) fit,
tolerance range max/min
mm = 45.000 to 44.984]
G 7mm (0.28″)
