The gross values reported to the IS or available on the interface are in mV or µA.

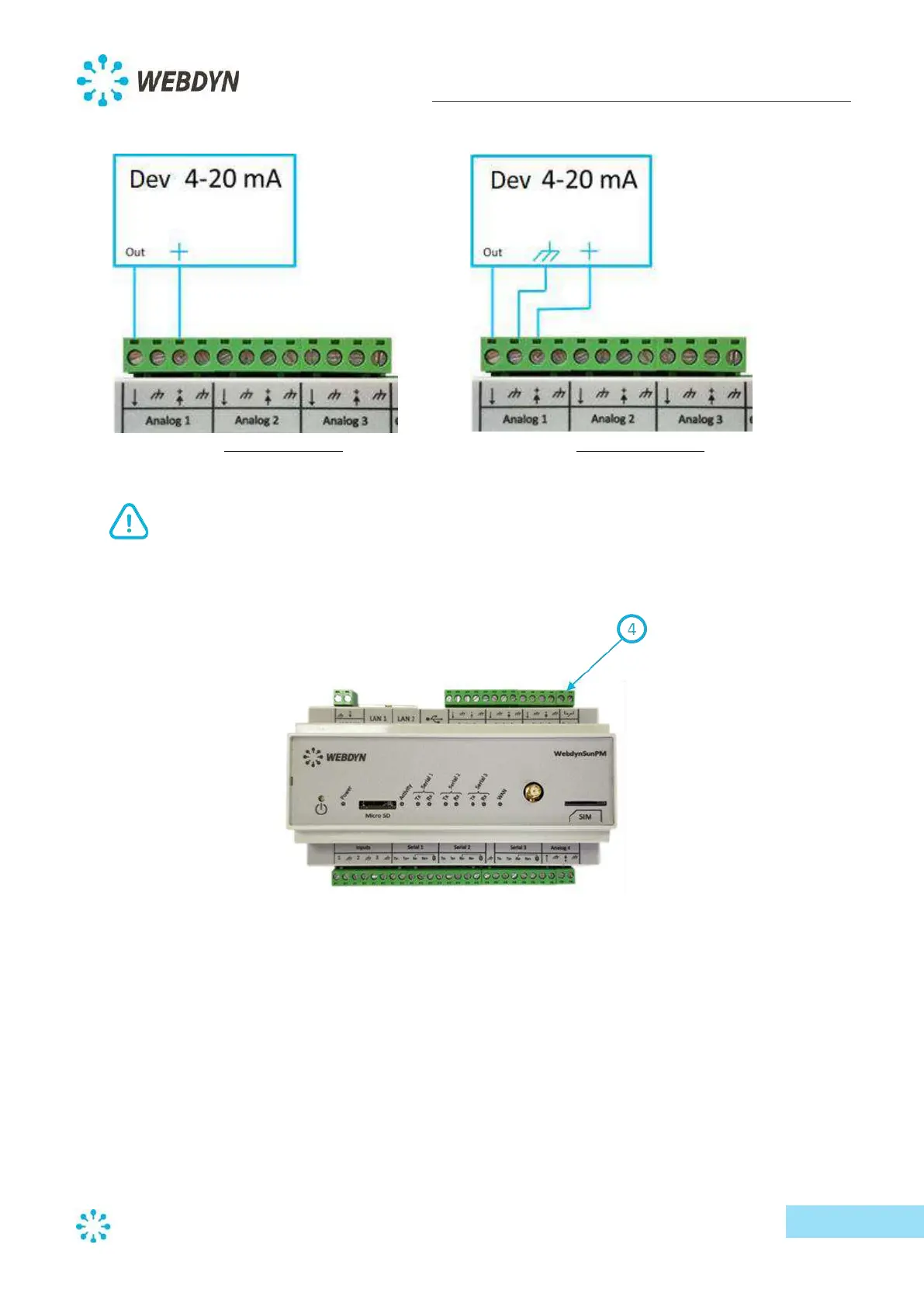

Two-wire cabling
Three-wire cabling
Do not operate a voltage higher than 12V, and a current higher than 24mA on these inputs.
6.2.3 Relay output
The WebdynsunPM concentrator has a potential-free relay output.
Relay characteristics:
- Maximum voltage: 24 V
- Maximum current: 1 A
Two operation modes are available:
- discrete mode: In this mode, the status of the output (open or closed) can be controlled by
software.
- pulse mode: In this mode, you can generate a pulse to close the contact for a set time.
In the event of a power failure or product reboot, the output status does not change.
