USER GUIDE – WebdynSunPM
WebdynSunPM – User guide — Version 1.0

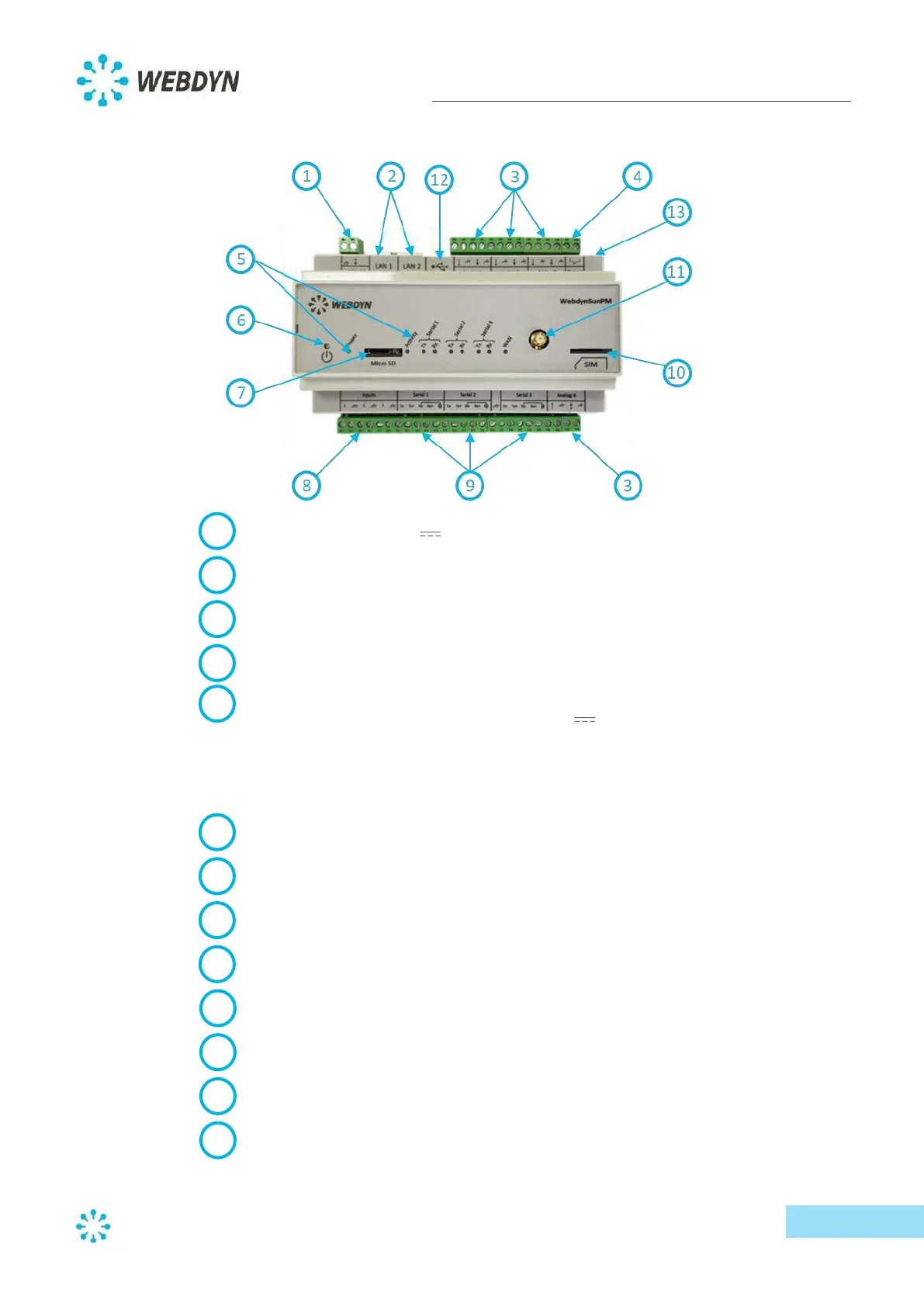

4.1.2 Interfaces
12-24 V power supply
2 Ethernet ports (LAN 1 and LAN 2)
4 analog inputs (0-10 V or 4-20 mA)
1 relay output
Indicators
- Power: 12-24 V power supply status
- Activity: product status
- TX and RX for the 3 serial ports: data sent and received on
the serial ports
- WAN: connection status
Power button
Micro SD card slot
3 digital inputs (discrete or pulsed)
3 RS485/422 ports
SIM card slot
Aerial SMA connector for antenna
USB port
Reset button
1
2
3
4
5
6
7
8
9
10
11
12
13
