3.1.4 Access to the Control and Power Terminals

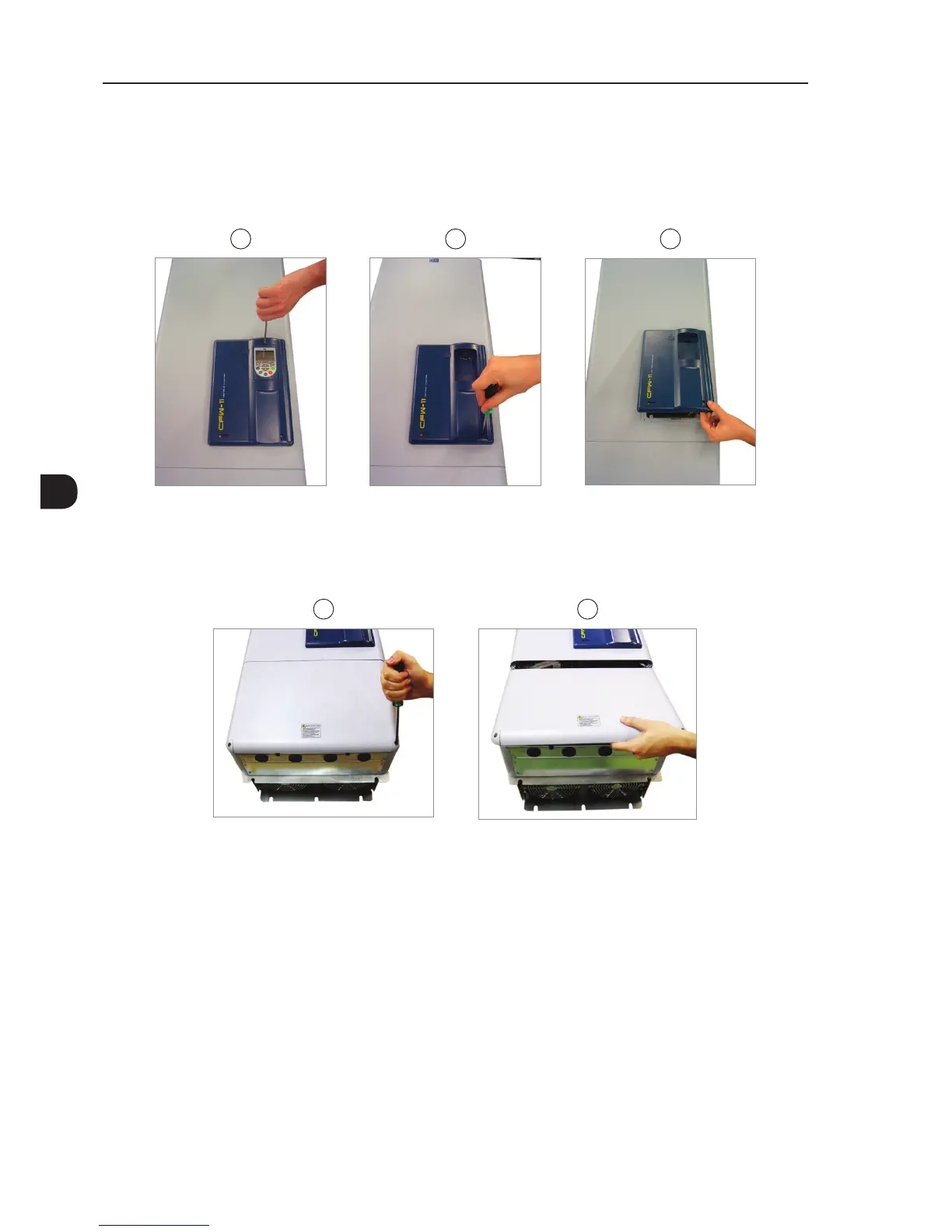

In order to get access to the control terminals, it is necessary to remove the HMI and the control rack cover, as
showed in the Figure 3.3 on page 3-6.
1 2 3
Figure 3.3 - Removal of the HMI and the control rack cover
In order to get access to the power terminals, it is necessary to remove the bottom front cover, as showed in
the Figure 3.4 on page 3-6.
1 2
Figure 3.4 - Removal of the bottom front cover, to access to the power supply and motor connection terminals
In order to connect the power cables (line and motor), remove the bottom plate, as showed in the Figure 3.5
on page 3-7. In this case the protection degree of the inverter bottom part will be reduced.
