WEG CFW-11 - HMI Installation at the Cabinet Door or Command Panel (Remote HMI)

Installation and Connection
3
CFW-11 | 3-7

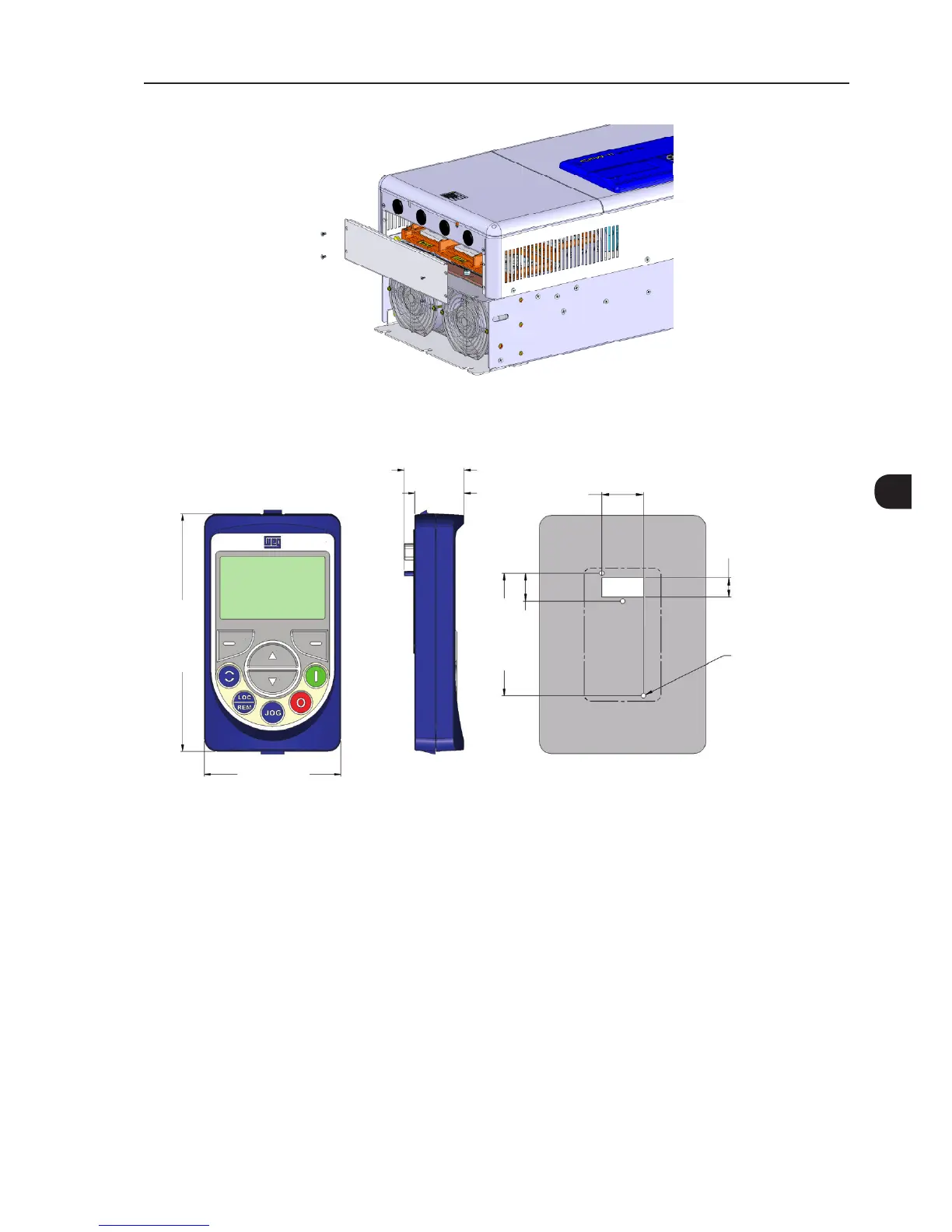

Figure 3.5 - Removal of the bottom plate, to access the power terminals
3.1.5 HMI Installation at the Cabinet Door or Command Panel (Remote HMI)
35.0 [1.38]
28.5 [1.12]
113.0 [4.45]
103.0 [4.06]
23.4 [0.92]
16.0 [0.63]
23.5
[0.93]
65.0 [2.56]
∅4.0 [0.16] (3X)
Figure 3.6 - Data for the HMI installation at the cabinet door or command panel – mm [in]
Frame accessory can also be used to install the HMI as mentioned in Figure 7.1 on page 7-2 of accessory
models.
