Ready
Run
Sub
Fire Mode
- -
Status
Description
Fault
Self-tuning
Configuration
DC Braking
Reserved
Indicates the inverter is ready to be enabled
Indicates the inverter is enabled
Indicates the voltage in the inverter is too low for
operation (undervoltage), and will not accept the
enabling command
Indicates the inverter is in the fault status. The fault
code will flash
Indicates the inverter is executing the Self-Tuning
routine
Indicates the inverter has incompatible parameter
programming. After pressing the key, it will
keep showing an arrow until the incorrect setting
is corrected, as shown in the figure. The situations
of CONFIG status are shown in the Table 11.2 on
page 11-5
Indicates the inverter is applying DC Braking during
motor start and/or motor stop
Indicates that the inverter is in Fire Mode. After
pressing the key, letter “A” will continue to flash
indicating the state

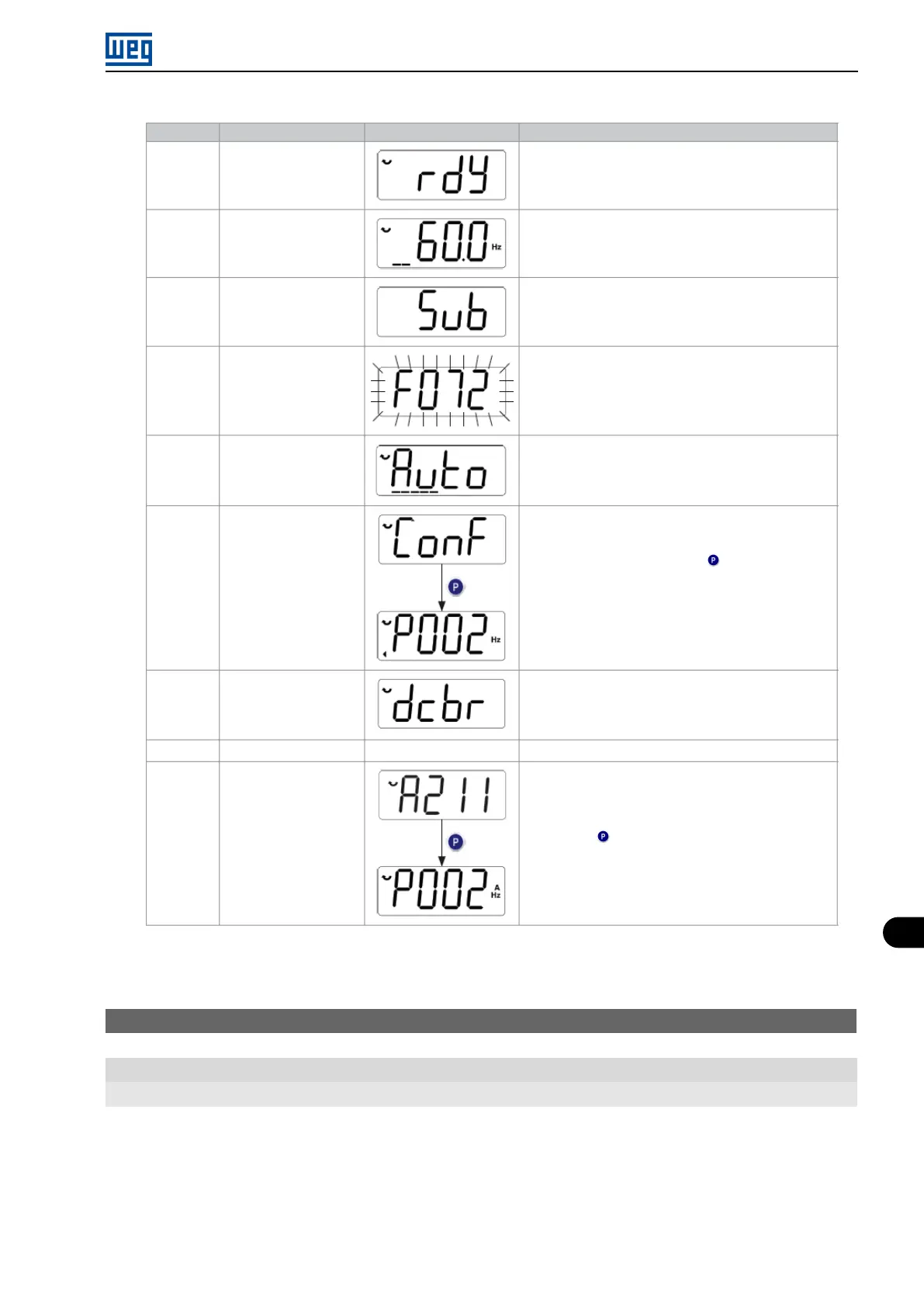

Figure 11.1: Inverter status- P006
P007 - Output Voltage
Range: 0 to 480 V
Properties: ro
Description:
It indicates the line voltage in inverter output, in Volts (V).
