COMMAND AND REFERENCES
Table 7.4: Multispeed frequency reference
8 Referency
4 Referency
2 Referency
DI1 or DI2 or DI5 or DI6 DI3 or DI7 DI4 or DI8 Frequency Reference
Inactive Inactive Inactive P124
Inactive Inactive Active P125
Inactive Active Inactive P126
Inactive Active Active P127
Active Inactive Inactive P128
Active Inactive Active P129
Active Active Inactive P130
Active Active Active P131
P124
P125
P126
P127
P128
P129
P130
P131
Output
frequency
Time
Acceleration
ramp
DI1 or DI2
DI5 or DI6
DI3 or DI7
DI4 or DI8
Active
Inactive
Active
Inactive
Active
Inactive

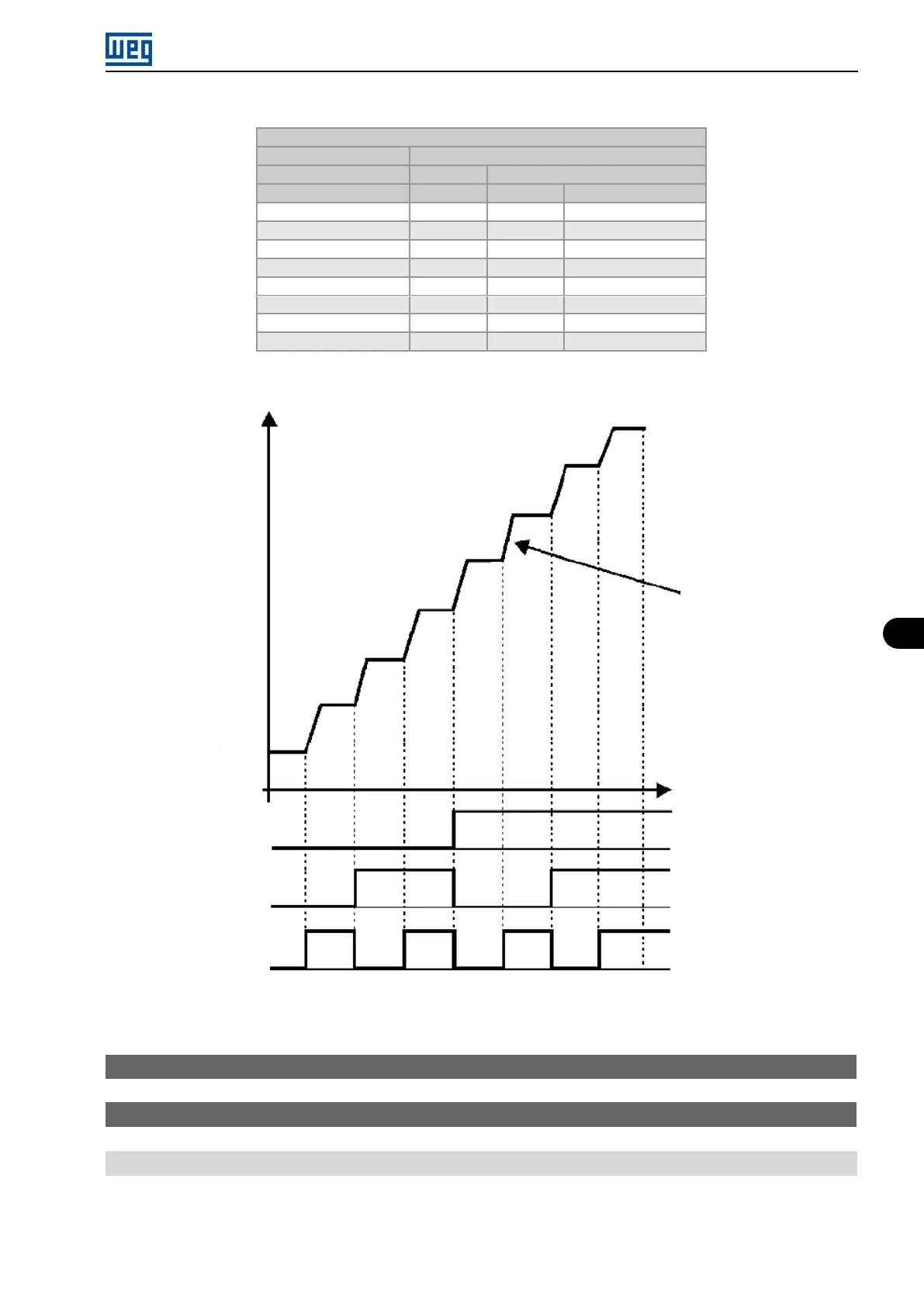

Figure 7.3: Operating graph of the Multispeed function
P133 - Minimum Frequency
P134 - Maximum Frequency
Range: 0.0 to 400.0 Hz
Description:
Limits for frequency reference of the inverter. These limits are applied to any reference source, even in case of
”13-bit speed”.
