8. CAPACITY OF THE POWER SUPPLY LINE:
The SSW-05 Plus is suitable to be used in circuits that can not supply more than X A
RMS
(according to table below)
symmetric Ampères, Y Volts maximum:
SSW-05 Plus
Model
3A
10A
16A
23A
30A
45A
60A
85A
Y = 220- 575V
X (kA)
5
5
5
5
5
5
5
10
9. TABLE OF FUSES AND CONTACTORS (SEE ITEM 11):
SSW-05 Plus
Model
3A
10A
16A
23A
30A
45A
60A
85A
Contactor
(K1)
CWM09
CWM12
CWM18
CWM25
CWM32
CWM50
CWM65
CWM95
Fuse
(F1, F2,F3)
Type D 10A
Type D 16A
Type D 25A
Type D 35A
Type D 50A
Type D 63A
Type NH 100A
Type NH 125A
Fuse
(F11, F12, F21)
Type D 6A

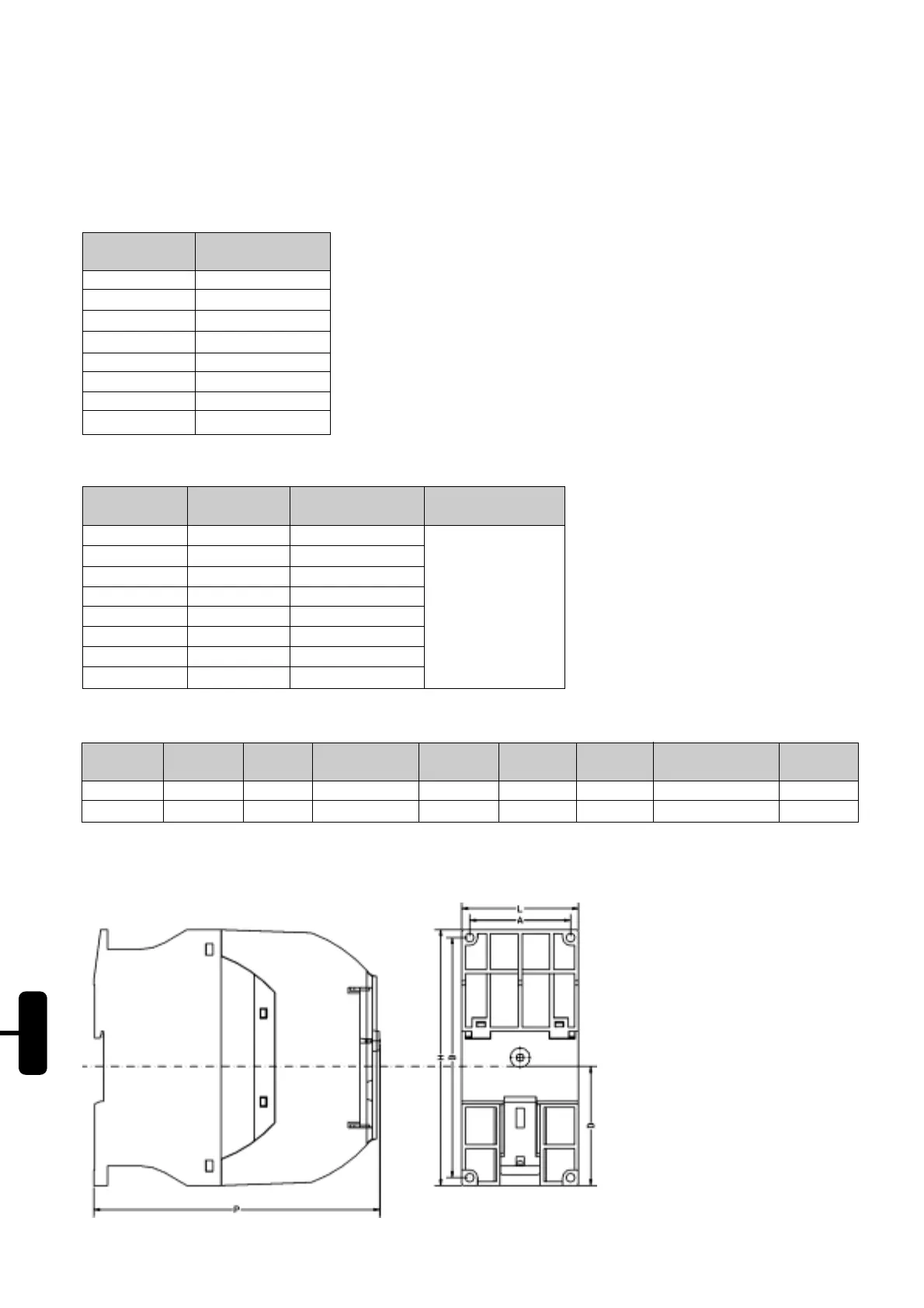

10. DIMENSIONS:
Notes:
1) The SSW-05 Plus can be fixed on DIN 35mm rail.
2) In the case of fixing through M4 screw, the torque should not be greater than 0.2 Nm (1.77 lb in) for the upper
screws and 1.0 Nm (8.85 lb in) for the lower screws.
Size
1
2
Width L
mm (in)
59 (2.32)
79 (3.11)
Depth P
mm (in)
145 (5.70)
172 (6.77)
Fixing A
mm (in)
51 (2.00)
71 (2.79)
Fixing B
mm (in)
122 (4.80)
177 (6.17)
Fixing
M4 screw/ Rail
M4 screw/ Rail
Weight
kg (Lb)
0.74 (1.63)
1.67 (3.68)
Height H
mm (in)
130 (5.11)
185 (7.28)
Fixing D
mm (in)
61 (2.40)
99 (3.89)
