ENGLISH

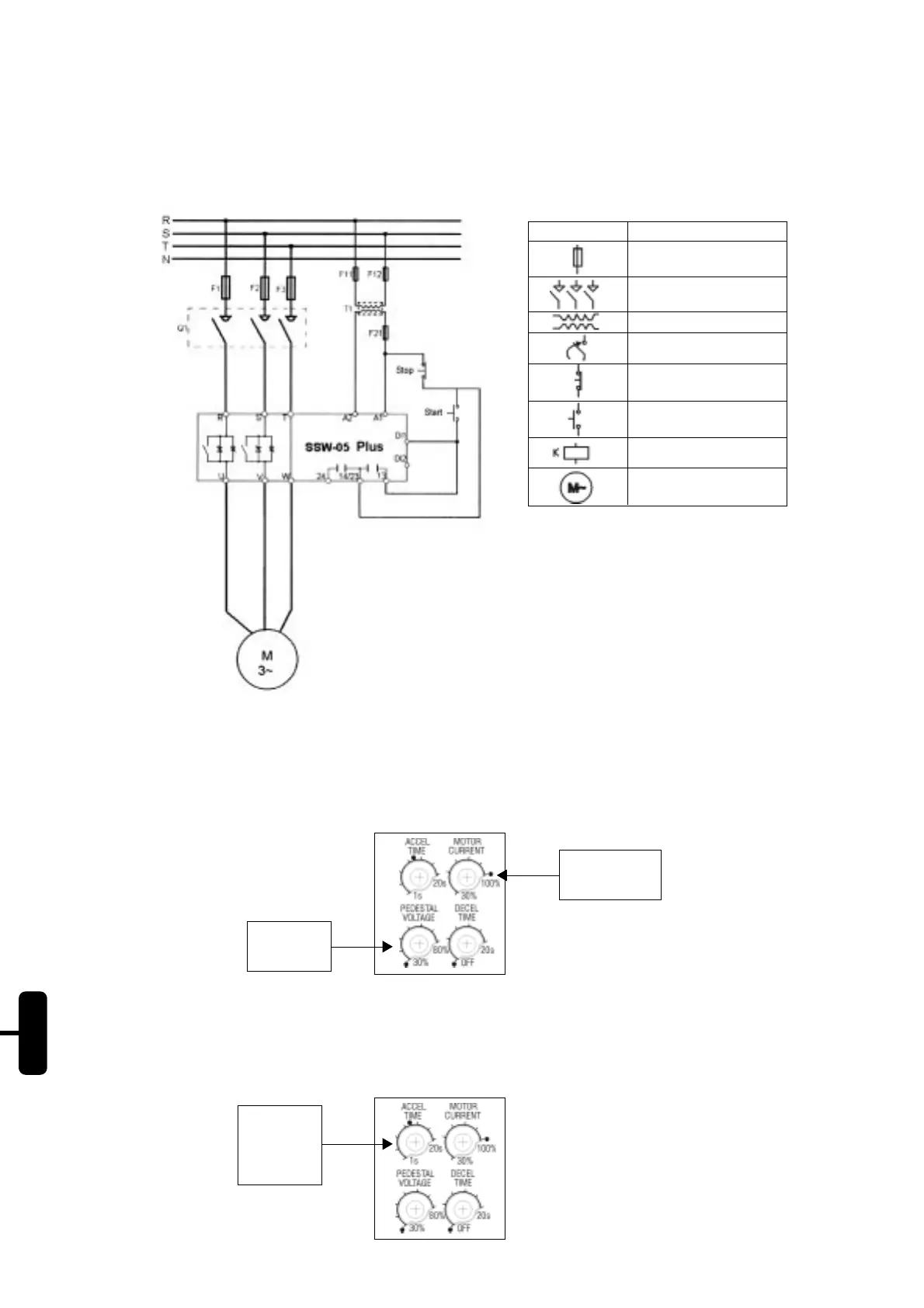

11.3. Start/Stop by using Push Button and Operation Function Relay of the SSW-05 Plus:
The “T1” transformer is only required when the
line voltage is out of the range allowed for the
electronics supply (90 – 250Vac). For 400V,
use neutral conductor (N) and one phase.
12. SSW-05 PLUS SETTING:
12.1. Pedestal Voltage Setting:
Set the pedestal voltage to a value that the motor starts to run as soon as run command is given by the SSW-05
Plus.
12.2. Setting of the acceleration ramp time:
Set the value so that the motor accelerates to the rated speed.
Note: Please consider that in the cases where rated SSW-05 Plus current is equal to the rated motor current,
the SSW-05 Plus can be operated, at maximum, during 10 seconds at 3 x IN.
Trimpot for the
pedestal
voltage setting
Trimpot for
the
acceleration
Ramp time
setting
Symbol
Description
Fuse
Disconnecting Switch
(opens under load)
Transformer
N.O. switch
(with holding)
N.C. push button
(with automatic return)
N.O. push button
(with automatic return)
Contactor (coil)
Three-phase induction
motor
The dot
indicates the
factory default
