4.3 Push-button panel

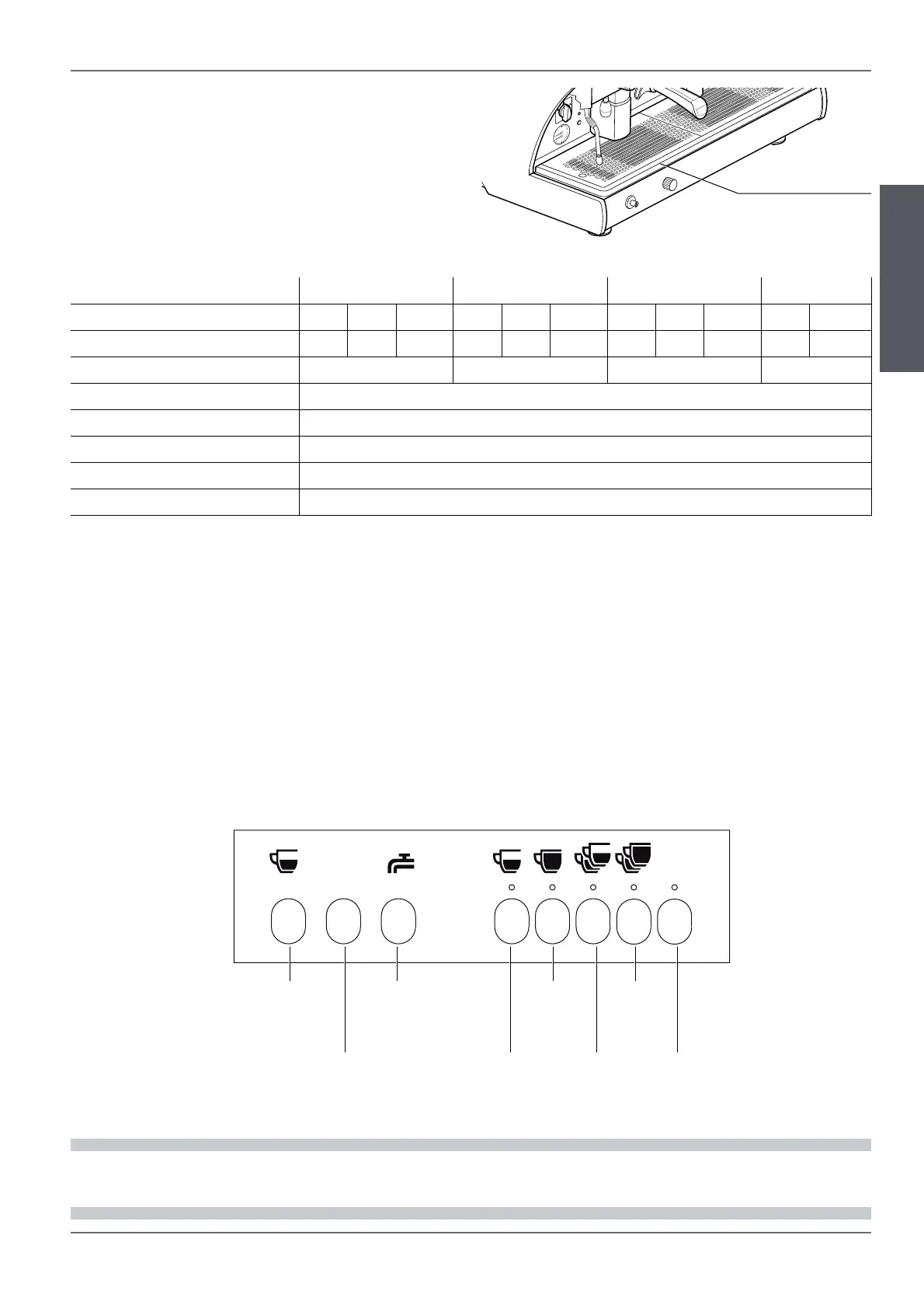

In the diagram underneath you’ll nd a description of the functions of the individual buttons. Dual-
function buttons are used during the programming of display elements (this last one is indicated in
parentheses).
Technical data plate
Technical data table
1GR COMP 2GR 3GR
Power supply voltage
V 120
240 230/400
120
240 230/400
120
240 230/400 240 230/400
Absorbed power
W 2.300
3.300 3.000
2.900 2.900 3.100 3.100
4.200 3.900
6.000
5.550
Steam boiler capacity
L / gal UK 5 / 1,10 7 / 1,53 12 / 2,64 17 / 3,74
Safety valve calibration
bar / psi 1,9 / 27,6
Boiler operating pressure
bar / psi 0,8 ÷ 1,4 / 11,6 ÷ 20,3
Feedwater pressure
bar / psi 1,5 ÷ 5 (MAX) / 21,8 ÷ 72,5 (MAX)
Coee dispensing pressure
bar / psi 8 ÷ 9 / 116 ÷ 130,5
Operating conditions
°C / °F 5 ÷ 40 / 41 ÷ 104
STOP
PROG.
AUTO
STEAM
1
Espresso
(Mode)
Autosteamer
Button
1 Large
coee
( + )
Stop/
Continuous/
Programming
2
Espressos
(Enter)
Hot waterManual
dispensing
2 Large
coees
( - )
i
On the models with display, the programming is carried out by the right push-button panel.
4.2 Technical data
The nameplate of the machine is xed on the
base of the frame under the drain pan.
The data of the appliance can be seen also on
the label located on the package of the machine.
