Weil-McLain GV90+ - Dimensions and ratings; Dimension drawing

Part number 550-142-903/1016
102

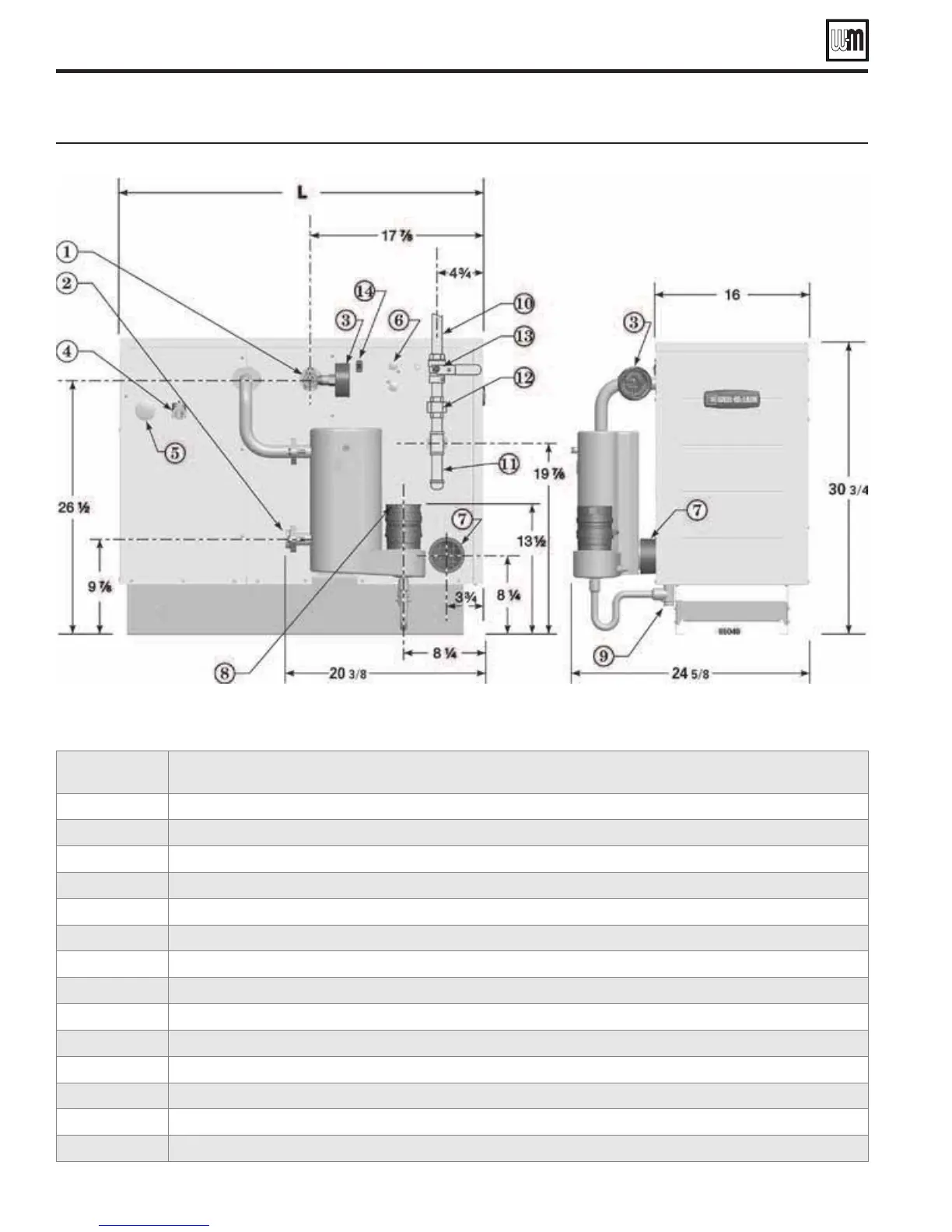

&IGURE Dimension drawing (see Figure 108, page 103 for dimensional table)
)TEM
NUMBER
$ESCRIPTION
1 1” NPT Supply
2 1” NPT Return
3 Combination pressure-temperature gauge, 2 ½” short shank
4 ¾” NPT Relief valve outlet
5 Plug dome, 2” black
6 Junction box
7 Inlet air fitting, 3" PVC
8 Flue outlet, 3" PVC
9 ½” Condensate drain
10 ½” NPT Gas supply connection (provided by others)
11 Drip leg (provided by others)
12 Union (provided by others)
13 Manual main shutoff gas valve (provided by others)
14 ON/OFF switch
GV90+ Series 2 GAS-FIRED WATER BOILER — Boiler Manual
Dimensions and ratings
