4 Overview
EN
25 Menu switch
For switching between the standard display and the
menu.
26 Humidifier switch with LED
For setting humidifier stage. Six stages are availa-
ble. The LED indicates whether the humidifier is
activated.
27 Soft start switch
Used for activating Softstart and for setting the
Softstart time up to the maximum set by the
physician.
This function is not available in TA mode.
28 VENTIpower
Available as an accessory, to provide mains-inde-
pendent power to the VENTIlogic.
29 Rating plate
Provides information about the unit, like serial num-
ber and year of manufacture.
30 VENTIclick
Available as an accessory, for humidifying and
heating respiratory air.
31 Carrying bag
For transporting the VENTIlogic.
32 VENTI-O
2
Obtainable as an accessory, for introducing
oxygen into the mask.

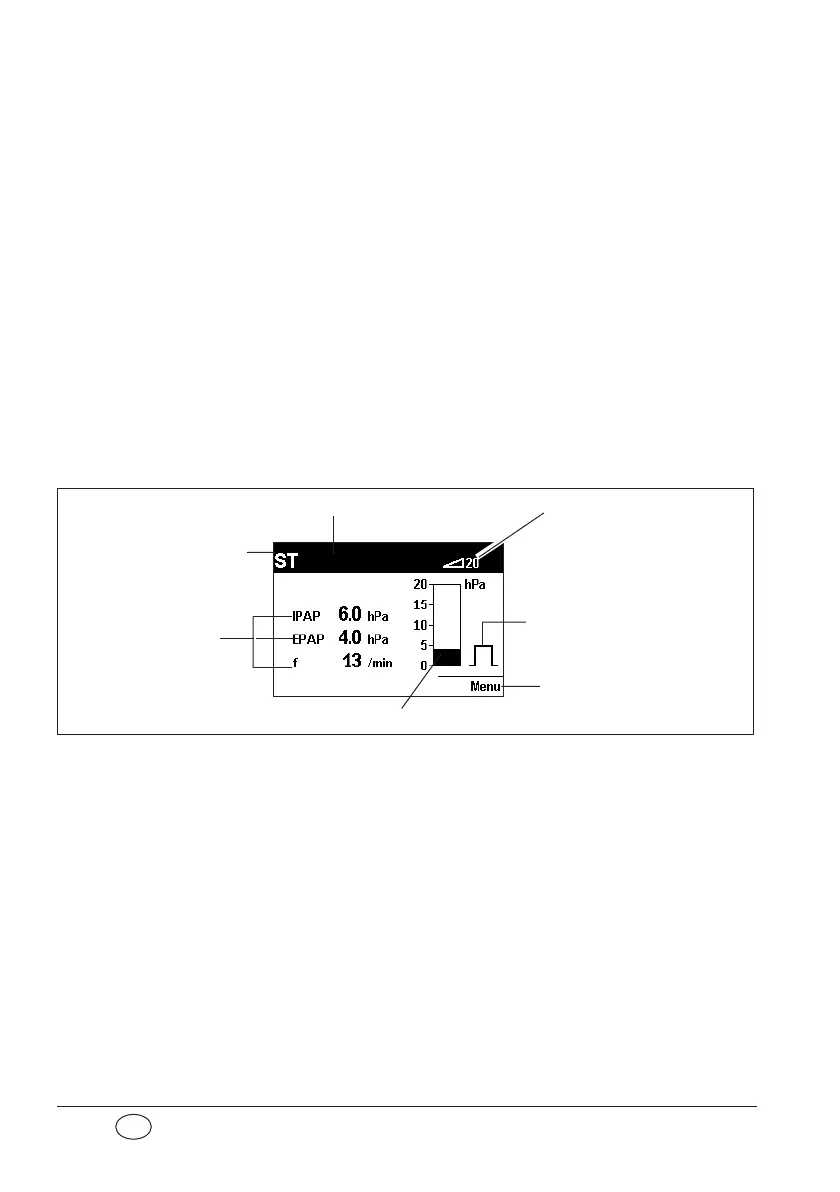

Standard display during therapy:
1 Status line
This is where information about the status of the unit
is displayed, like filter change or maintenance due.
2 Soft start symbol
Indicates that soft start is activated, the number
showing time remaining in minutes.
3 Respiratory phase switch indicator
Indicates whether the current respiratory phase
switch is spontaneous or mandatory (spontaneous:
S, mandatory: T); the indicator switches from left
(inspiration) to right (expiration) depending on respi-
ratory phase; mandatory expiration is shown here.
4 Access to patient menu
The switch next to this menu item is used to switch
between the patient menu and the standard
display.
5 Bar chart for pressure indication
For graphical display of therapy pressure.
6 Ventilation parameters
The relevant current ventilation parameters are
displayed depending on the active mode.
7 Active ventilation mode
The active ventilation mode is displayed at this
point in the status line.
1 Status line
7 Active ventilation
mode
5 Bar chart for pressure indication
4 Access to patient menu
3 Respiratory phase switch
indicator
2 Soft start symbol
6 Ventilation
parameters
