ROTARY INDEXING TABLE CONTROLLER EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.3 Machine configuration
I/O configuration terminal block connection EF1
With the EF1 compatible I/O configuration, the interfaces are compatible to the WEISS rotary indexing table control-
ler EF1.
➱ Inputs and outputs are assigned to the control functions which are defined as default.
➱ Individual assignments cannot be deleted or changed.
➱ The display of control functions is informative.

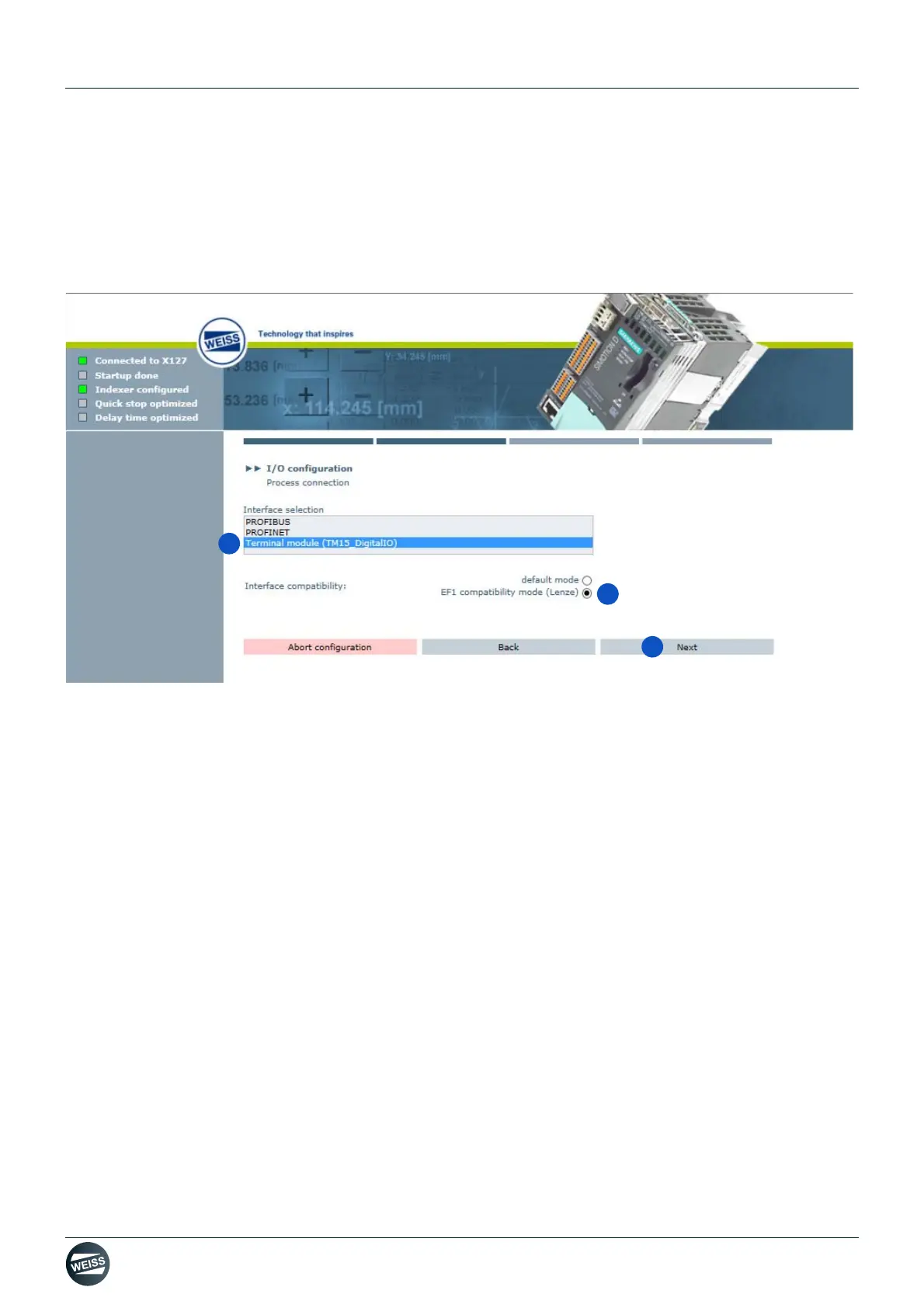

1. Select terminal module interface.
2. Select EF1 compatibility mode.
3. Click the Next button.
➱ The window for entering the I/O configuration - terminal assignment TM15_DigitalEA "EF1 / Lenze" compati-
ble is opened.
