Manual R06-2016 135 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
COMMUNICATION WITH A HIGHER-LEVEL CONTROLLER | 10.2 Profinet IO RT

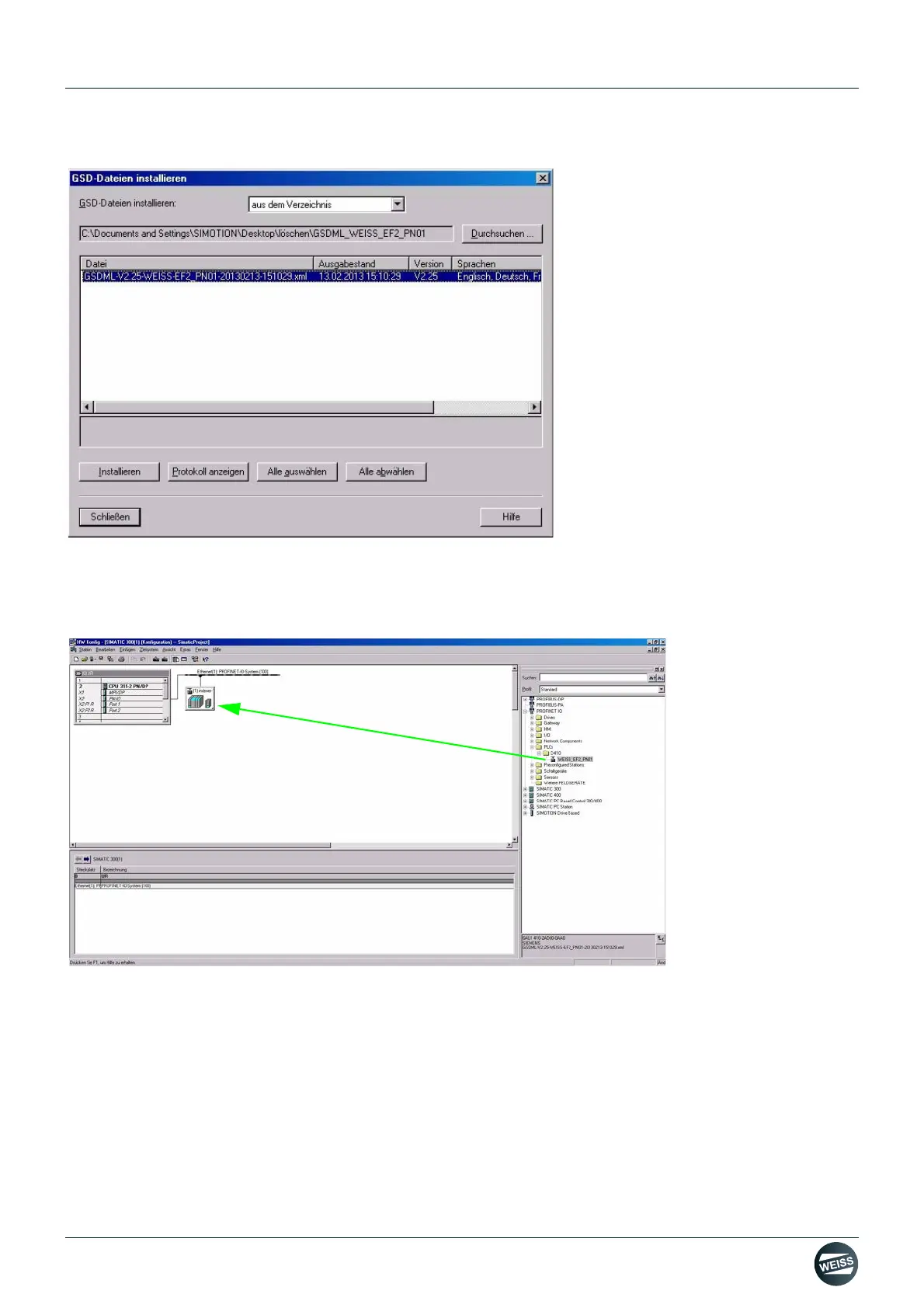

• In the following dialog, select the desired GSDML file and accept it by pressing the "Install" button in the HW
catalogue of HW Config.
• Afterwards, the SIMOTION will appear in the HW catalogue from where it can be dragged and dropped onto a
PROFINET IO system of an S7 station.
• Double-clicking the pasted I device opens the properties dialog box. Here, the device name proposed by HW
Config "unnamed" can now be changed to the desired name. The new device name must also be considered in
the machine configuration on the Web interface of the SIMOTION.
