Manual R06-2016136 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
COMMUNICATION WITH A HIGHER-LEVEL CONTROLLER | 10.2 Profinet IO RT

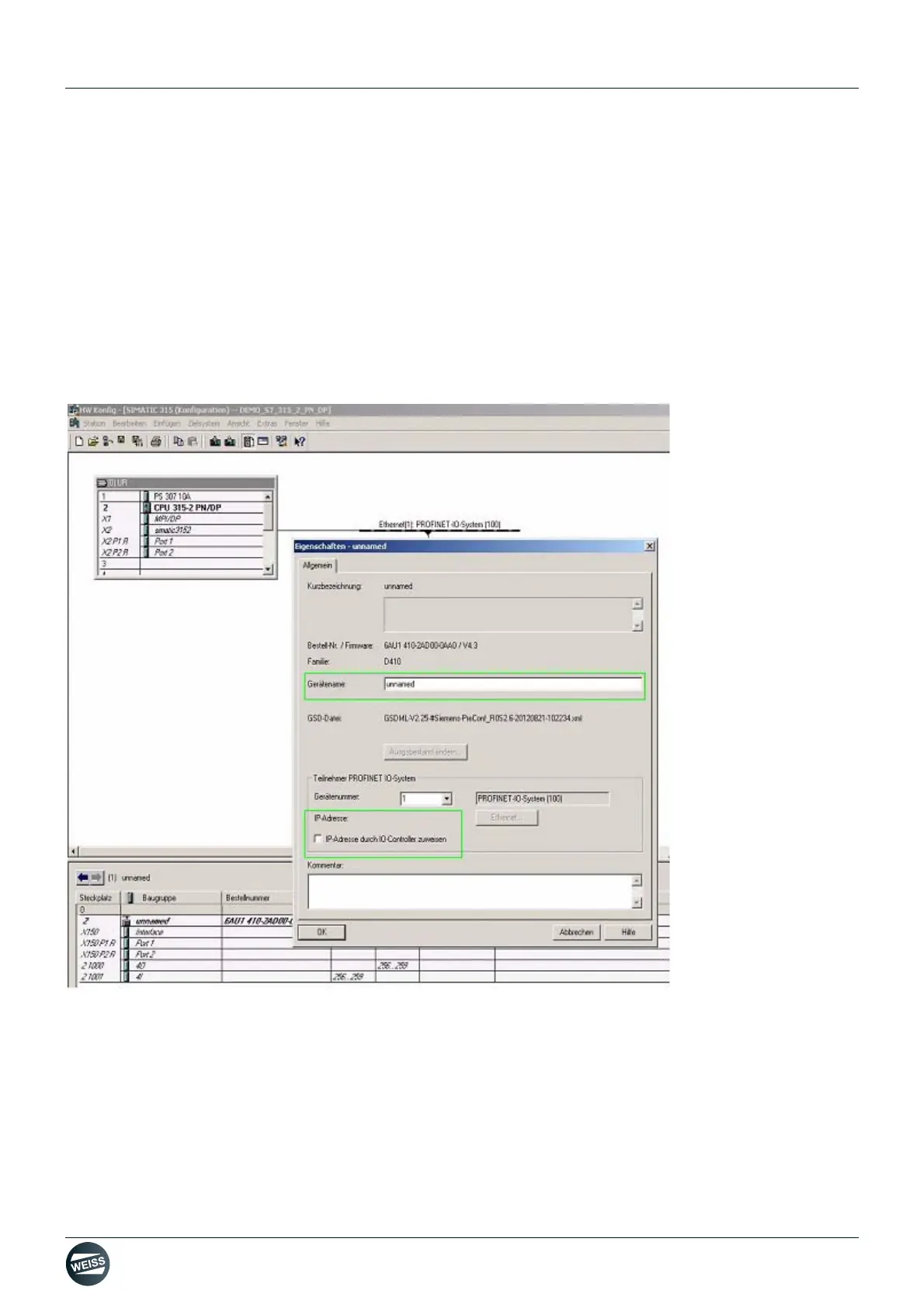

Rules for assigning names:
• Only lowercase letters
• Letters a-z and numbers 0-9 are permitted
• Special characters are not allowed: !"§$%&/()=?`*'_:;#+<>|~[]{}
• Spaces are not allowed either
• The name can have a maximum total length of 240 characters
• Reserved names which cannot be used:
"port-xyz" or "port-xyz-abcde…"
• The engineering system replaces invalid characters with an "x".
• The checkmark for "Assign IP address via controller" depends on the settings of the PROFINET configuration of
the EF2.
• By double-clicking slot 2.1000 or 2.1001, the start address proposed by HW Config can be reassigned to the
desired address.
