Profile Abort Actions
If a running profile is forced to end early, the Profile Abort Action defines action taken by
the instrument. The profile abort action is set in the profile header.
If a profile sequence is forced to end early, the profile abort action of the current segment will
be used.
The possible abort options are explained below.
Possible Profile Abort Actions:
See
note
below
A
E
Abort the profile and maintain the value of the setpoint at the time of the abort.
B Abort the profile and exit Profiler Mode using the Controller Setpoint value.
C Abort the profile and remain in Profiler Mode with the Control outputs off.

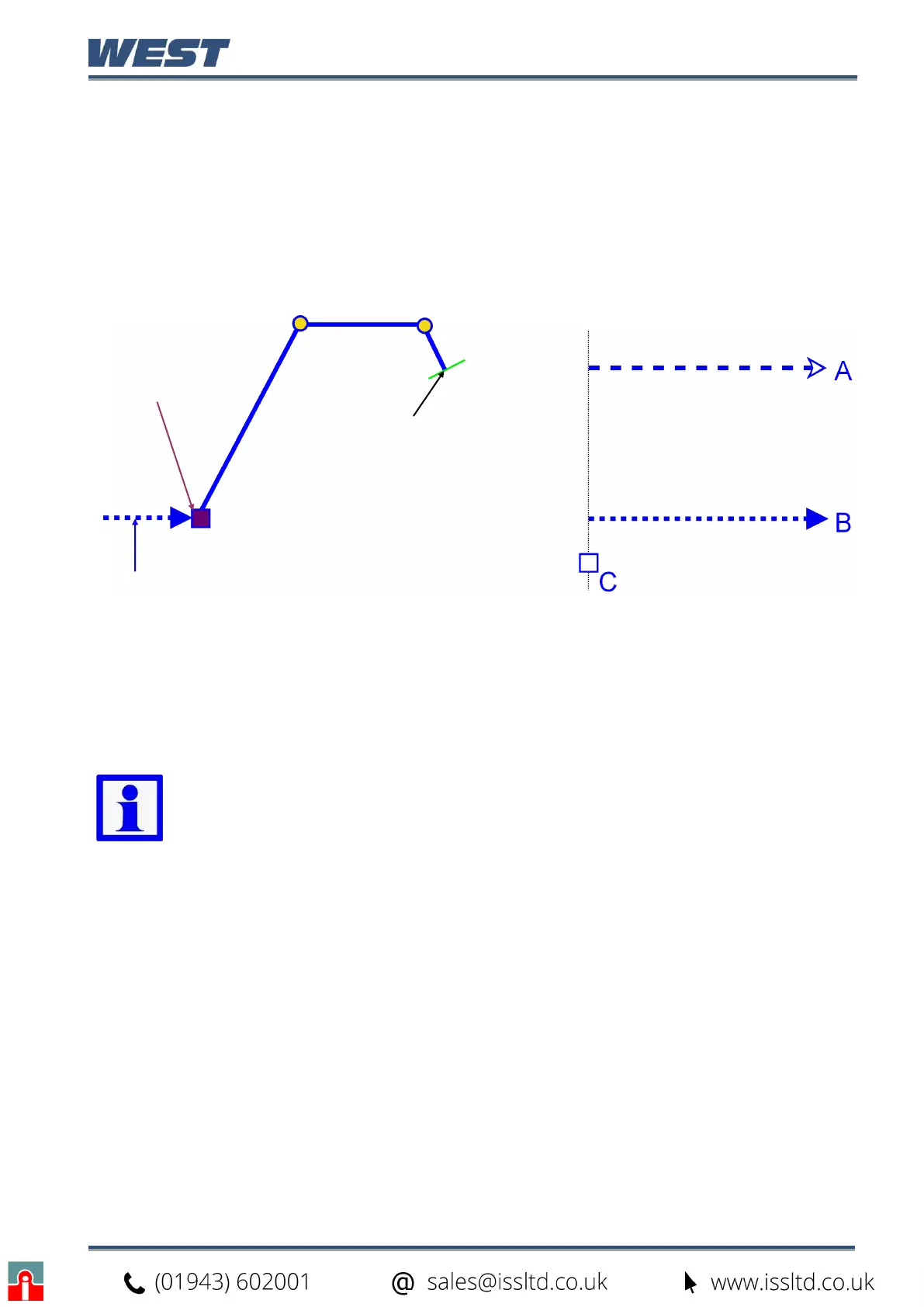

Figure 57. Profile Abort Action
Note: When using two loop profiles, the abort-action applies to both loops, but
each ends with its own individual setpoint in line with the method chosen.
Controller SP
Run
(Start-on SP)
Profile Aborted
= Control Off
Last Profile SP
Controller SP
