Pro-EC44 2-Loop Graphical Profile Controller & Recorder
Pro-EC44 Product Manual - 59540-2 September 2014 Page 13
Connections and Wiring
Central Terminal Connections

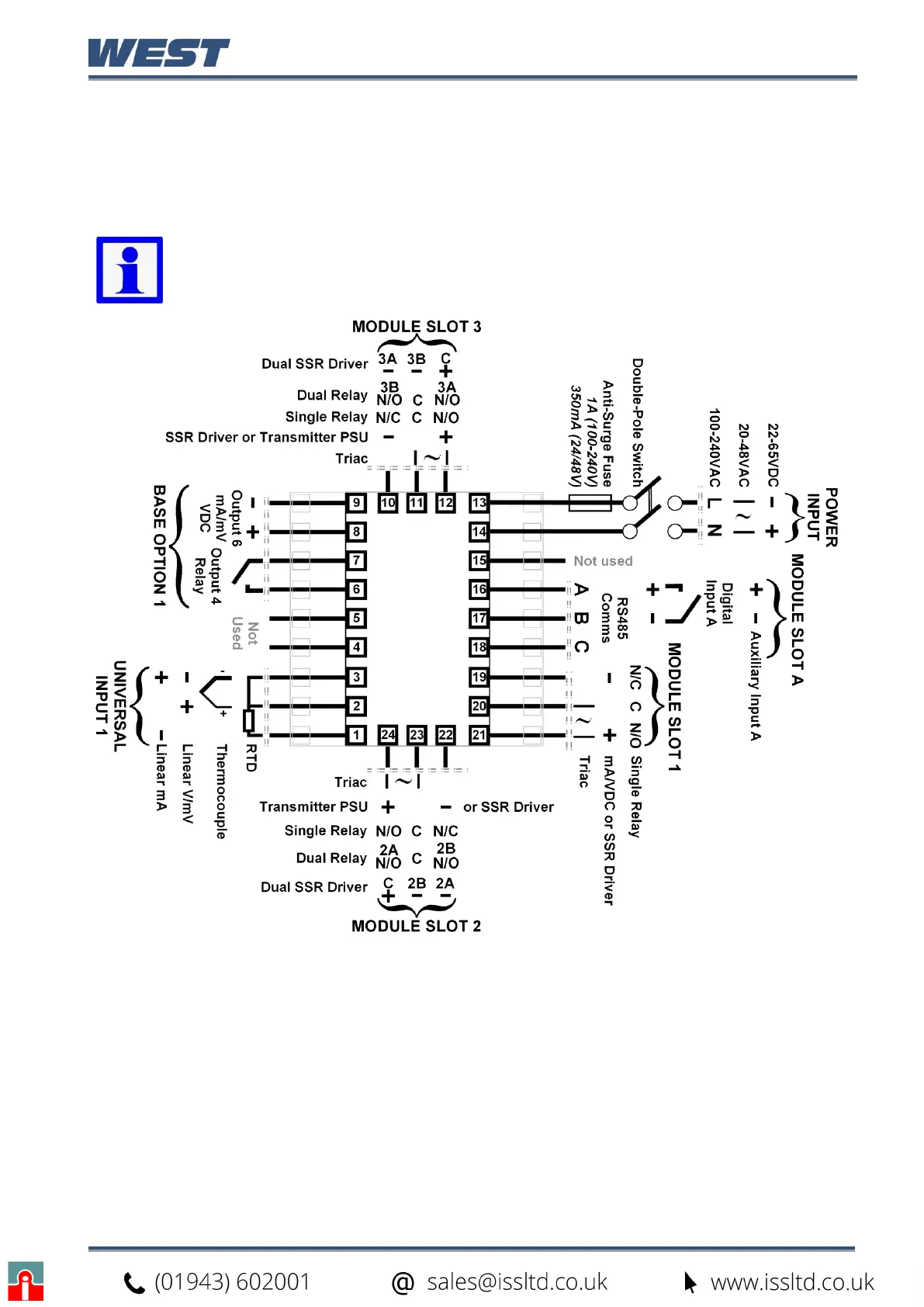

Note: The wiring diagram below shows all possible combinations to the main
connections (numbered 1 to 24) in the centre of the case rear. The actual
connections required depends upon the features and modules fitted.
.
Figure 7. Central Terminals 1 to 24
WARNING:
CHECK THE INFORMATION LABEL ON THE CASE TO DETERMINE THE CORRECT VOLTAGE
BEFORE CONNECTING TO A LIVE SUPPLY.
