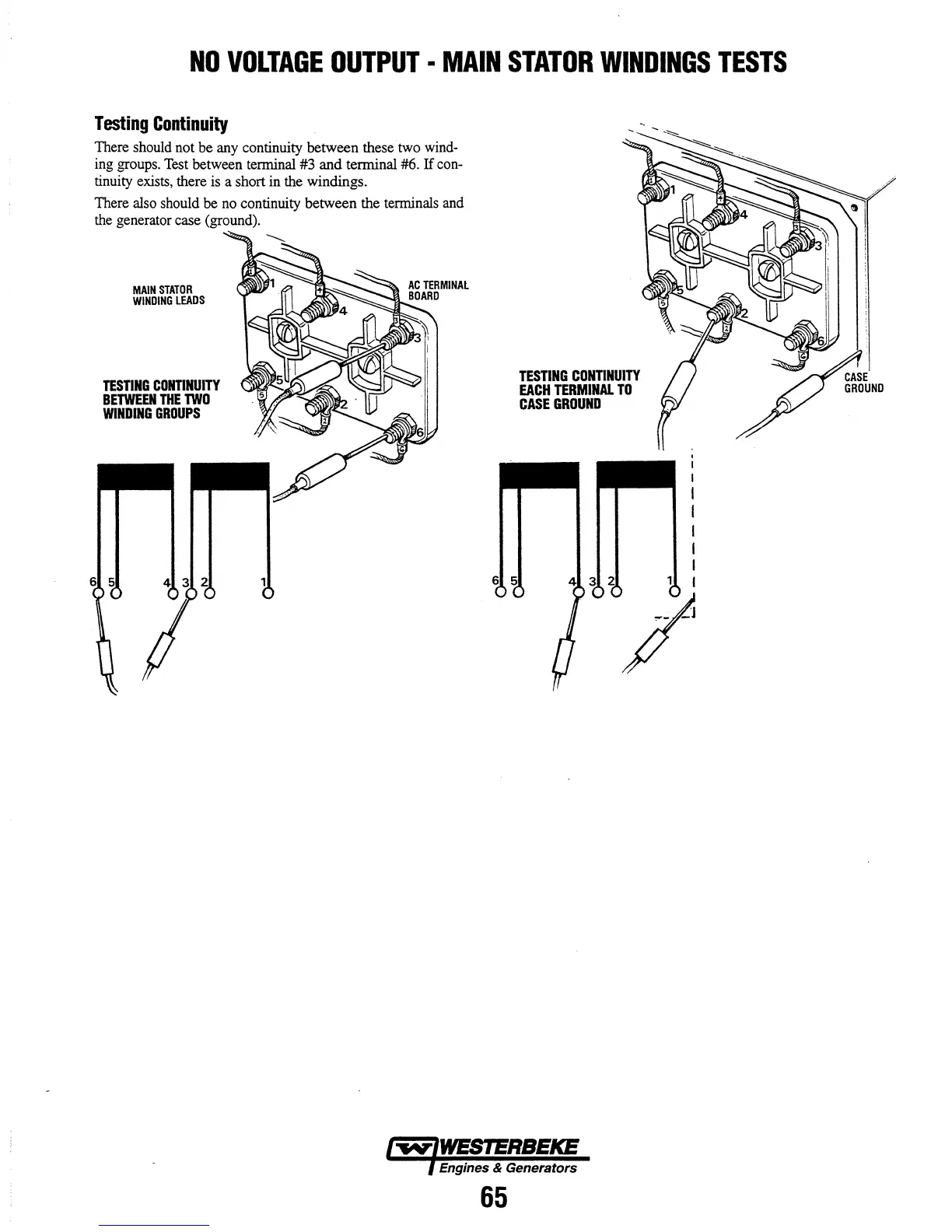

NO VOLTAGE OUTPUT • MAIN STATOR WINDINGS TESTS
Testing Continuity
There should not be any continuity between these two wind-
ing groups. Test between terminal #3
and tenninal #6. If con-
tinuity exists, there is a short in the windings.
There also should be no continuity between the terminals and
the generator case (ground).
MAIN STATOR
WINDING LEADS
TESTING CONTINUITY
BETWEEN THE TWO
WINDING GROUPS
TESTING CONTINUITY
EACH TERMINAL TO
CASE GROUND
