2. Components
2.1 Chassis
2.1
Chassis

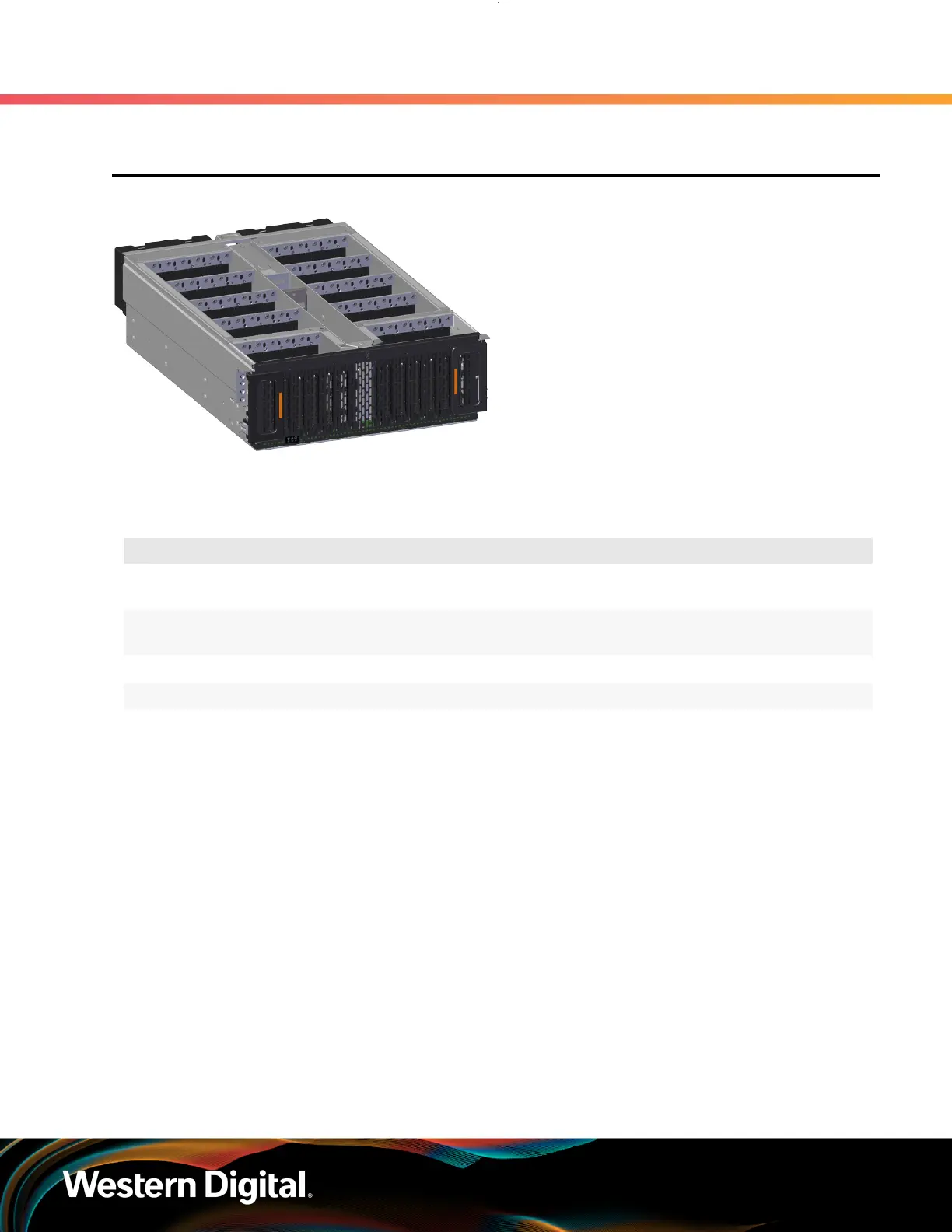

Figure 14: Ultrastar Data60 Chassis
The chassis is the primary housing that contains
and connects all of the system components of the
Ultrastar Data60 . The chassis is comprised of the
drive bay that contains all of the system data storage
drives and a number of other bays that contain the
major system components, such as the PSUs and
IOMs. Other system components are attached to
the exterior of the chassis, such as the rear fans and
rails to provide system cooling andrackmounting
capability. The chassis also houses the baseboard,
which is mounted inside the bottom of the chassis
and is the primary data pathway that connects all of
the enclosure's system components. The chassis has
internal backflow preventers to prevent hot air from
re-entering the enclosure.
2.1.1
Chassis Specifications
Specification Value
Dimensions 447 mm (W) x 807 mm (L) x 172.7 mm (H) /
17.6 in. (W) x 31.77 in. (L) x 6.8 in. (H)
Part Number 1EX0443 (dual IOMs) /
1EX0442 (single IOM)
Hot Swappable? No
Weight 20 kg / 44 lbs
