User Guide
2. Components
2.6 Rails
2.6
Rails

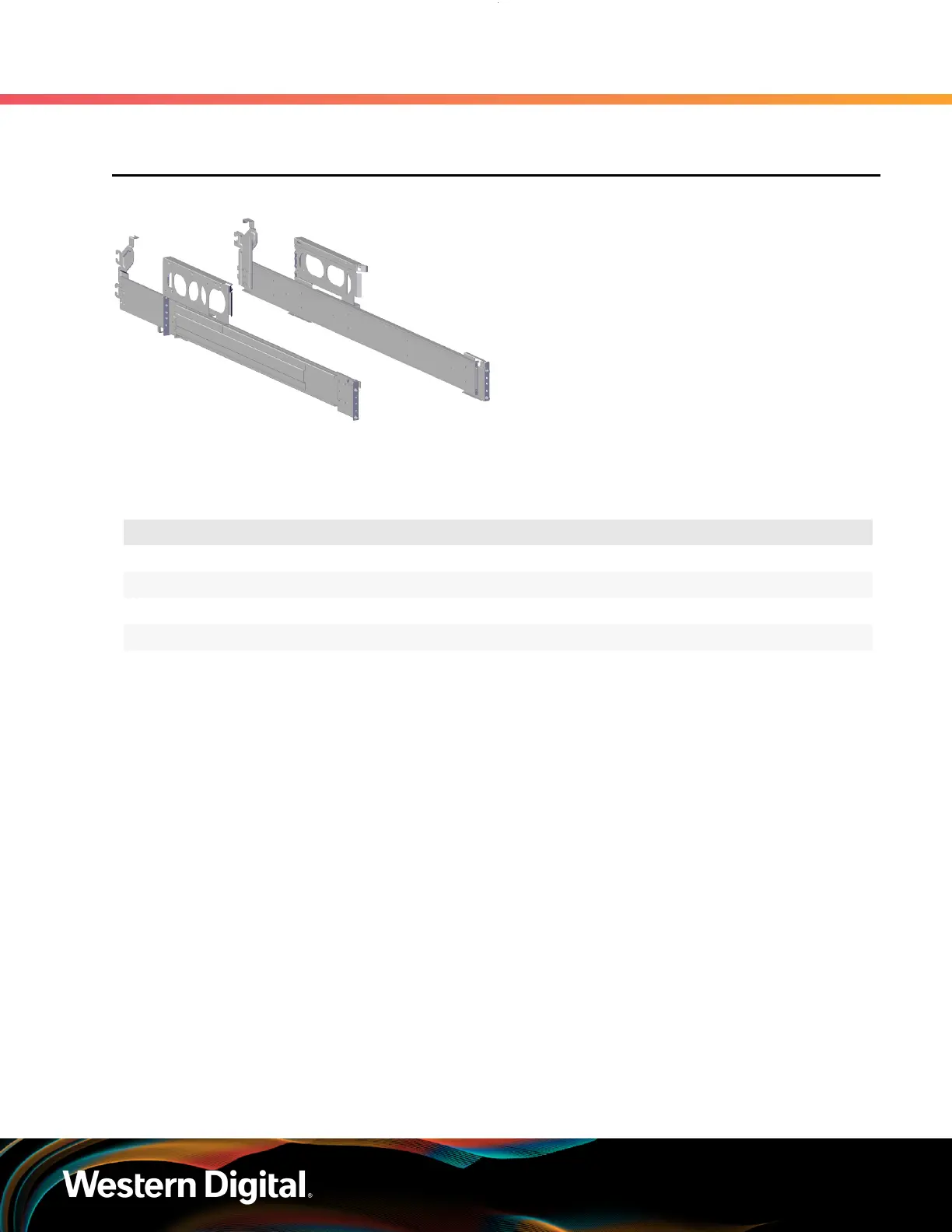

Figure 25: Ultrastar Data60 Rails
The Ultrastar Data60 is installed into a rack using a
toolless-attach rail system. Each rail is a two-piece
assembly, with one rail that attaches directly to
the chassis (inner rail) and another (outer rail) that
attaches to the rack. The inner rail comes nested
inside the outer rail and can be accessed by sliding
it out of the outer rail. The outer rails attach to the
rack and receive the chassis to support it inside
the rack. The outer rails attach to vertical rack rails,
which should be set between 24 in.-32 in.. The
toolless design allows an installer to attach the
rails to a rack without any tools, which simplifies
installation. Once they are attached, they can be
secured with the included M5 screws and washers.
2.6.1
Rails Specifications
Specification Value
Length 1028.7 mm / 40.5 in.
Part Number 1EX0436
Hot Swappable? No
FRU or CRU? CRU
Weight 6.07 kg total (3.03 kg per rail) / 13.4 lbs. total (6.7 per rail)
46
