Western Digital Ultrastar Data60 - Rails Layout

User Guide
2. Components
2.6 Rails
2.6.2 Rails Layout

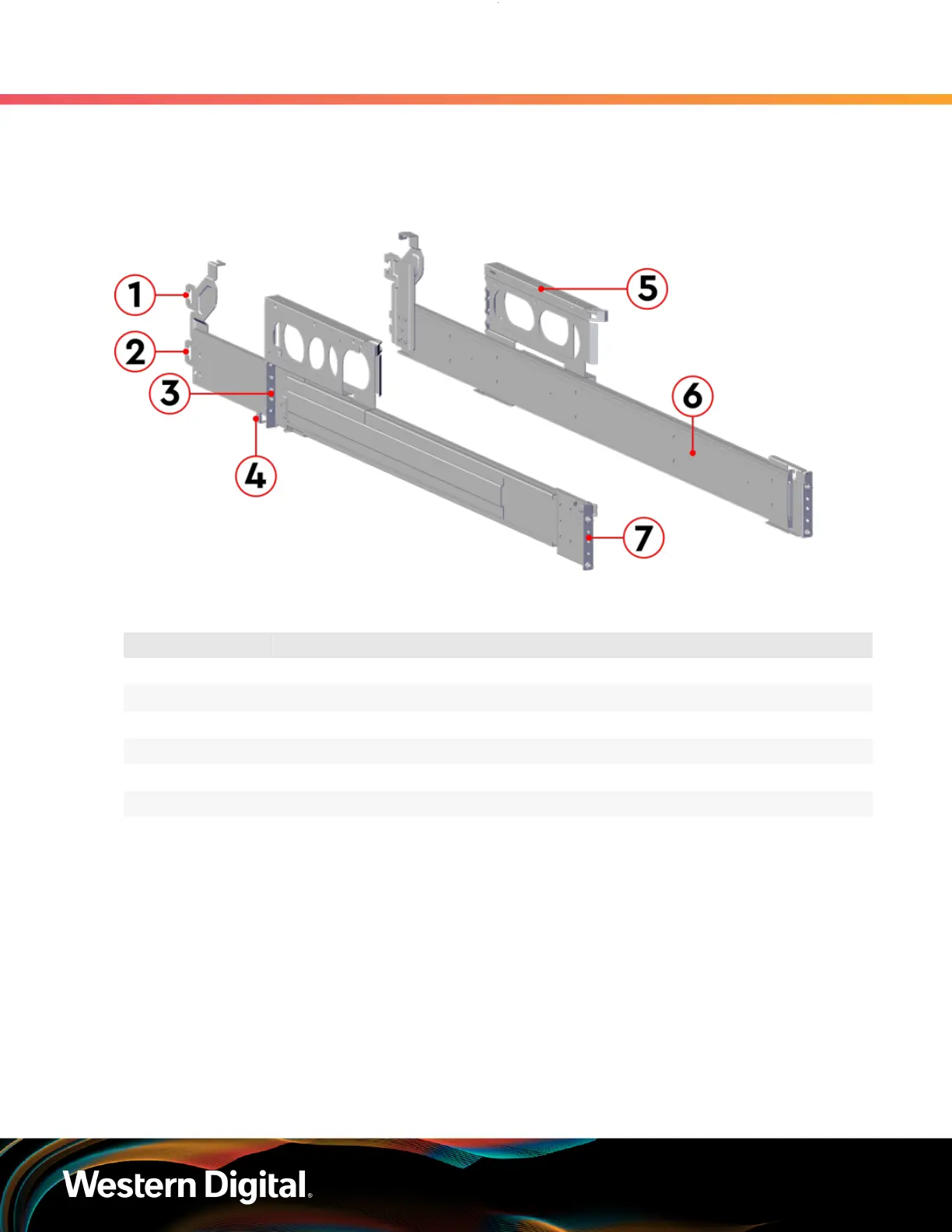

Figure 26: Rails Component Locations
Table 41: Rails Component Descriptions
Number Features
1 Upper CMA Connector
2 Lower CMA Connector
3 Rear Rack Mounting Bracket
4 Rear Latch Release
5 Rear Cover Alignment Bracket
6 Inner Rail
7 Front Rack Mounting Bracket and Latch Release
