Western Digital Ultrastar Data60 - Chassis Layout

User Guide
2. Components
2.1 Chassis
2.1.2 Chassis Layout

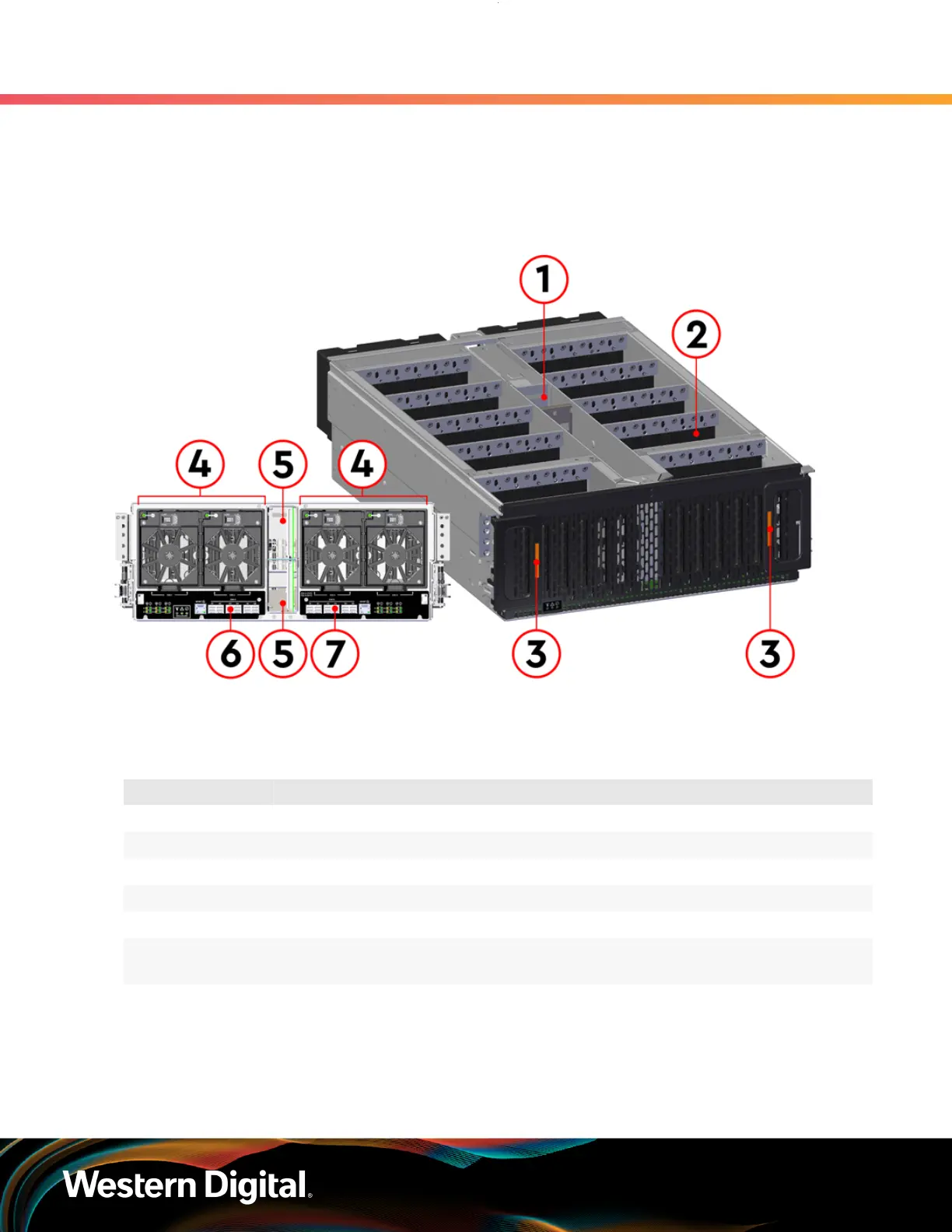

Figure 15: Chassis Component Locations
Table 36: Chassis Component Descriptions
Number Feature
1 IOM and IOM Fan Bay
2 Drive Bays
3 Chassis Handles
4 Rear Fans Bays
5 PSU Bays
6 IOM A Dual HD-Mini SAS Ports (x6)
1GB Ethernet Port (x1)
7 IOM B Dual HD-Mini SAS Ports (x6)
1GB Ethernet Port (x1)
36
