3.5 IOM Fan Replacement
Figure 54: Chassis Handle Operation
Step 2 : Remove the IOM Fan.
a. With one hand, grasp around the center square of the fan housing as shown in the following
image.
b.
Pinch the IOM fan housing to release the latching mechanism and pull it straight out from the
chassis.

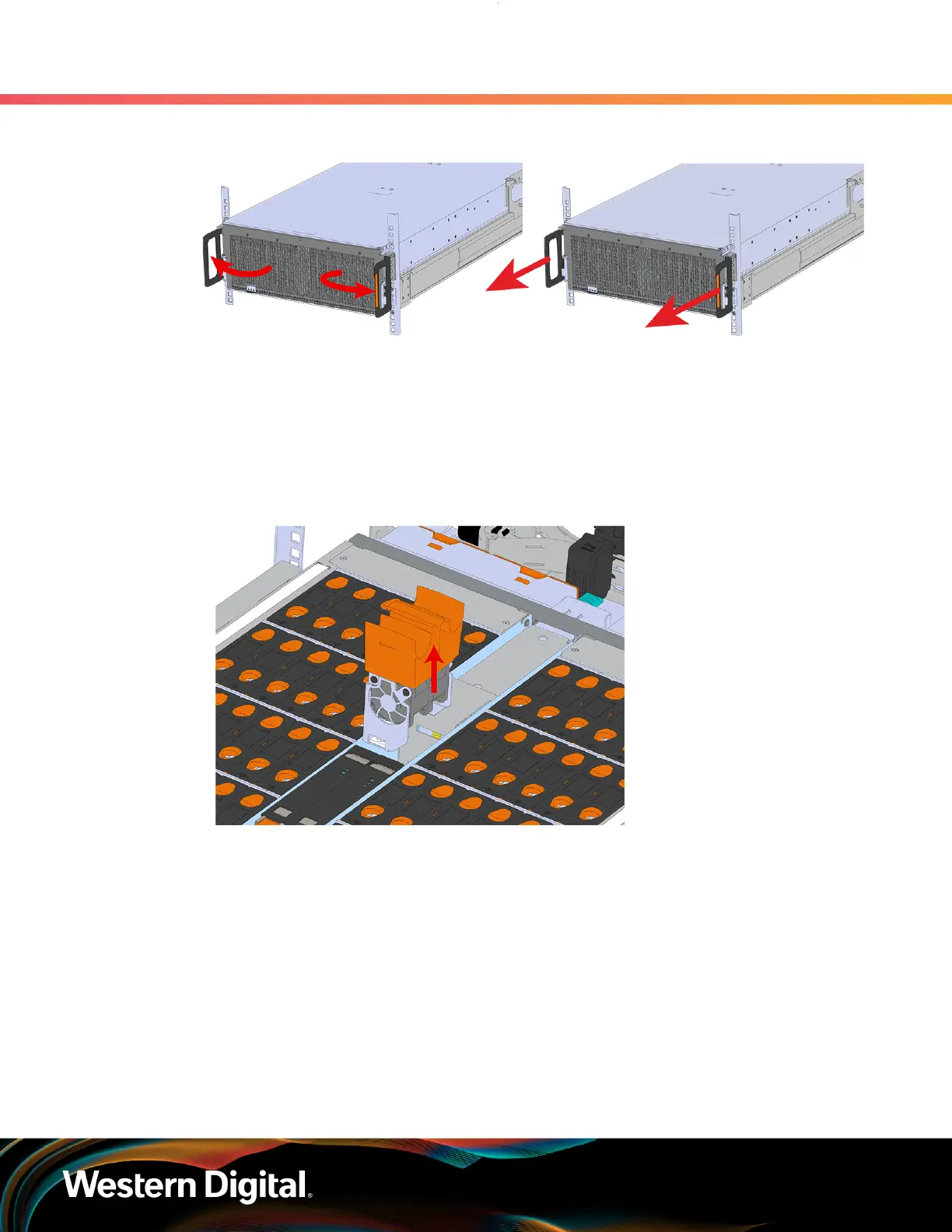

Figure 55: Removing IOM Fan
Step 3 : Install the IOM Fan.
a. Align the IOM Fan as shown in the following image.
