4-2
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. To Remove the dispenser drawer:
a) pull the drawer all the way out and
depress the tab labeled "push" to remove
drawer.
5. To remove the console:
a) Remove the top.
b) Remove 2 screws at both ends on the top
of the console.
c) Remove 2 T25 Torx head on either side of
drawer opening.

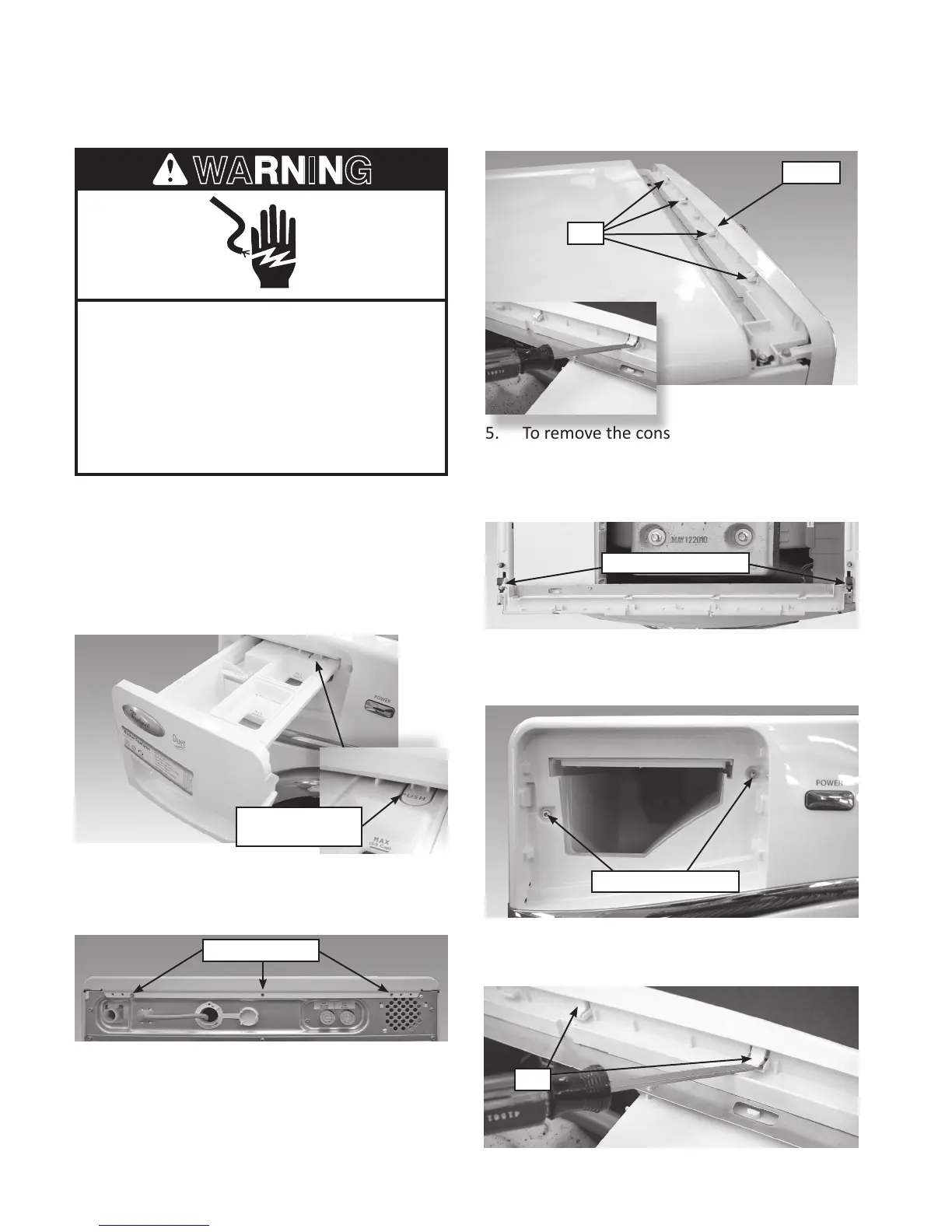

REMOVING THE DISPENSER DRAWER, TOP AND
CONSOLE ASSEMBLY
d) Lift the top edge of the console and
unhook it from the holder tabs.
Top Cover Screws
Remove These Screws
View is top front
Dispenser Drawer
Release Tab
Remove These Screws
b) Pull back on the top.
Tabs
Console
4. To remove the top:
a) Remove the three 1/4" screws from the
rear top cover of the washer.
Tabs
To Next Page
