Whirlpool WFW94HEX - Removing the Eco Valve

4-15
REMOVING THE DRAIN PUMP
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
REMOVING THE ECO VALVE

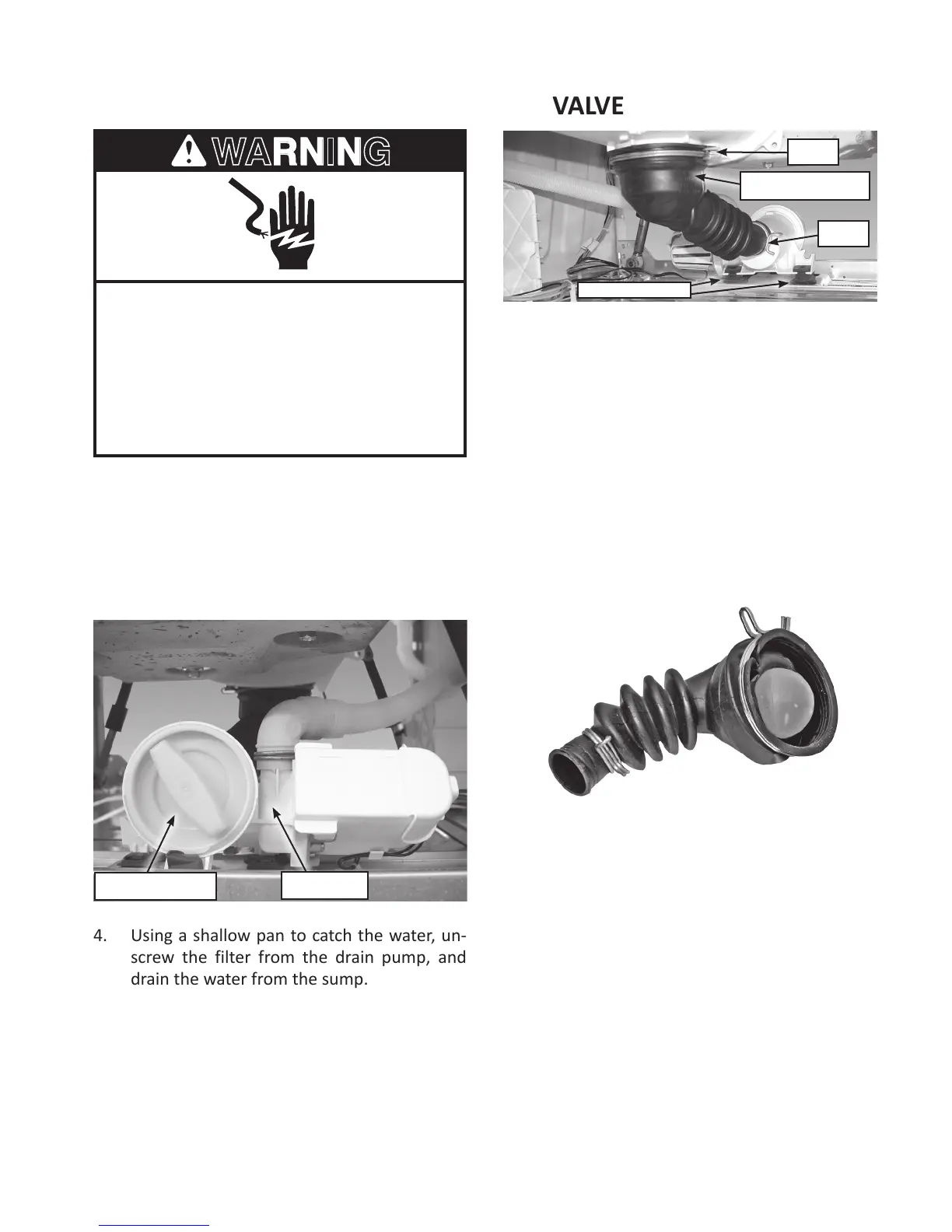

4. Using a shallow pan to catch the water, un-
screw the filter from the drain pump, and
drain the water from the sump.
Drain Pump
Drain Pump Filter
Pump-To-Tub Hose
Clamp
Clamp
Rubber Isolators
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the front panel, see ("REMOVING THE
DOOR SWITCH ASSEMBLY FRONT PANEL AND
BELLOWS")
5. Pull the pressure hose off the air trap that
is connected to the pump-to-tub/ECO valve
hose.
6. Loosen the clamps at both ends of the
pump-to-tub hose, and pull the hose/ECO
valve off the tub and drain pump.
ECO Valve
REASSEMBLY NOTE: When you reconnect the
hoses, align their tab(s) with the marks on the
drain pump.
