Whirlpool WFW94HEX - Removing the Vent; Fan

4-17
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall.
4. Remove the top panel from the washer
("REMOVING THE DISPENSER DRAWER, TOP
AND CONSOLE ASSEMBLY"
for the procedure).
5. Remove 2 screws from the back panel at the
left rear corner of the washer.
6. Disconnect fan connector.

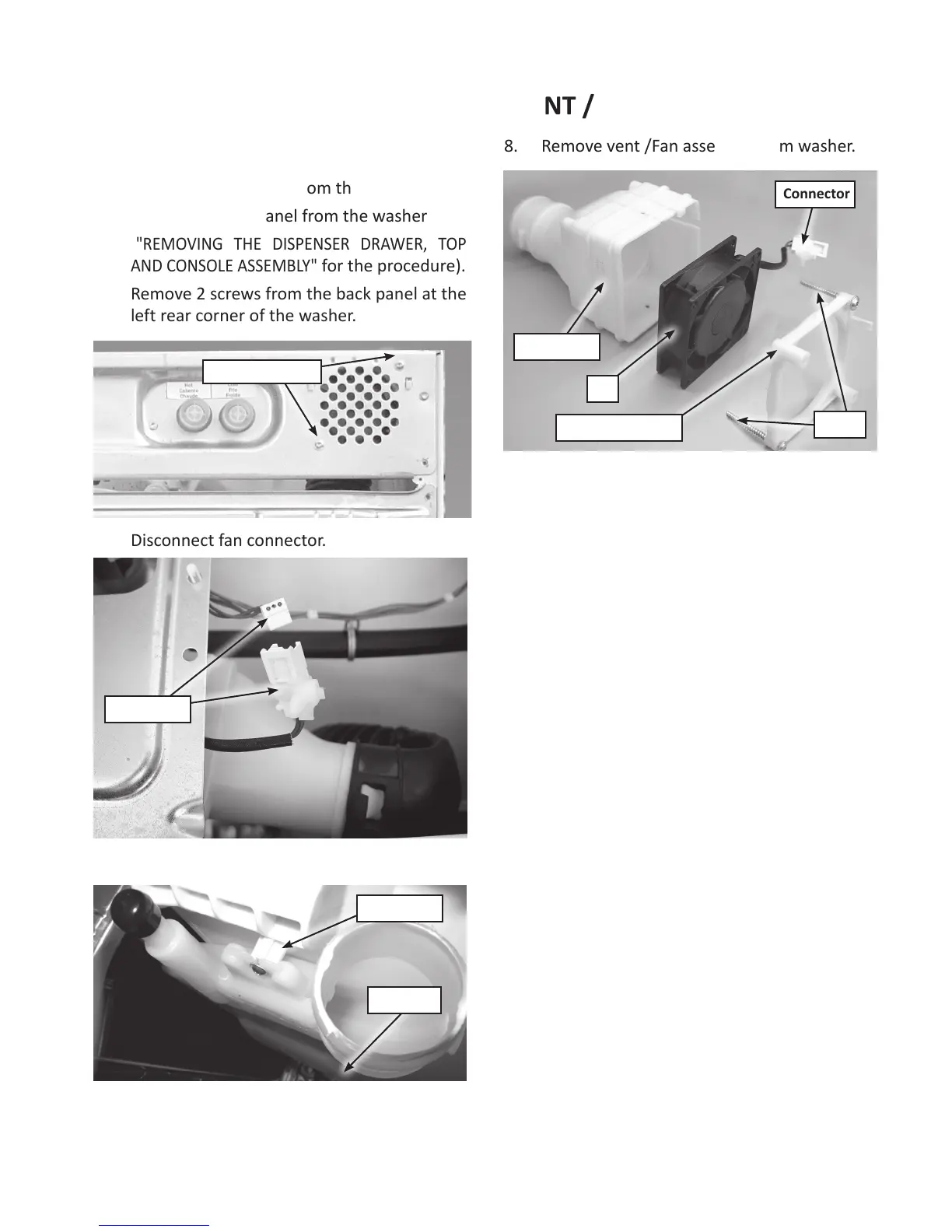

REMOVING THE VENT / FAN
Remove Screws
Connectors
Connector
Fan Housing
Vent Tube
7. Remove vent tube from fan housing.
8. Remove vent /Fan assembly from washer.
Fan Housing
Fan
Mounng Bracket
Screws
