4-16
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall.
4. Remove the Top
("REMOVING THE DISPENSER
DRAWER, TOP AND CONSOLE ASSEMBLY"
) and
the hex-head screws (12) (arrows) from the
rear panel.

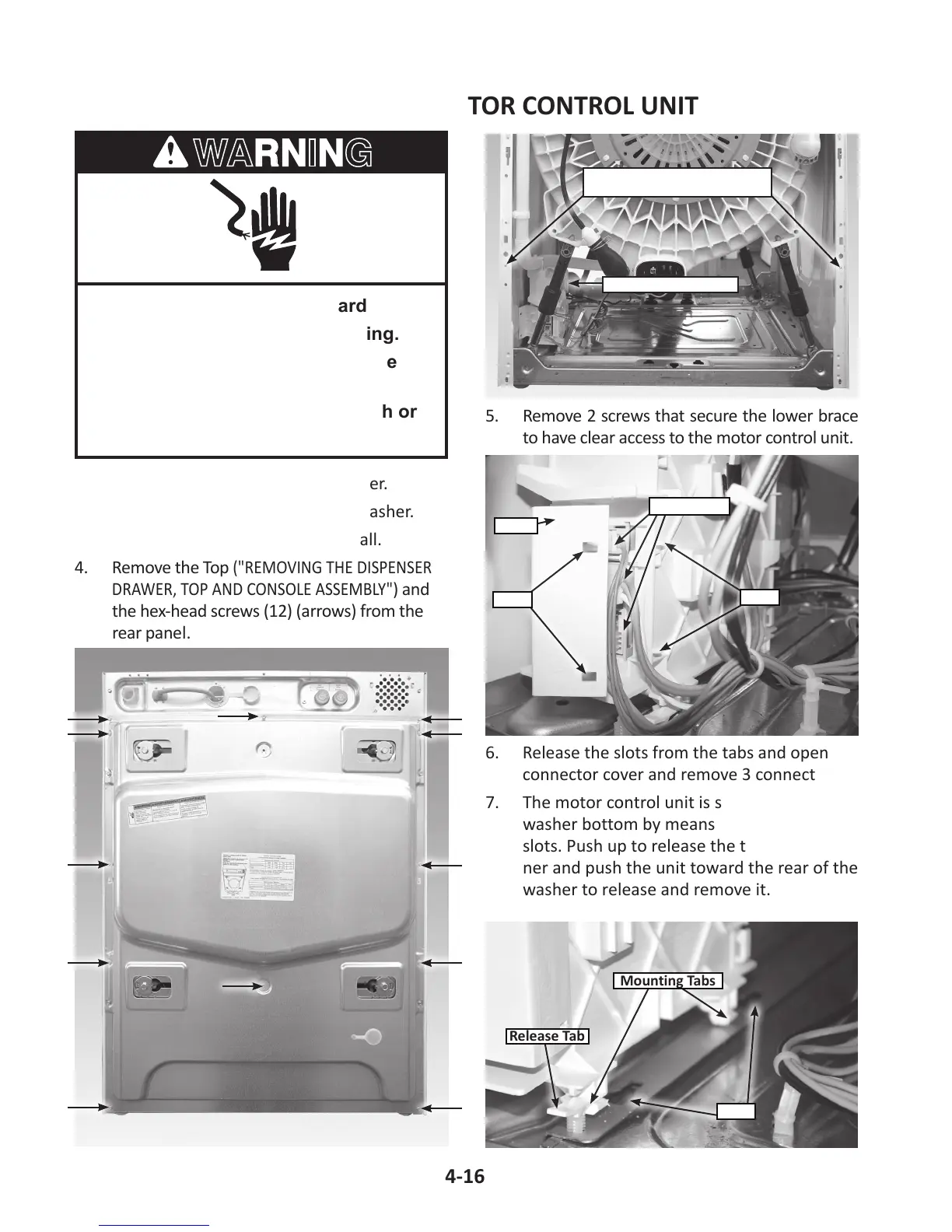

REMOVING THE MOTOR CONTROL UNIT
5. Remove 2 screws that secure the lower brace
to have clear access to the motor control unit.
6. Release the slots from the tabs and open the
connector cover and remove 3 connectors.
7. The motor control unit is secured to the
washer bottom by means of 4 tabs and
slots. Push up to release the tab at the cor-
ner and push the unit toward the rear of the
washer to release and remove it.
Motor Control Unit
Remove Screws at these locations
to detach lower support bracket
Tabs
Connectors
Slots
Cover
Mounting Tabs
Release Tab
Slots
To Next Page
