Whirlpool WFW94HEX - Removing the Detergent Dispenser Motor

4-11
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the top cover from the washer
("REMOVING THE DISPENSER DRAWER, TOP AND CONSOLE
ASSEMBLY" for the procedure).
WARNING

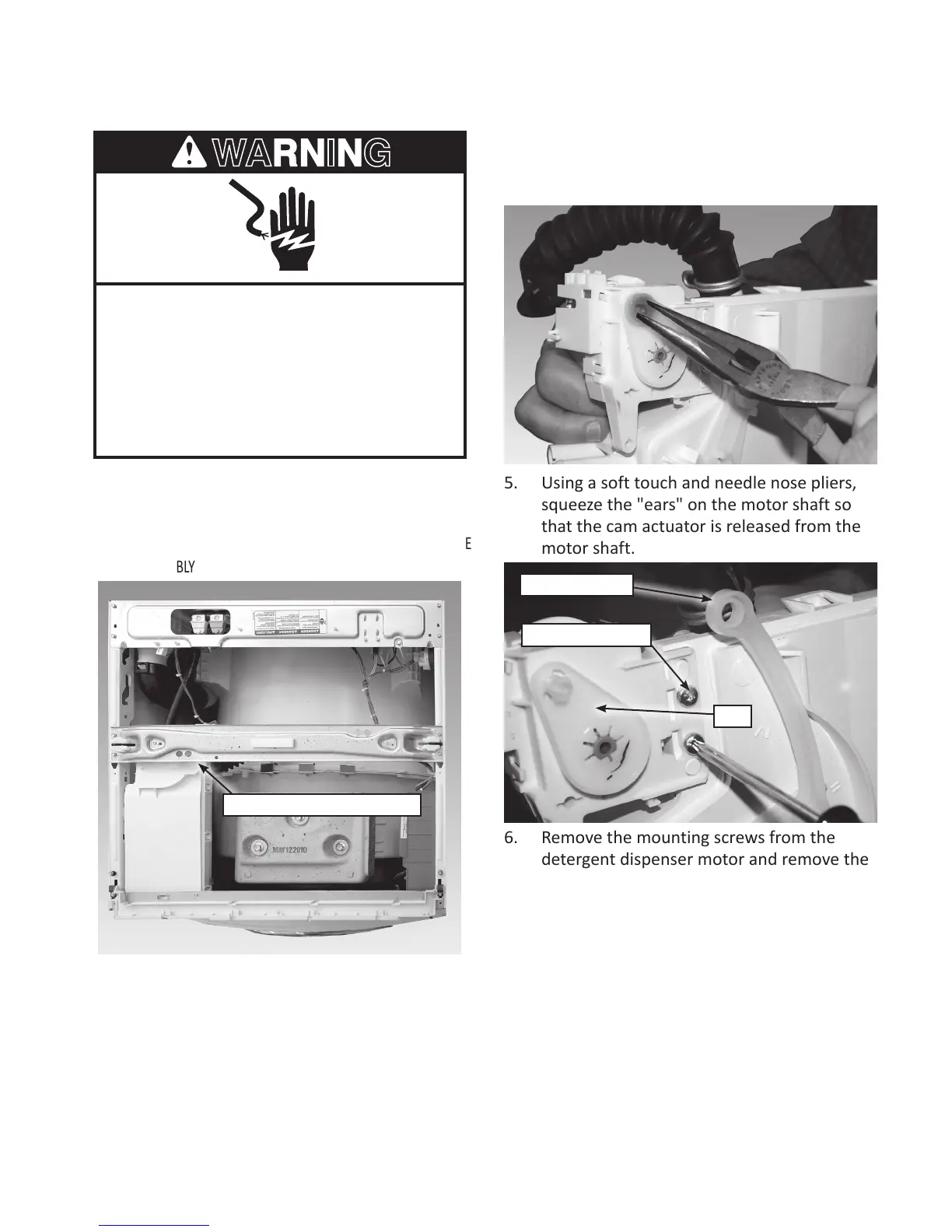

REMOVING THE DETERGENT DISPENSER MOTOR
4. Lift the locking tabs and remove the two
wire connectors from the detergent dis-
penser motor terminals.
Detergent Dispenser Motor
5. Using a soft touch and needle nose pliers,
squeeze the "ears" on the motor shaft so
that the cam actuator is released from the
motor shaft.
6. Remove the mounting screws from the
detergent dispenser motor and remove the
motor.
Cam Actuator
Cam
Mounng Screw
