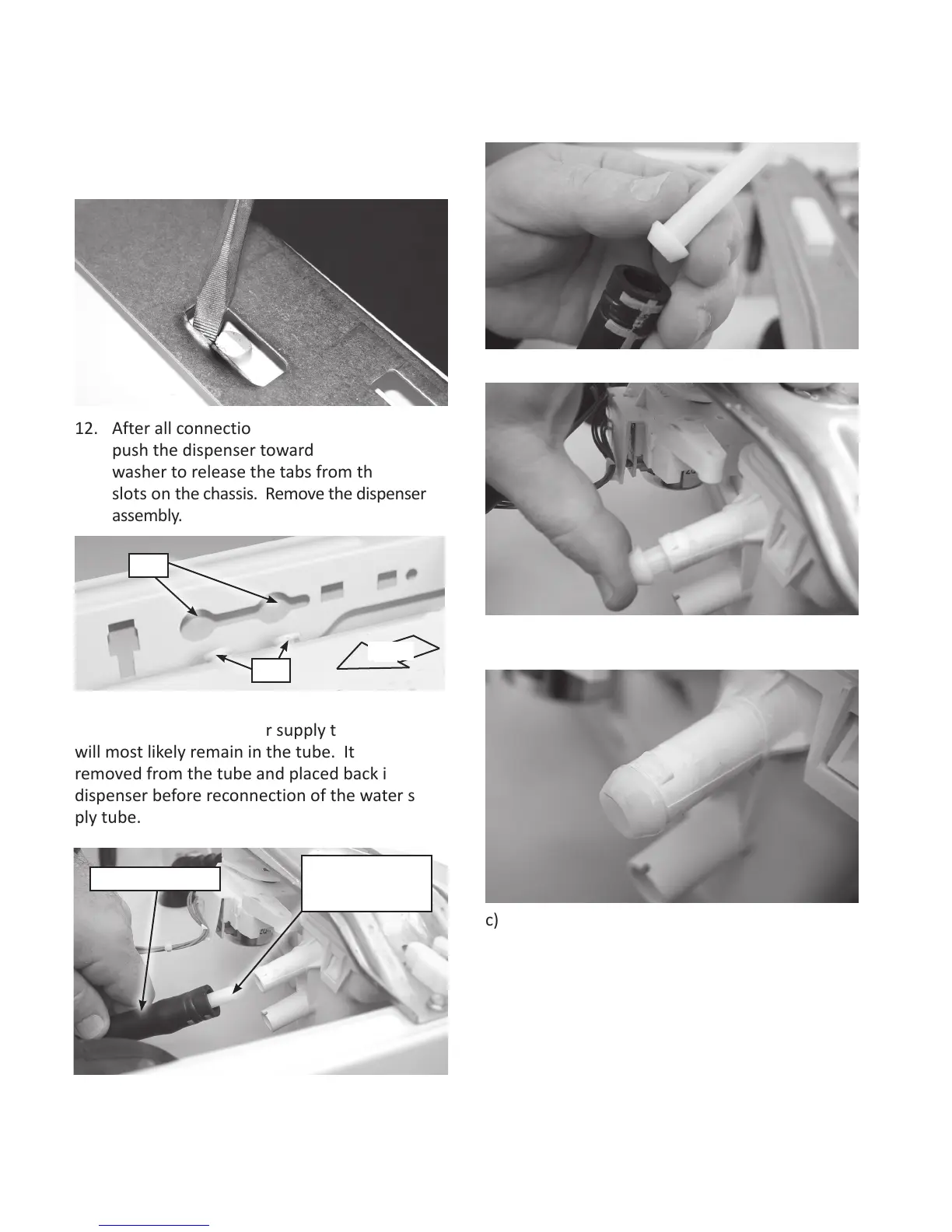

REMOVING THE DETERGENT DISPENSER ASSEMBLY (continued)
11. With a flat blade screwdriver, release the
tab securing the detergent dispenser to the
front support.
a) Remove the nozzel from the water supply
12. After all connections have been removed,
push the dispenser toward the rear of the
washer to release the tabs from the key
slots on the chassis. Remove the dispenser
assembly.
Slots
Tabs
Push
Reassembly Note:
While removing the water supply tube the nozzel
will most likely remain in the tube. It must be
removed from the tube and placed back into the
dispenser before reconnection of the water sup-
ply tube.
b) Replace the nozzel into the dispenser.
c) Varify that the nozzel is fully seated into the
water supply tube.
Once the nozzel is in place and seated all the
way, Replace the water supply tube and the
clamp.
Water Supply Tube
Nozzel remains in
the water supply
tube aer removal
To Next Page
