4-21
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall.
4. Remove the detergent dispenser
assembly ("REMOVING THE DETERGENT
DISPENSER ASSEMBLY" for the procedure).
5. Loosen the clamp and remove the main water
feed tube from the detergent dispenser.
6. Pull the free end of the main water feed tube
from the bellows.

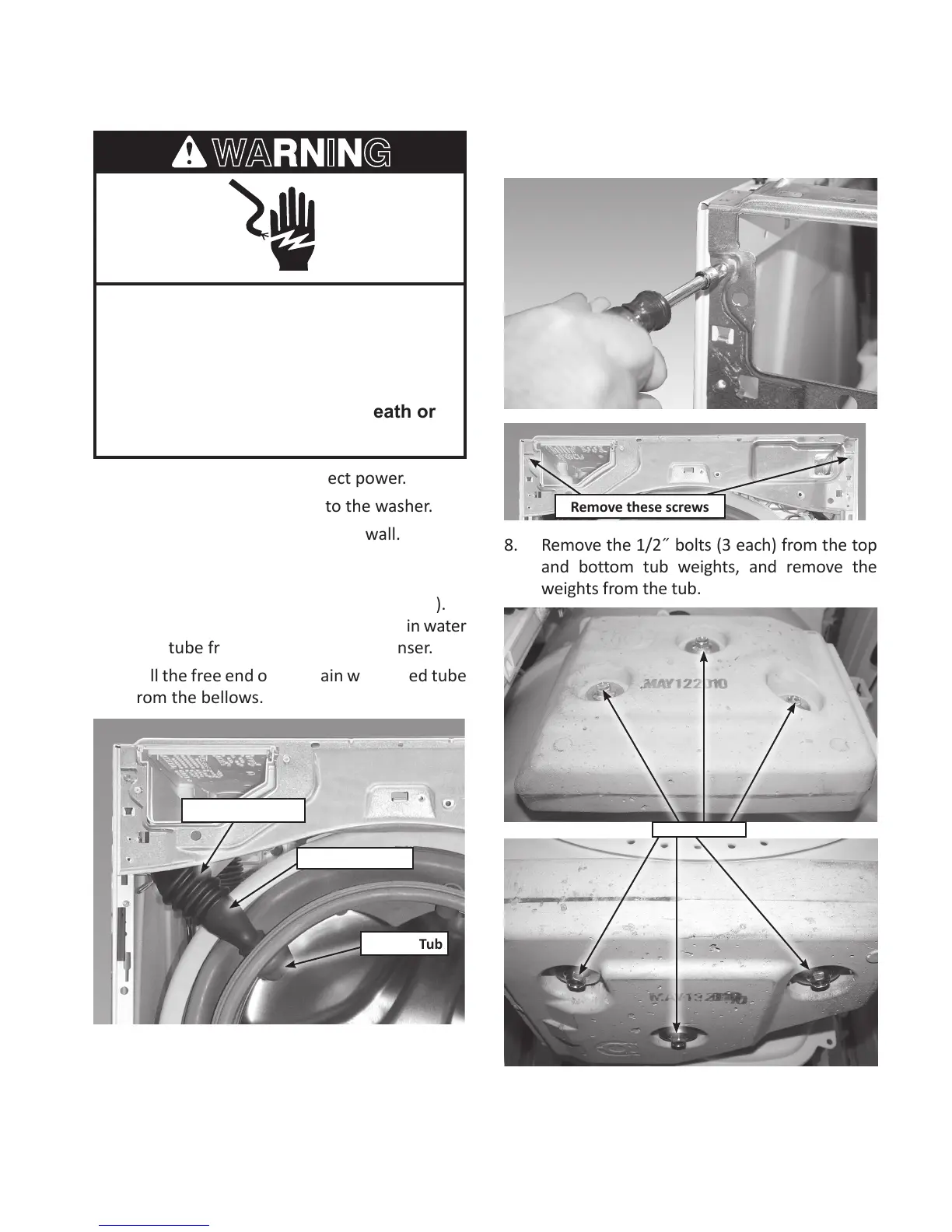

REMOVING THE TUB ASSEMBLY
7. Remove the 2 hex-head screws from the
front frame and remove the frame.
8. Removethe1/2˝bolts(3each)fromthetop
and bottom tub weights, and remove the
weights from the tub.
Tube To Dispenser
Water Feed Tube
Tube To Tub
Remove these screws
1/2" Bolts
To Next Page
