Will Burt POSITIONIT MM233TX2TXRX2 - Controller; Figure 1-4 Default Joystick Controller

To Next Page

To Previous Page

POSITIONIT POSITIONERS

1-6 PM-01011-A

October 2023

1.6.2 Controller

The default joystick controller (P/N: 5098901) (Figure 1-4):

• Controls pan and tilt functions

• Is Pelco D compatible

• Has a joystick, LCD Screen and a keyboard

• Has programmable presets

• Has programmable electronic limits

• Has speed control

• Ships with the controller manual

• Is not designed to handle inclement weather and should be kept in a protected

environment

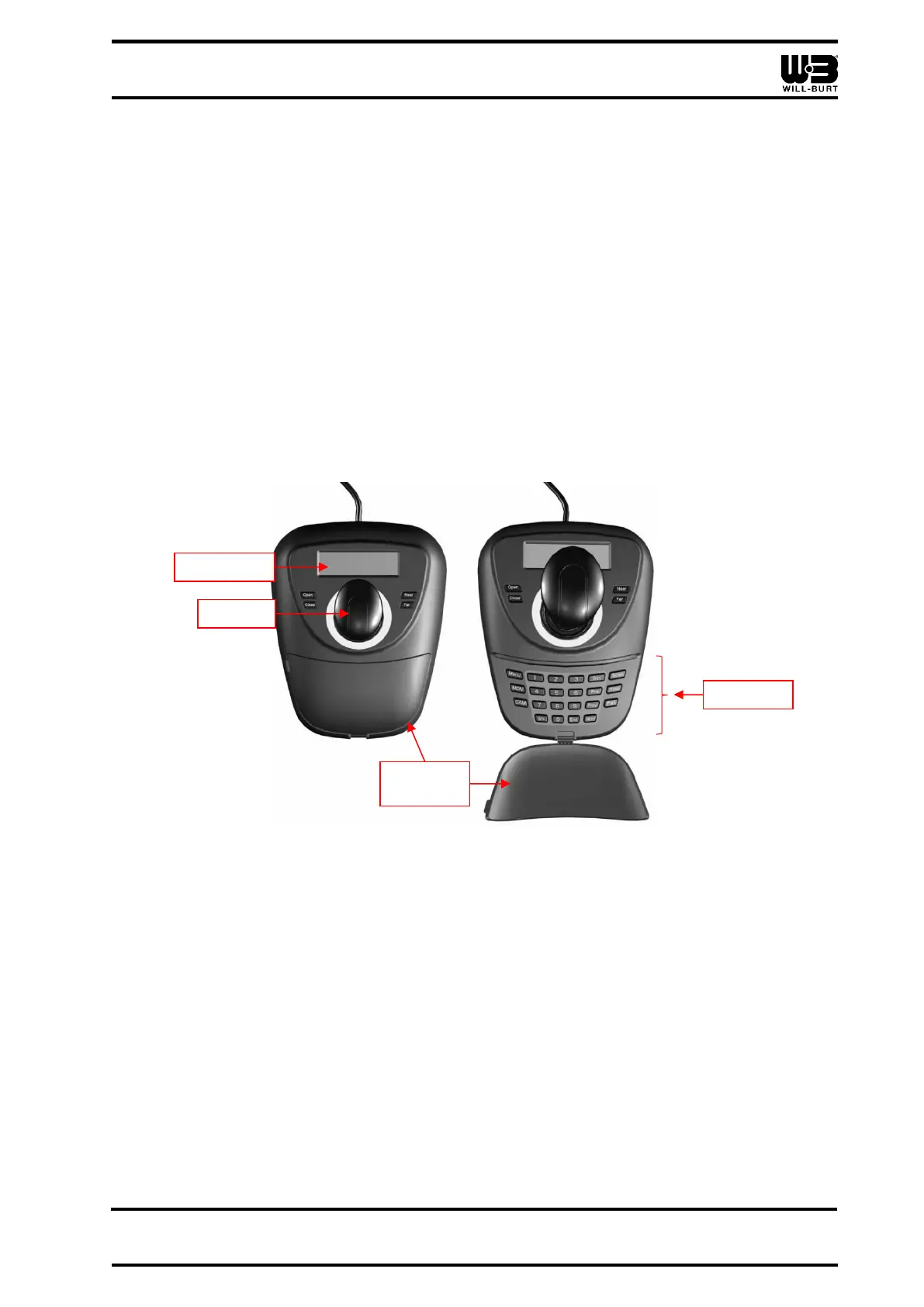

Figure 1-4 Default Joystick Controller (Left: With Keyboard Cover On. Right: With Keyboard Cover Off.)

Joystick

LCD Screen

Keyboard

Cover

Main Page
