POSITIONIT POSITIONERS
2-8 PM-01011-A
October 2023
10. Secure plug plate and its gasket at the side egress where the removable plug had
previously been installed from the factory (Figure 2-10). If the gasket is not properly
installed, the positioner will leak and become damaged voiding the warranty.

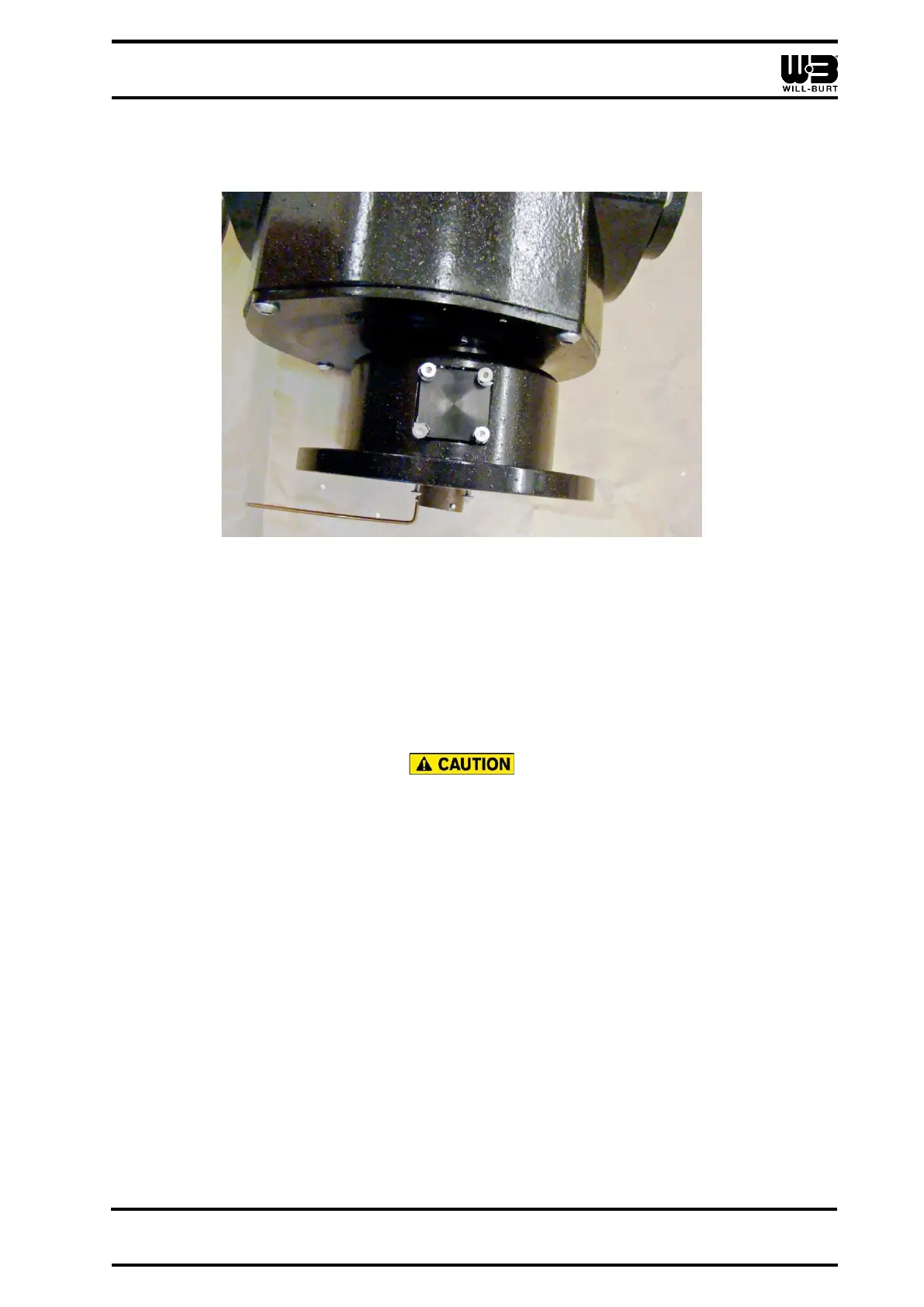

Figure 2-10 Secure the Plug Plate and Gasket to the Side Egress
11. Check to ensure both plug locations are properly sealed. If either plug location is not
properly sealed, the positioner will leak and become damaged voiding the warranty.
2.6.2 Connecting Power and Controls
This section describes how to connect the power and controls to the system.
Equipment Damage! Ensure the connections are made properly to prevent water ingress
into the positioner through the connections. Should water enter the positioner, extreme
problems can occur.
Depending on the configuration of your system, power and controls can be hooked up
several different ways. Select the appropriate method for your system and wire accordingly:
• Powered with 12 VDC
• Powered with 24 VDC
• Powered with 120 VAC (50 or 60 Hz) or 240 VAC (50 or 60 Hz)
