Will Burt POSITIONIT MM233TX2TXRX2 - Positioner Power Supply; Barrel Connector (2.1 MM); Figure 1-6 Positioner Power Supply; Figure 1-7 Barrel Connector

POSITIONIT POSITIONERS
1-8 PM-01011-A
October 2023
1.6.4 Positioner Power Supply
The positioner power supply (P/N: 208016) (Figure 1-6) is used in systems using 120 VAC
(50 or 60 Hz) or 240 VAC (50 or 60 Hz) to convert the AC power to 24 VDC input power for
the positioner. The power supply has short circuit, overcurrent, overvoltage, and over
temperature protections. It is an IP67 design and is suitable for dry, damp, or wet locations.

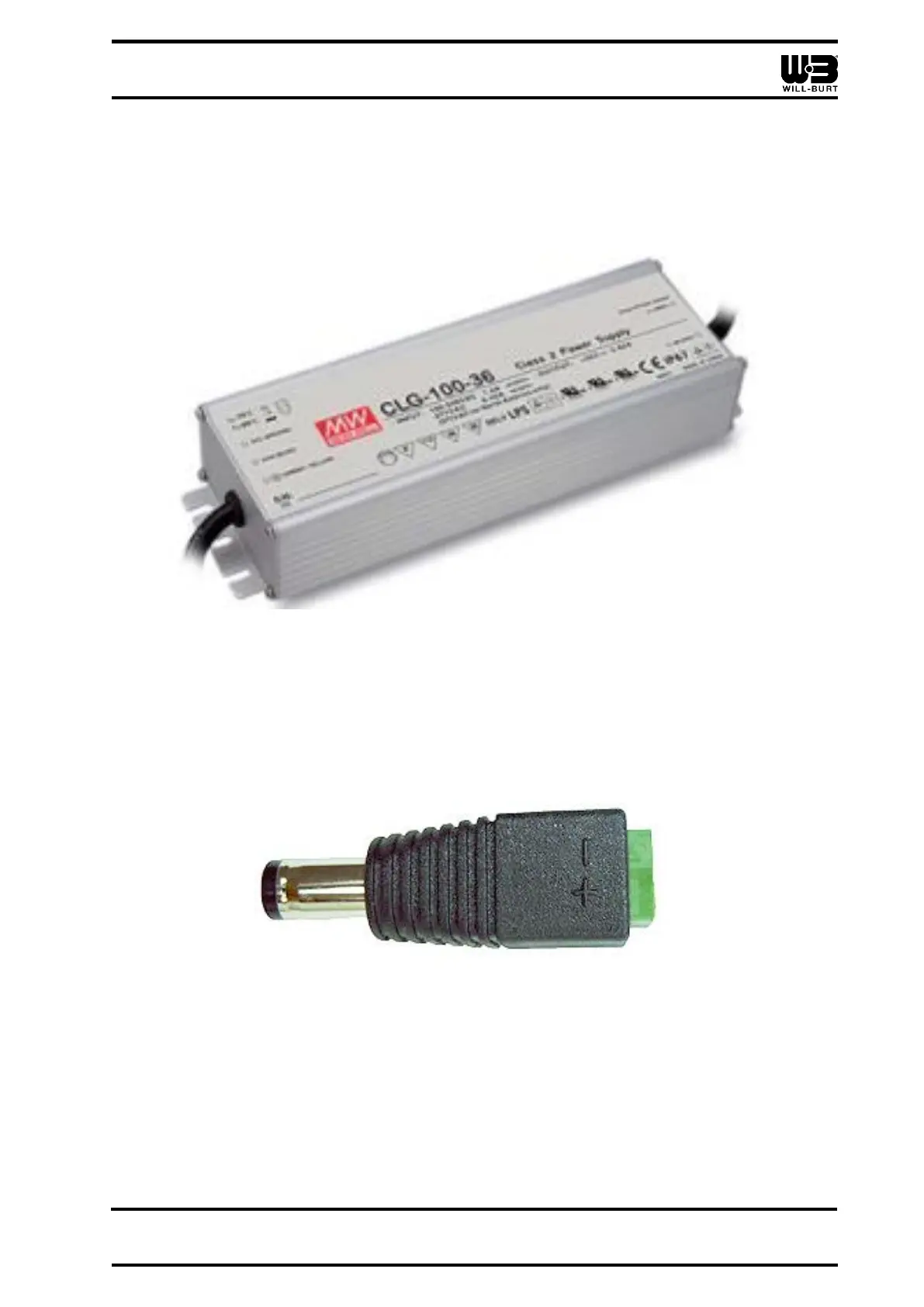

Figure 1-6 Positioner Power Supply
1.6.5 Barrel Connector (2.1 mm)
The 2.1 mm barrel connector (P/N: 5195601) (Figure 1-7) can be used to connect the
controller to the step down converter or 12 VDC power source.
Figure 1-7 Barrel Connector
