POSITIONIT POSITIONERS
PM-01011-A 2-11
October 2023
Powered with 120 VAC (50 or 60 Hz) or 240 VAC (50 or 60 Hz):
The positioner runs on 24 VDC and power other than 24 VDC must be converted to 24 VDC
for the positioner. The default joystick controller (P/N: 5098901) comes with its own power
supply for the VAC input which is transformed to 12 VDC.
If the input power supply is VAC, the system will require:
• A power supply (P/N: 208016) for the positioner
• The existing joystick cable to power the joystick
If the customer is using AC input power and the power supply (P/N: 208016), the customer is
responsible for installing a plug (customer-supplied) based on their region. The power supply
ships with loose wires to connect to the appropriate customer supplied plug.

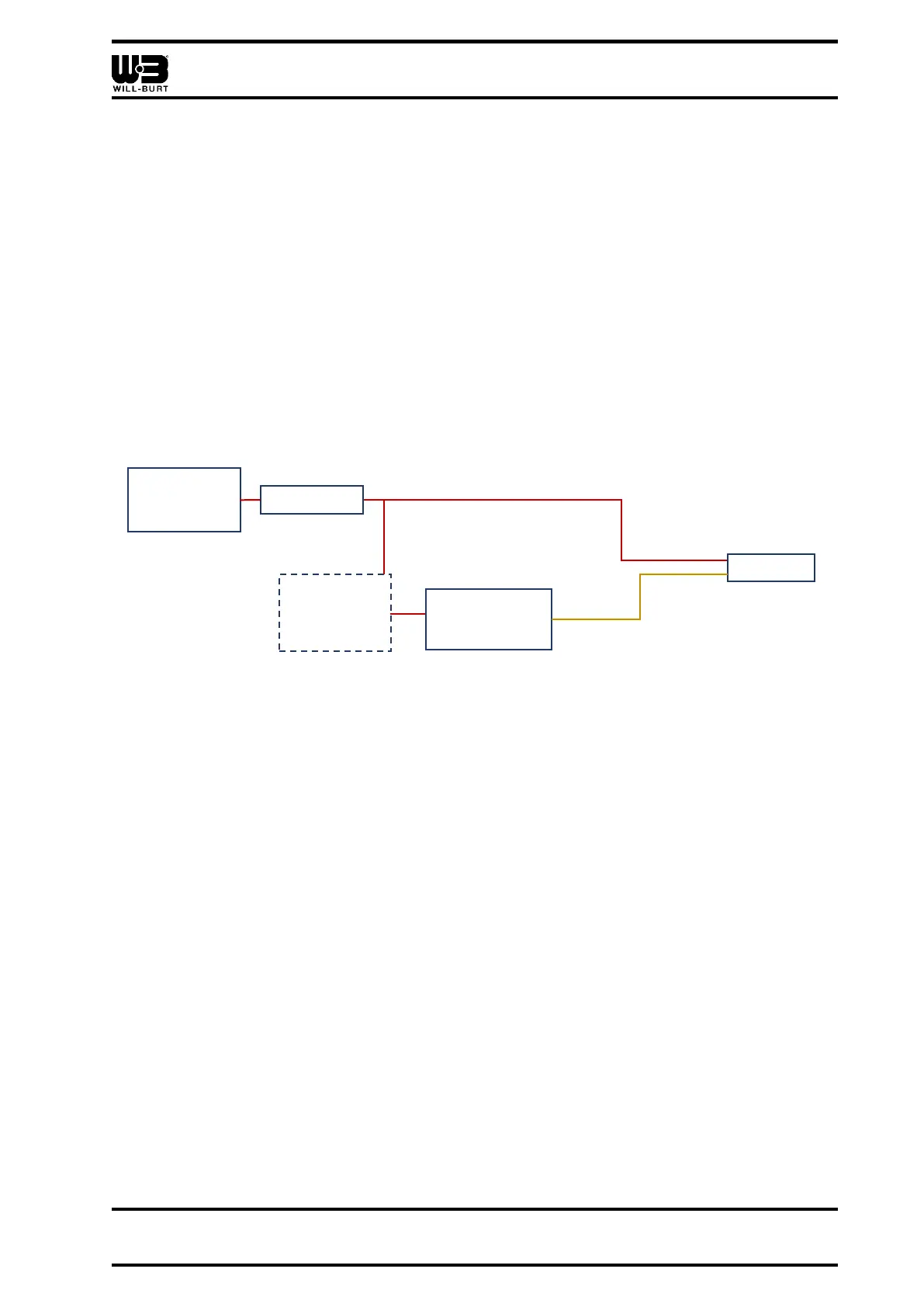

Figure 2-13 provides a quick overview of the wiring for a system powered with AC input.
Figure 2-13 Powered with VAC
To wire the positioner using VAC:
1. Connect the 5-pin plug (attached to the power/data cable) to the positioner.
2. Twist the plug to the right to secure the connection.
3. Run the 22 AWG green (data A) and white (data B) wires from the power/data cable
to the controller.
4. Wire the 16 AWG red (power) and black (ground) wires from the power/data cable
and the controller to the positioner power supply. Run a (2) amp slow blow fuse
(customer supplied) inline between the positioner power supply and the positioner
and controller. An optional step down converter can be run between the controller
and the positioner power supply.
