1.6.3 Power/Data Cable

The power/data cable (Figure 1-5) consists of (2) power wires (16 AWG twisted pair) and (2)

control wires (22 AWG twisted pair). The cable ships with a straight connector (PT06W14-

5S) installed on one end and loose wires on the other end to allow for a Nycoil pull. The end

with the loose wires can be cut if the customer requires a shorter length.

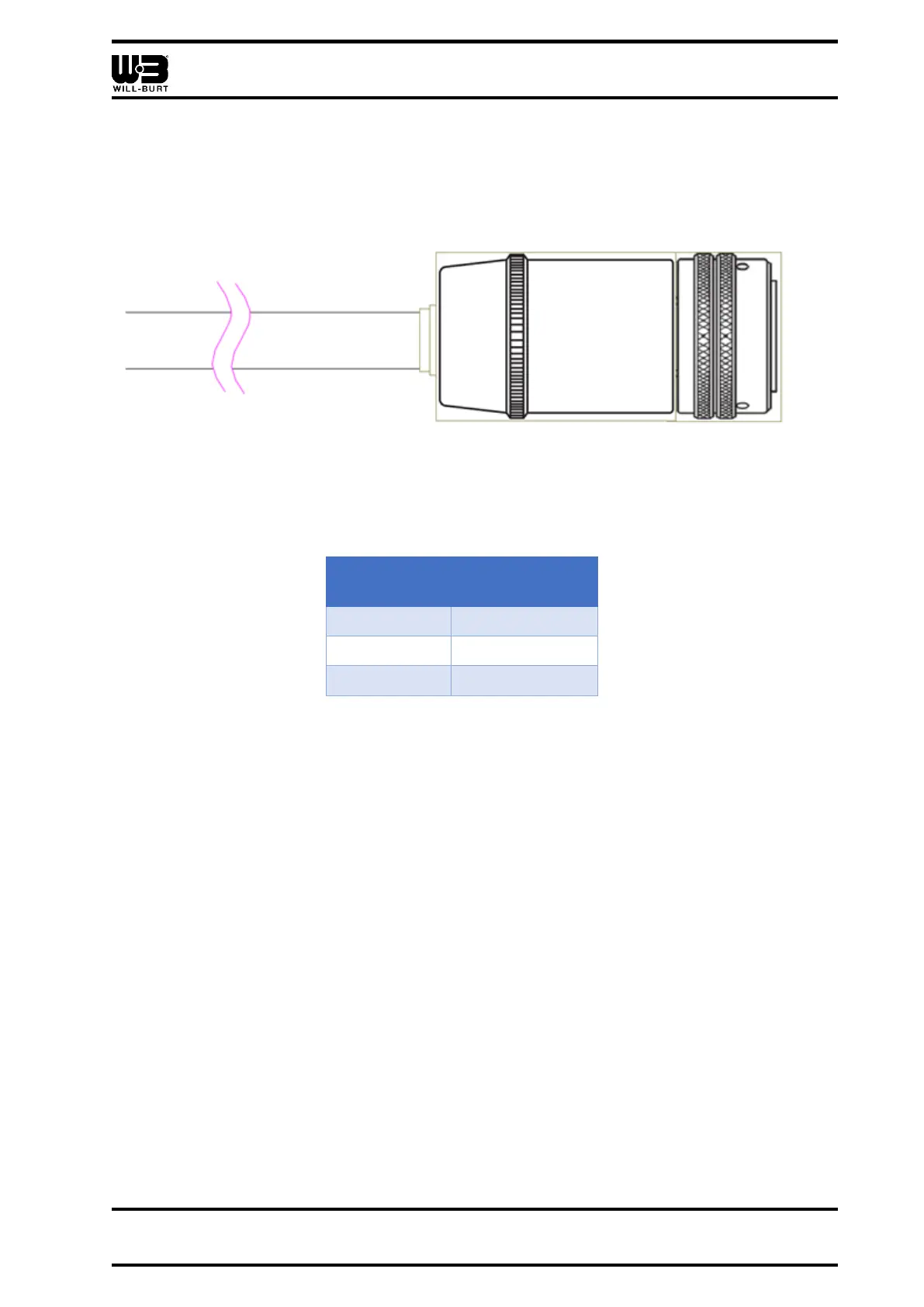

Figure 1-5 Power/Data Cable

Table 1-3 provides the part numbers for the standard cables.

Table 1-3 Standard Cables

Will-Burt

Part Number

Length

5611601

35 ft. (10 m)

5611602

66 ft. (20 m)

5611603

99 ft. (30 m)
